Kong THORIG Stainless Steel Configurable Rigging Plate

Kong THORIG Stainless Steel Configurable Rigging Plate

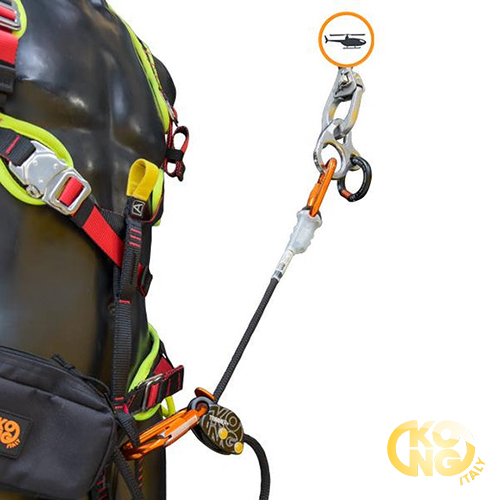

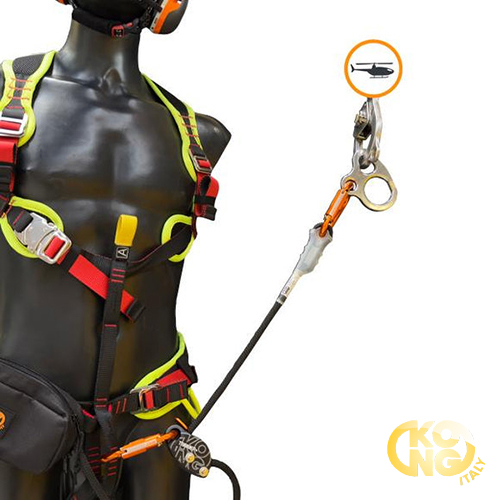

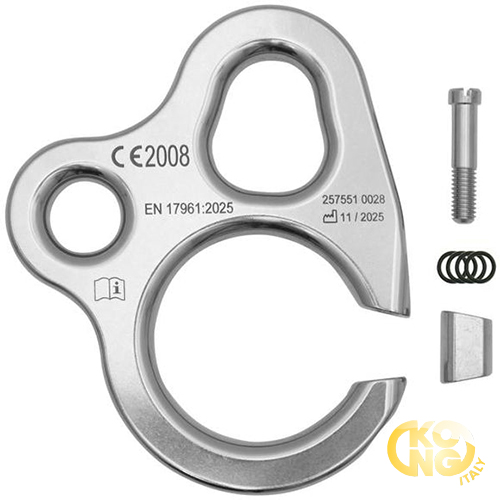

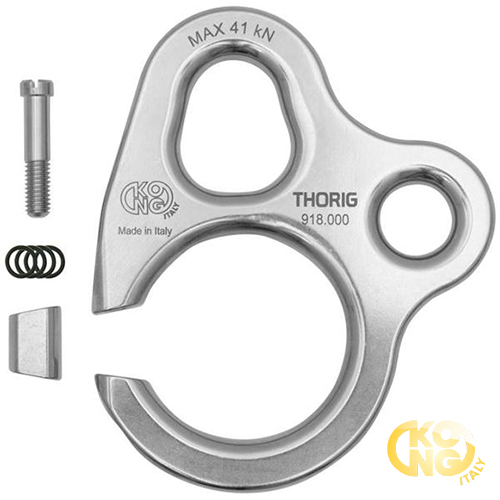

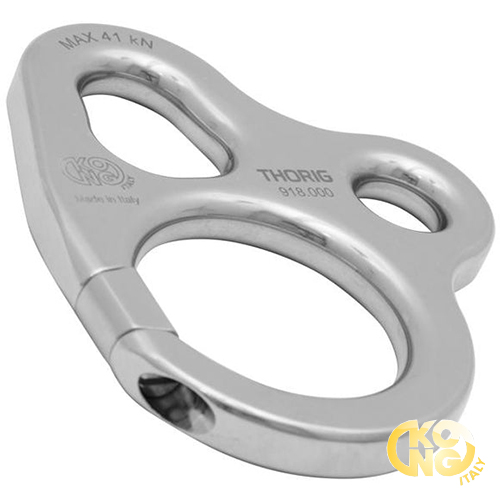

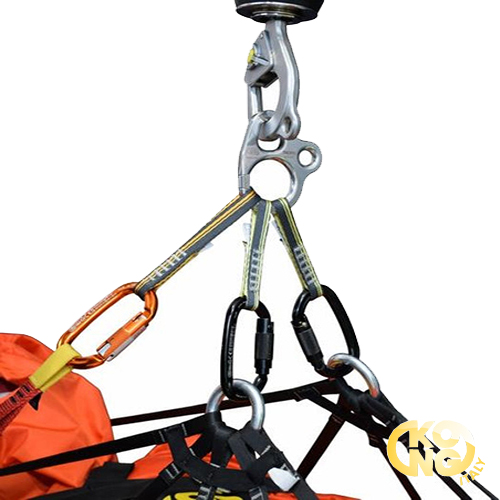

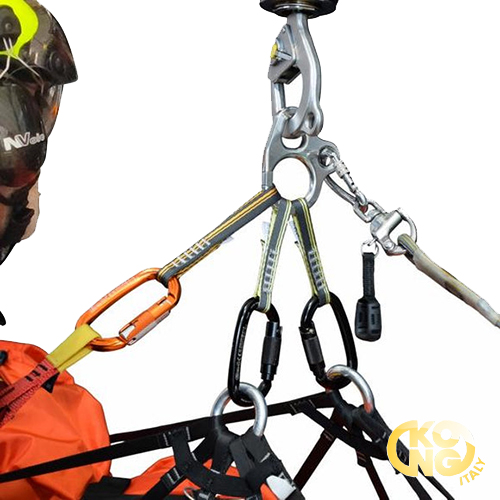

Kong THORIG Configurable Rigging Plate Stainless Steel is designed for helicopter rescue and aerial work applications that require a metal connection between Human External Cargo and the hook. Made from AISI 630 stainless steel, the plate is suitable for use in corrosive environments. Its rounded, textile-friendly hole profiles avoid sharp edges, while the larger circular hole accommodates both textile and metal components. The openable design allows you to replace worn elements and change the configuration as needed.

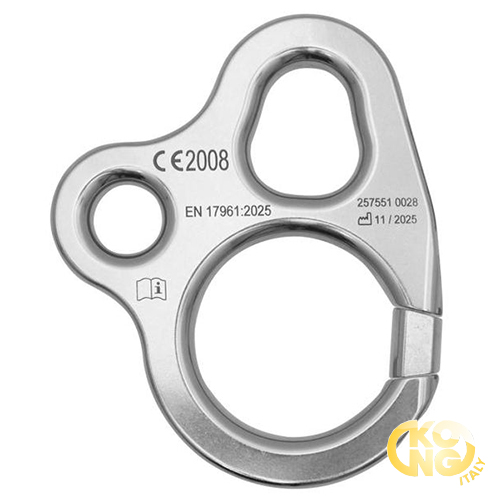

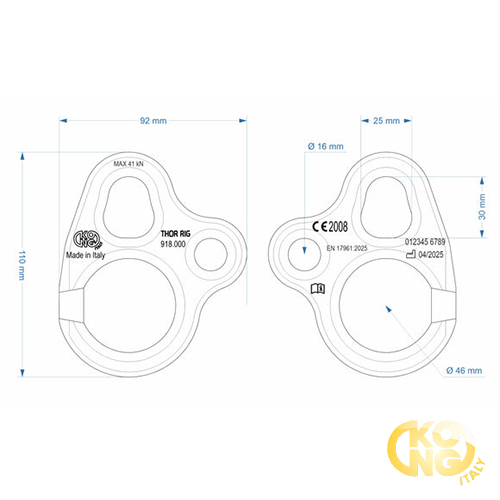

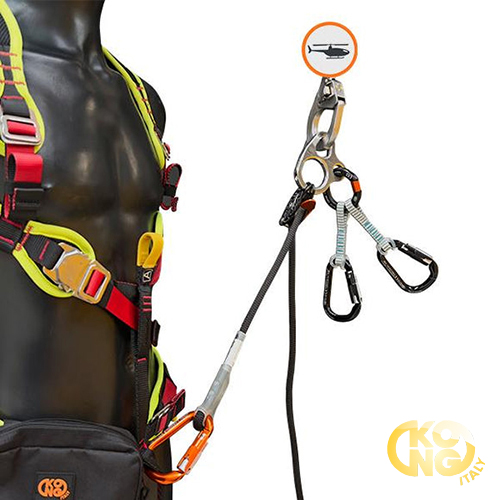

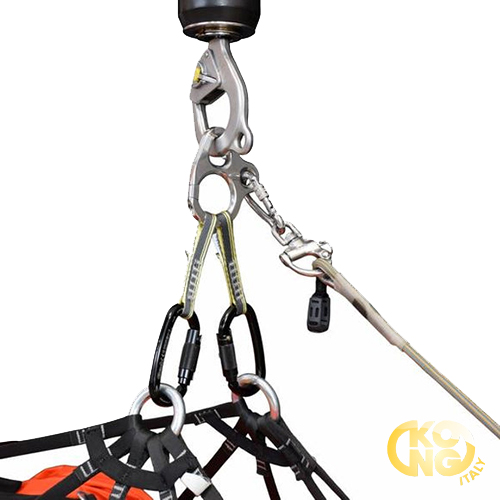

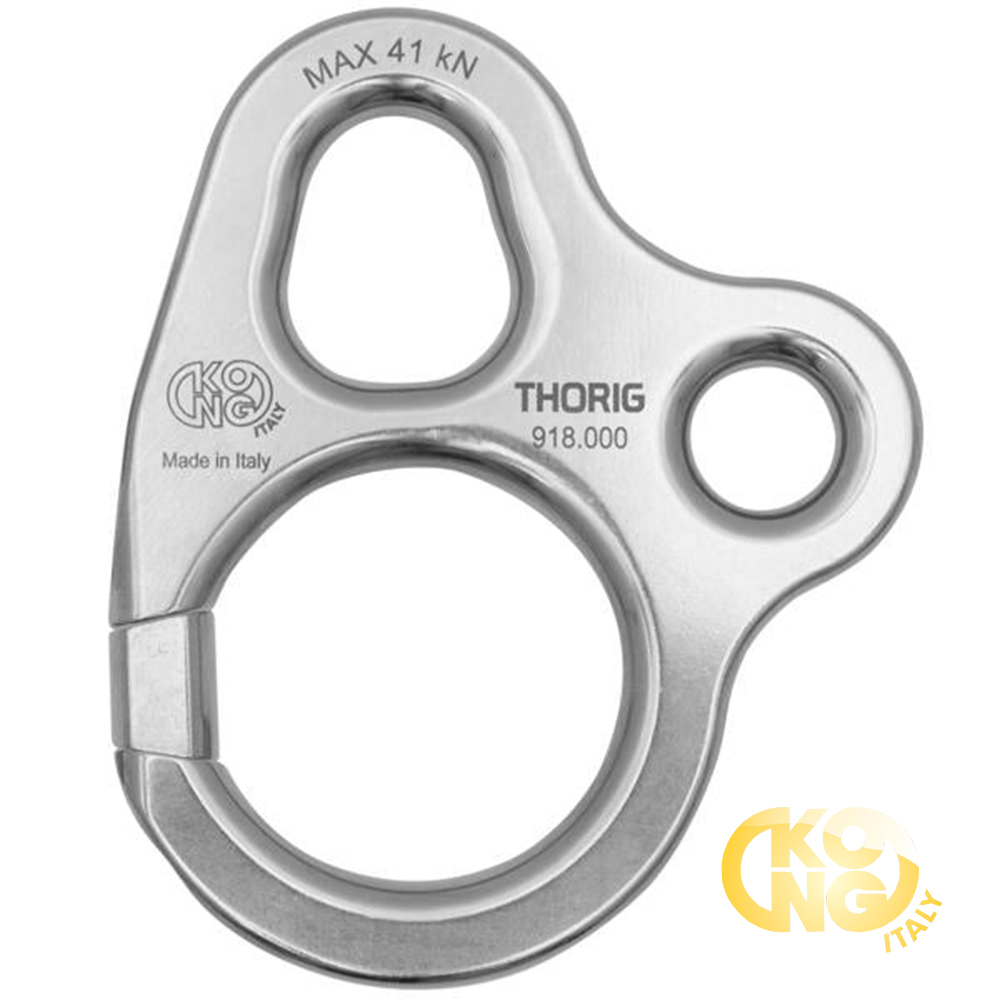

It features a smaller circular hole for attaching an openable ring such as LOTOR, standard connectors, quick links and additional accessories including discharge cables, hoist weights, slings and tools. The trapezoidal hole is designed to accommodate carabiners and hoist hooks, with the geometry helping prevent accidental rollout. Manufactured in Italy, THORIG weighs 310 g, has a 41 kN load rating and measures 110 mm by 92 mm.

Recommended for:

• Professional Rescue Activities: Helirescue

Features:

• Openable design
• Made from special stainless steel (AISI 630)
• A high-quality product, fully designed and manufactured in Italy!

Specifications:

Click Here To Download: General Information

Click Here To Download: User Manual
