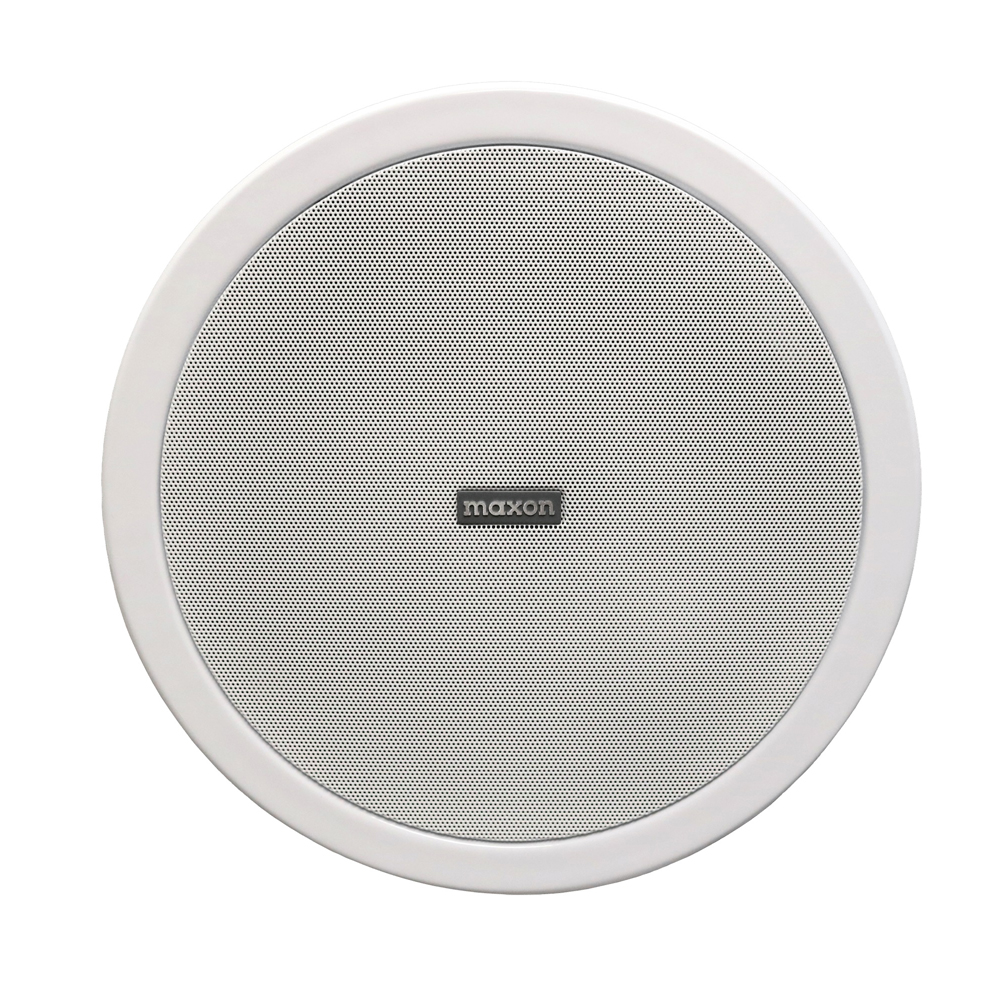

Maxon MDS-3400 10W UHF Ceiling Mount Speaker

Maxon MDS-3400 10W UHF Ceiling Mount Speaker

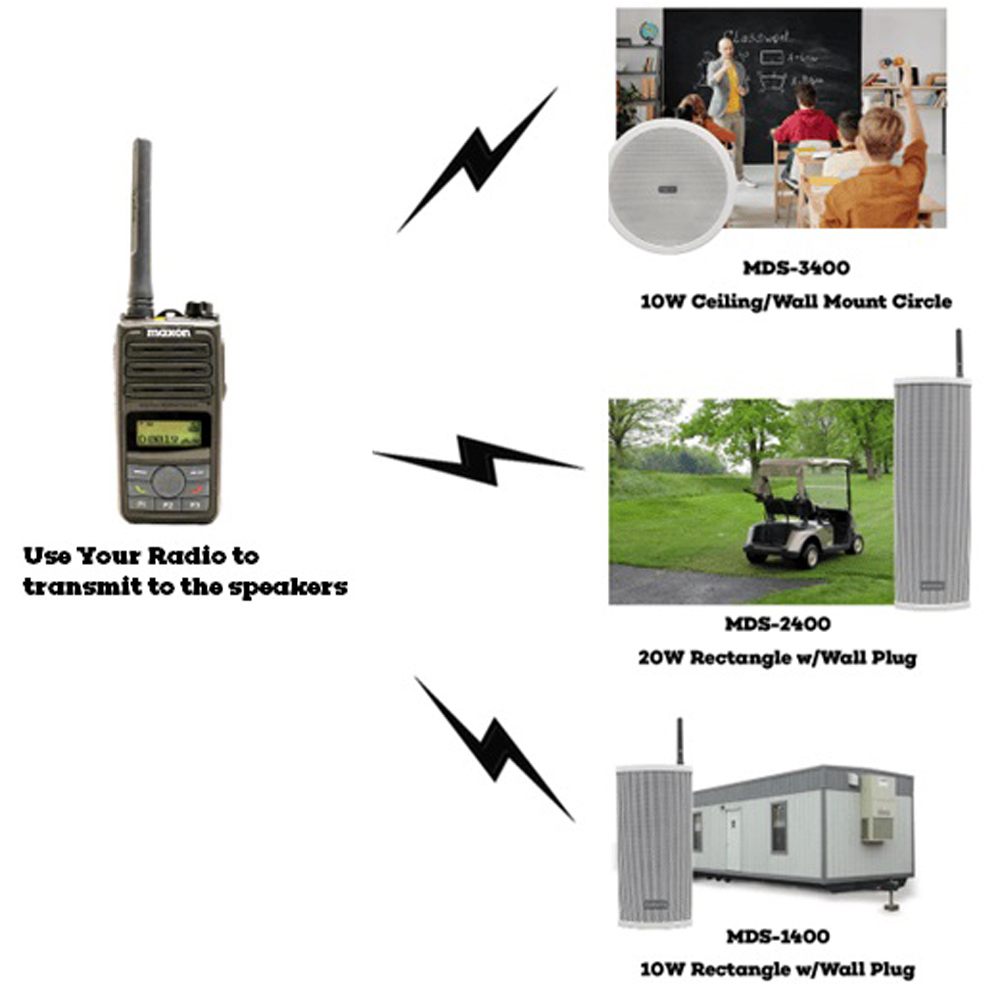

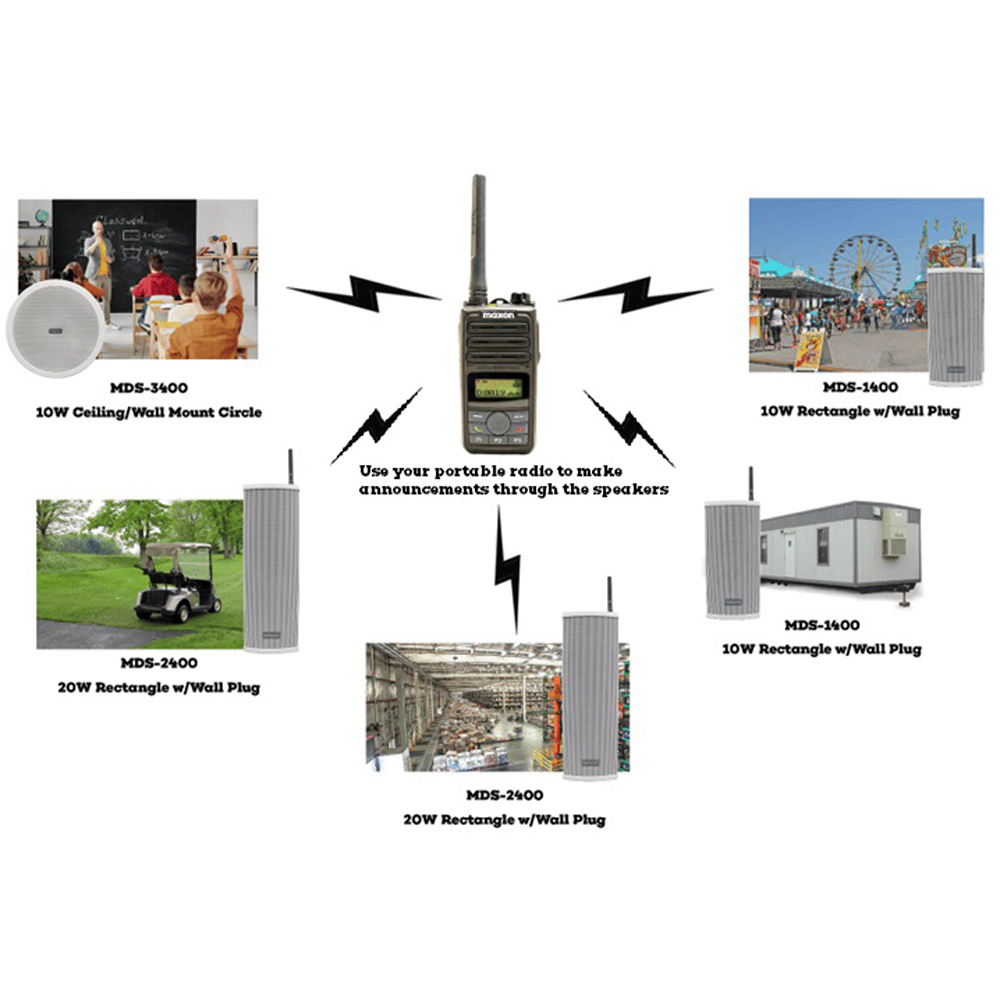

The Maxon MDS-3400 10W UHF Ceiling Mount Speakers are receive only wireless speakers designed for public address announcements using compatible DMR digital or analog portable and mobile radios. They support UHF frequencies from 400 to 470 MHz. The system allows users to broadcast to an individual speaker, selected groups or all connected speakers at once. It supports emergency alerts, channel scanning and repeater operation, with DMR, analog or mixed mode programming available through CPS software and a Bluetooth PC dongle. The system can also be used with an unlimited number of compatible speakers and portable radios.

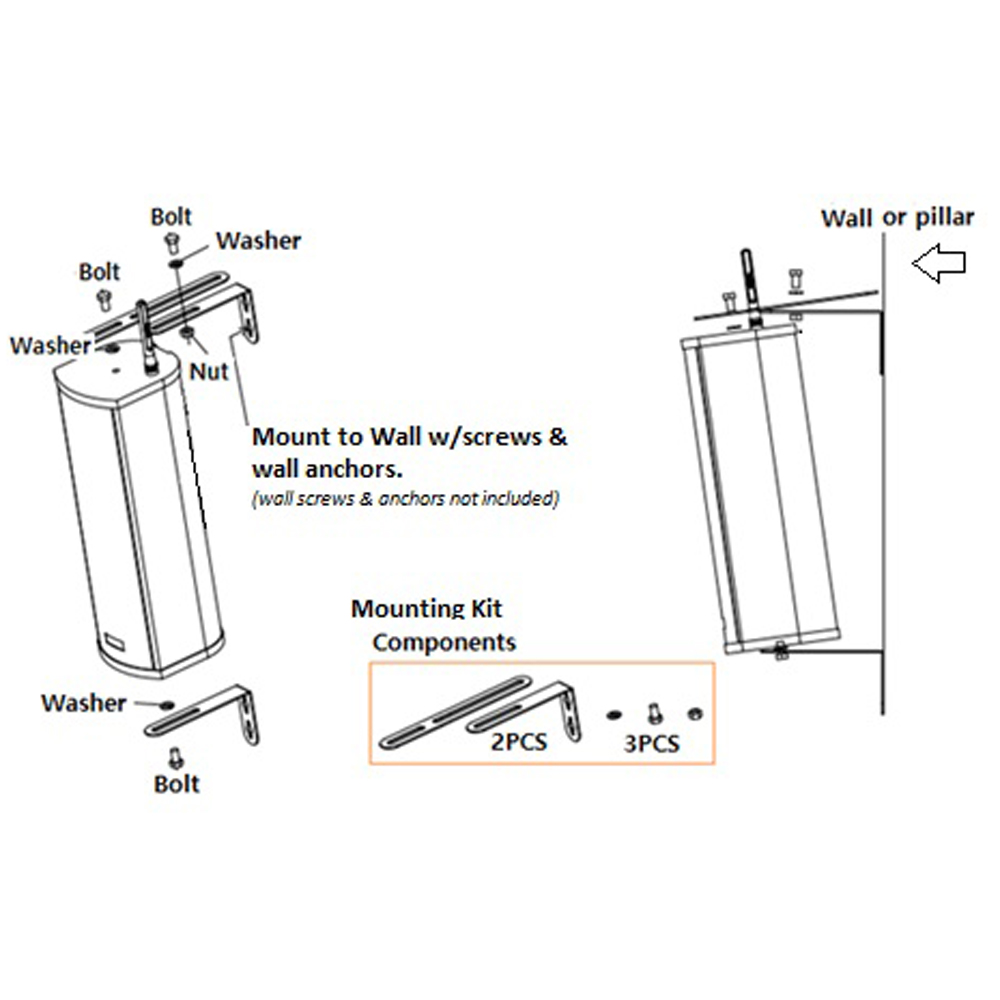

This Loudspeakers offer multiple installation options. A backup battery is included for power outages or portability, with the listed specifications stating up to 12 hours of backup. Users can control volume through the programming dongle or compatible MDP Series portable radios. Digital speakers support individual, group and all call broadcasts, while analog setups use CTCSS or DCS codes to access specific speakers. Basic mounting brackets are included, but the Bluetooth dongle and programming software are sold separately.

Features:

• Receive-Only Wireless Radio Loudspeaker System
• Use any DMR Digital or Analog radio in 400-470 UHF band
• Unlimited # of Speakers & Portable Radios can be used together

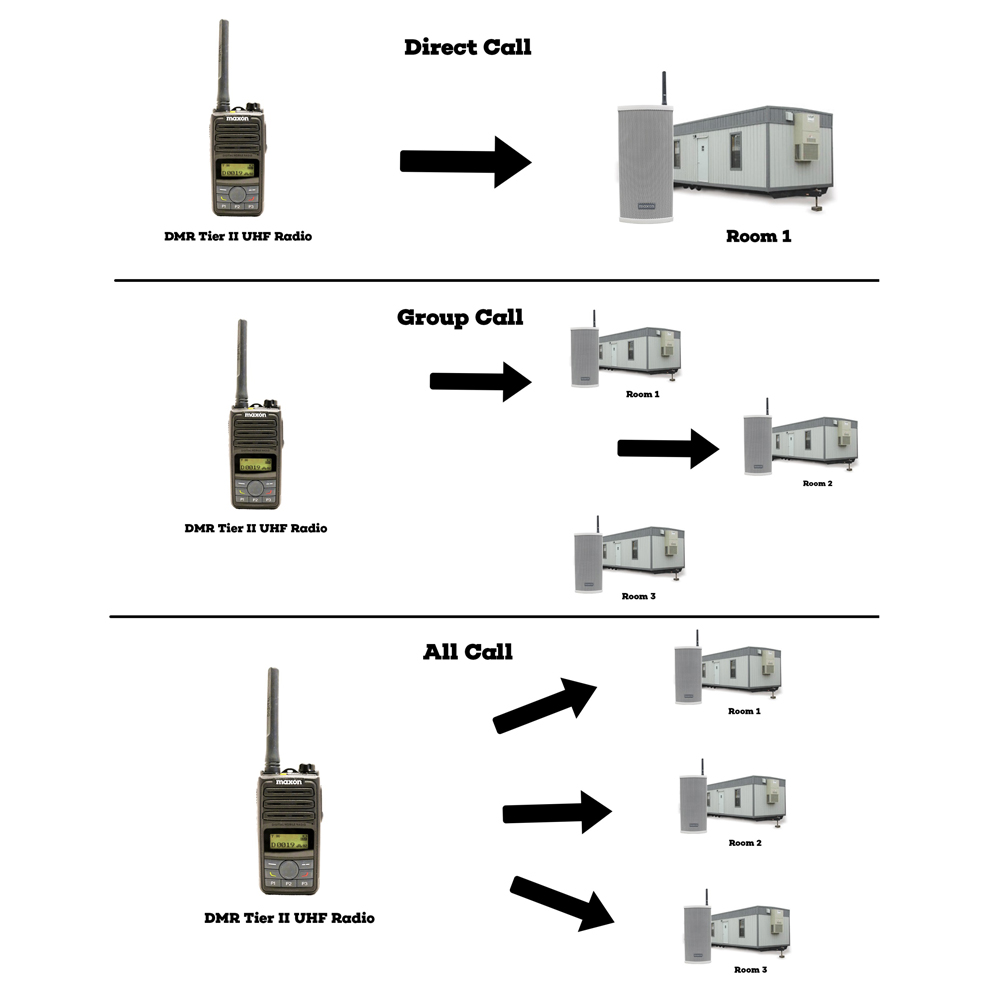

• When using multiple speakers, DMR Digital radio technology allows you to make PA Announcements to just one speaker, an "All Call" broadcast to every speaker at once, or create "Groups" to use only specific loudspeakers
• CTCSS/DCS can be used for Analog radios to access specific loudspeakers
• Send Alerts via your portable radio for Emergencies
• Program DMR / Analog / Mixed Mode per Channel w/CPS SW via Bluetooth PC Dongle (USB)
• Single Channel (Stores 32 additional Channels; Selectable via CPS SW)
• Channel Scanning (DMR/Analog/Mixed Mode)
• Control Volume with Programming Dongle or MDP Series Portable Radios
• Repeater Ready
• Backup Battery Included (12 hours) for outages or portability
• 10W mountable bookshelf size (AC 110V Wall Plug)
• Bluetooth Dongle And Programming Software Sold Separately

Click Here To Download: Specification Sheet

Click Here To Download: User Manual
