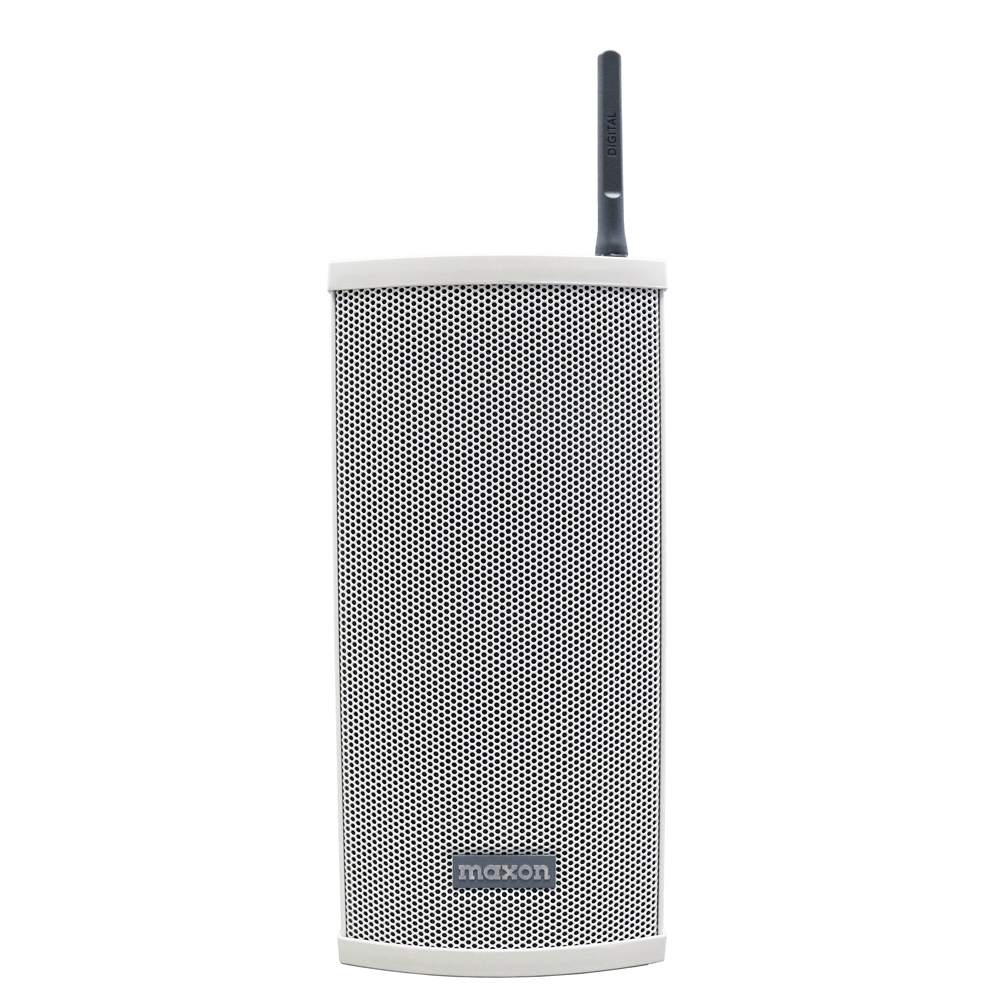

Maxon MDS-1400 10W UHF Rectangle Speaker with Wall Plug

Maxon MDS-1400 10W UHF Rectangle Speaker with Wall Plug

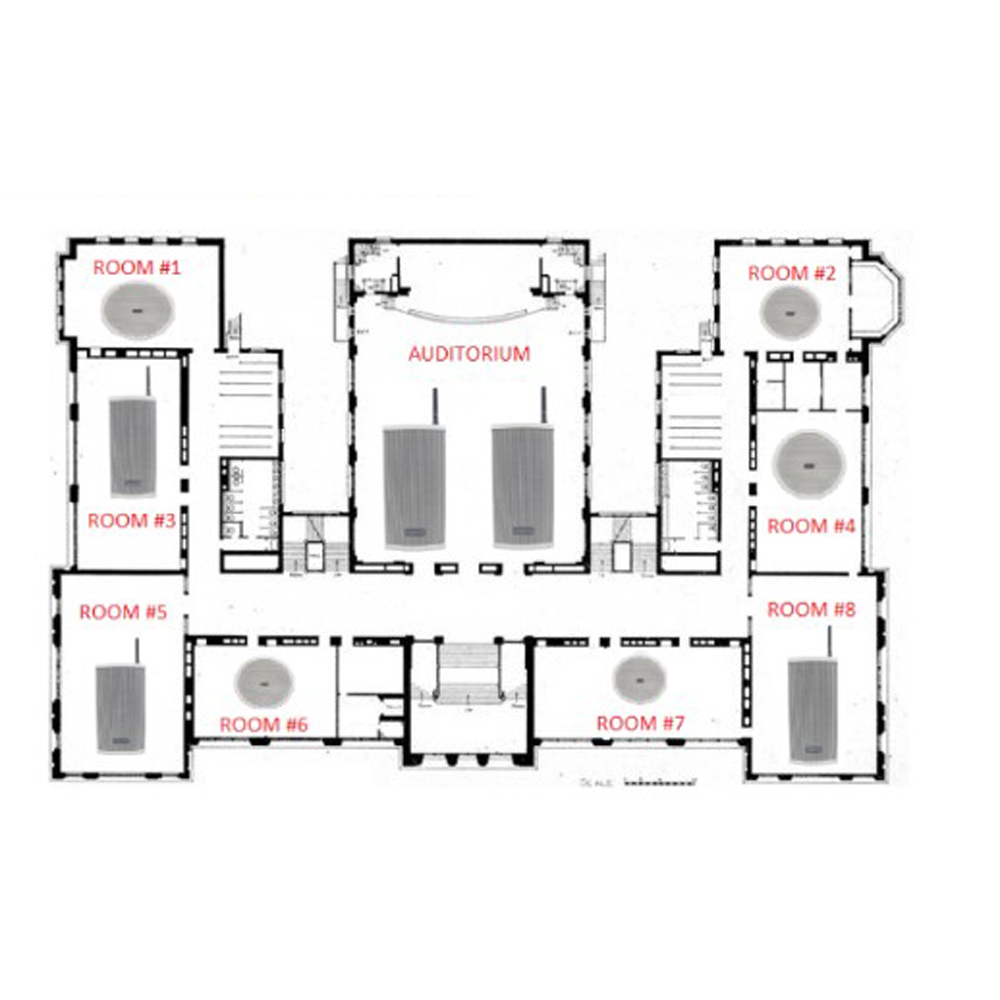

The Maxon MDS-1400 DMR Digital Analog Radio Loudspeakers are wireless, programmable, receive only speakers designed for remote broadcasting and announcements using compatible UHF portable or mobile radios. Supporting analog and DMR Digital Tier 2 TDMA radios operating in the 400 to 470 MHz band, the system allows users to broadcast audio to a single speaker, selected speakers or all speakers within a building or designated area. Each system includes a speaker, a Bluetooth USB programming module for a PC, a power supply that converts AC voltage to 12 VDC, and a nine hour backup battery for emergencies or portability.

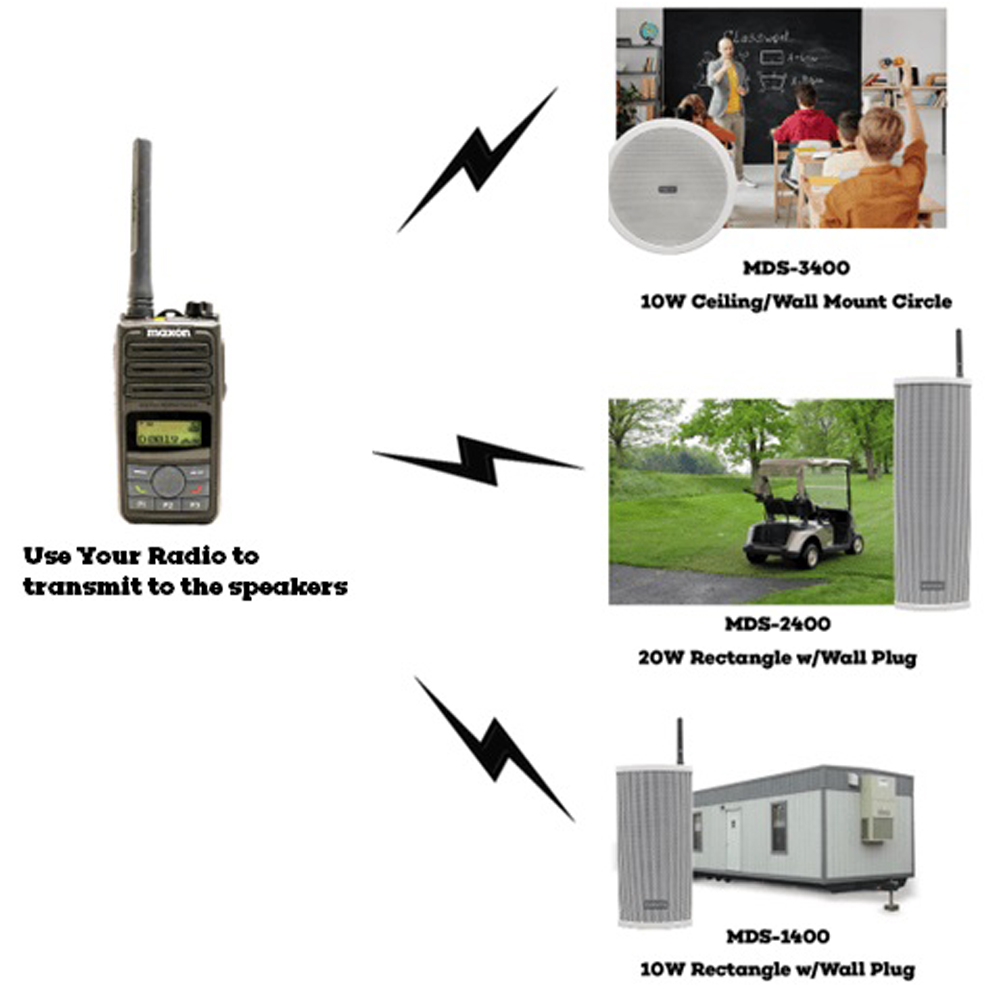

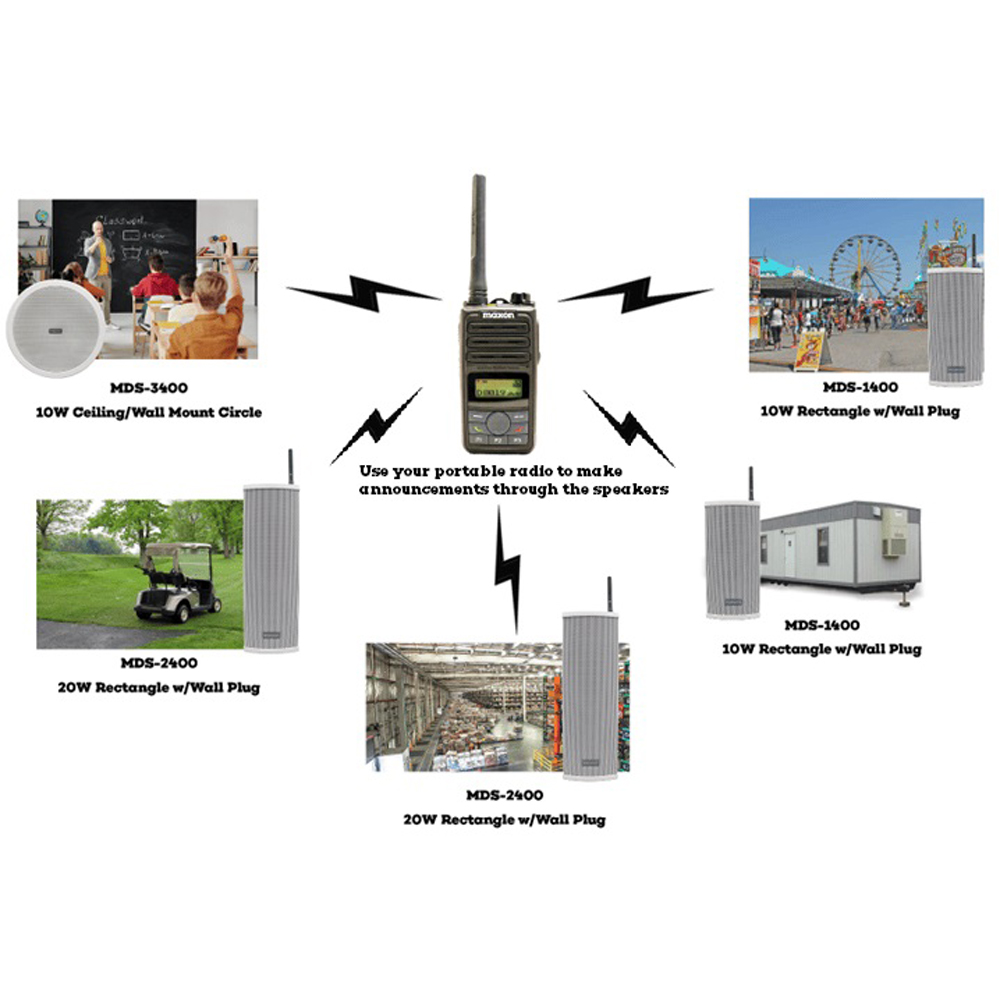

This Loudspeakers are available in multiple configurations for different installation needs. In DMR digital mode, each speaker has a unique ID for individual, group or all call broadcasting and volume control. Analog configurations use CTCSS or DCS codes with the programmed radio frequency. The plug and play design eliminates the need to run wiring through walls, making the system suitable for schools, factories, terminals, shopping centres, warehouses and other large facilities.

Features:

• Receive-Only Wireless Radio Loudspeaker System
• Use any DMR Digital or Analog radio in 400-470 UHF band
• Unlimited # of Speakers & Portable Radios can be used together

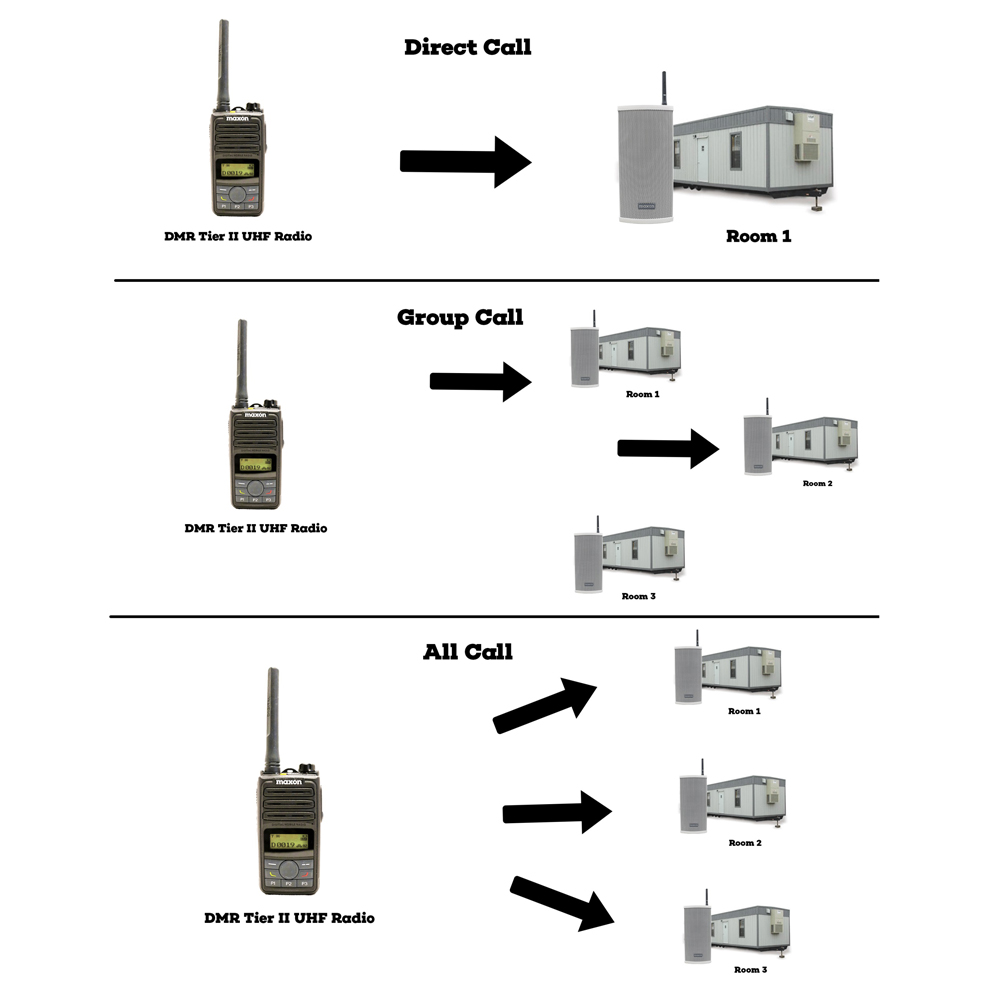

• When using multiple speakers, DMR Digital radio technology allows you to make PA Announcements to just one speaker, an "All Call" broadcast to every speaker at once, or create "Groups" to use only specific loudspeakers
• CTCSS/DCS can be used for Analog radios to access specific loudspeakers
• Send Alerts via your portable radio for Emergencies
• Program DMR / Analog / Mixed Mode per Channel w/CPS SW via Bluetooth PC Dongle (USB)
• Single Channel (Stores 32 additional Channels; Selectable via CPS SW)
• Channel Scanning (DMR/Analog/Mixed Mode)
• Control Volume with Programming Dongle or MDP Series Portable Radios
• Repeater Ready
• Backup Battery Included (12 hours) for outages or portability
• 10W mountable bookshelf size (AC 110V Wall Plug)

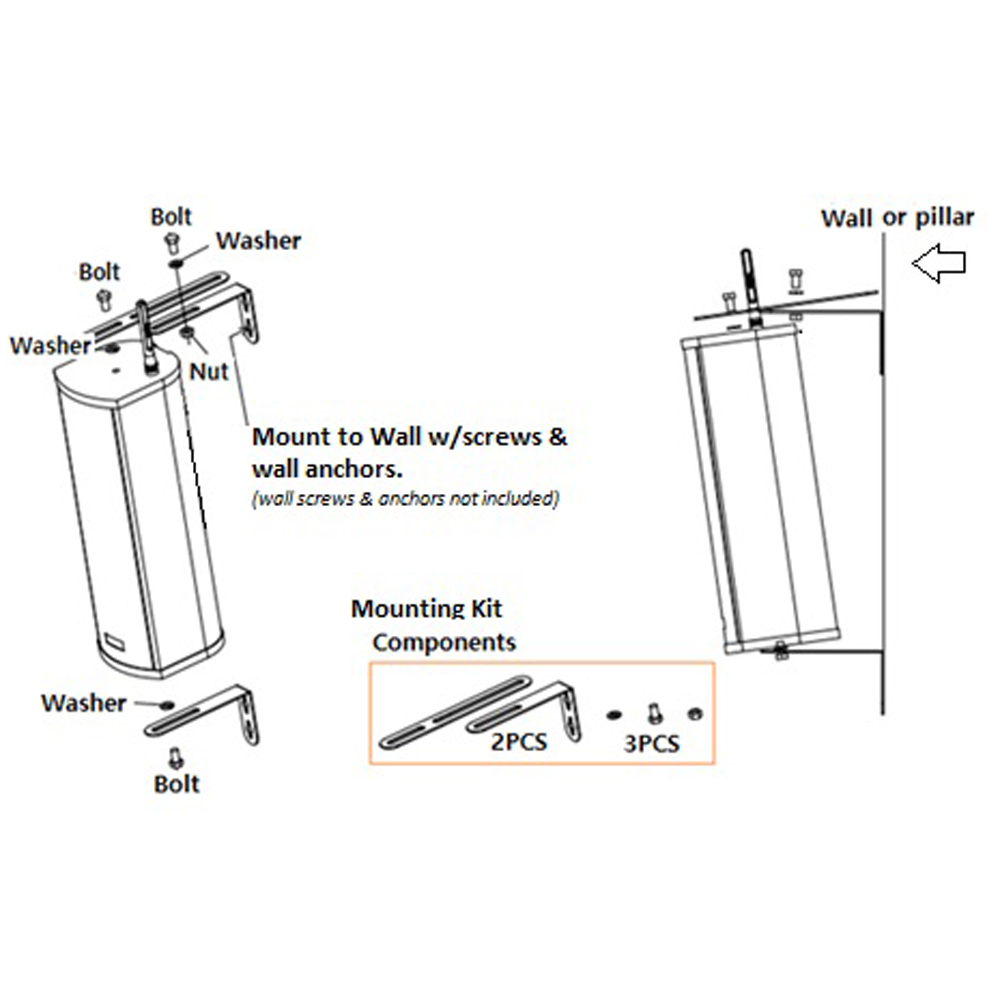

• Includes basic mounting brackets for wall or ceiling installation
• Bluetooth Dongle And Programming Software Sold Separately

Click Here To Download: Specification Sheet

Click Here To Download: User Manual
