MDP5000 Series DMR Display Radios Built for High-Intensity Operations

MDP5000 Series DMR Display Radios Built for High-Intensity Operations

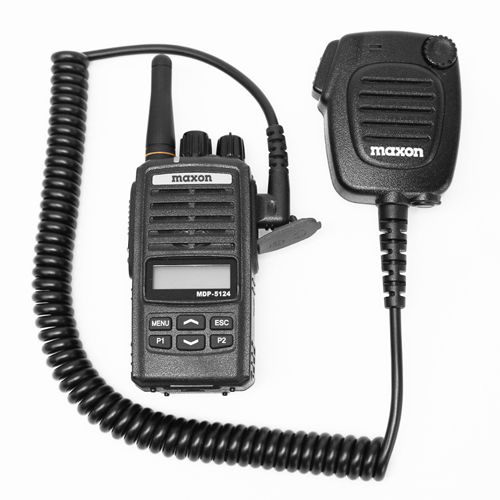

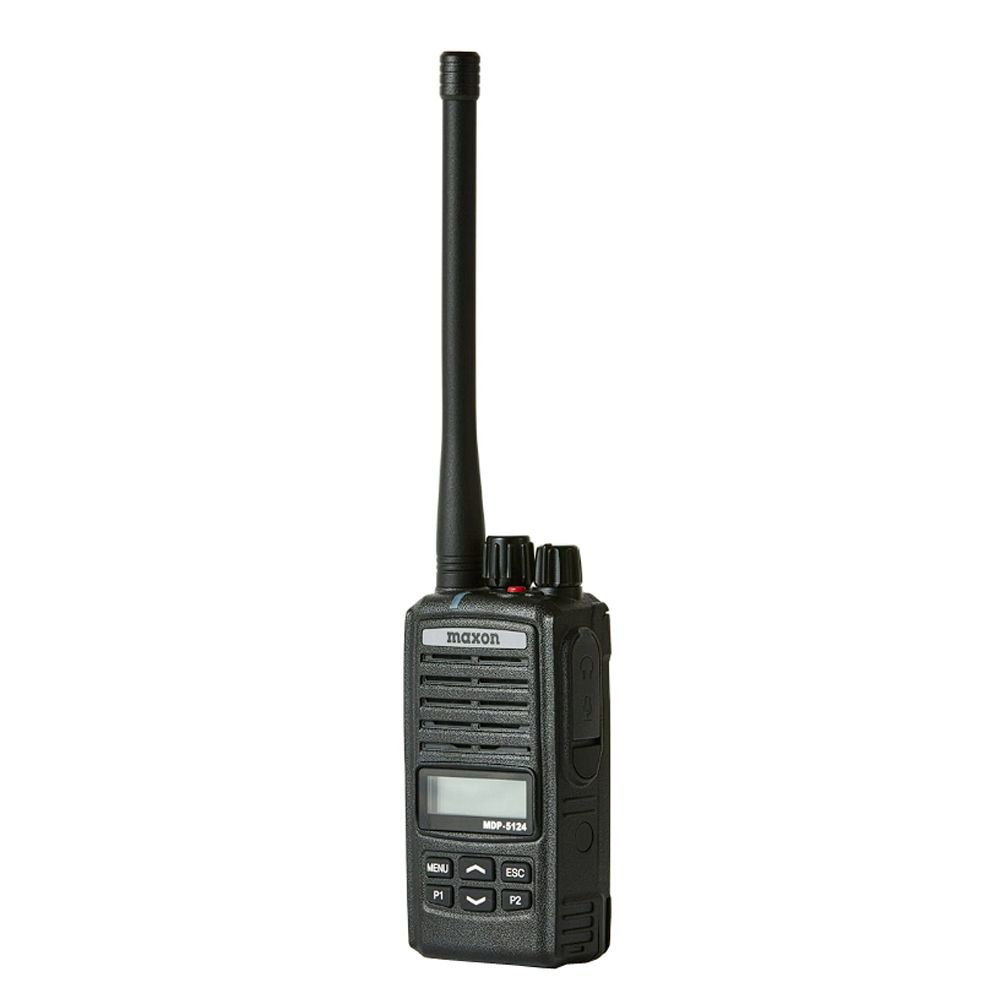

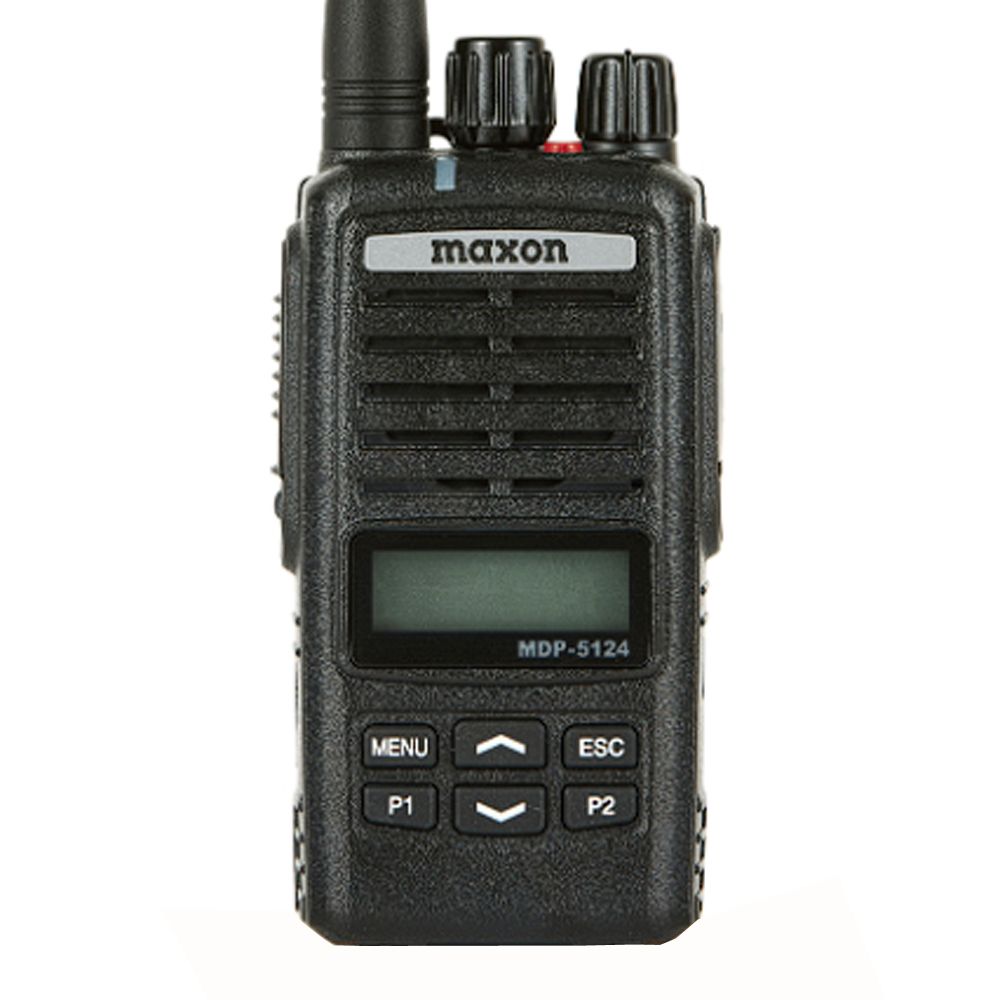

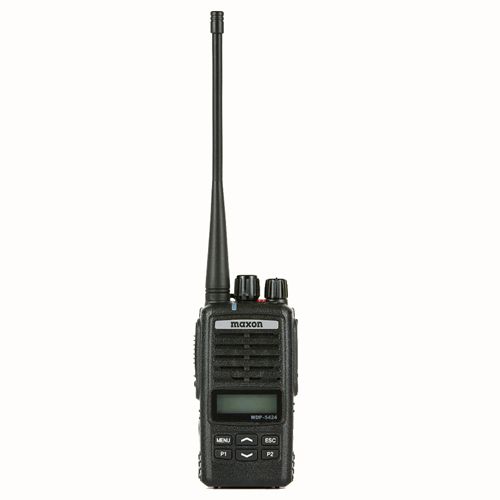

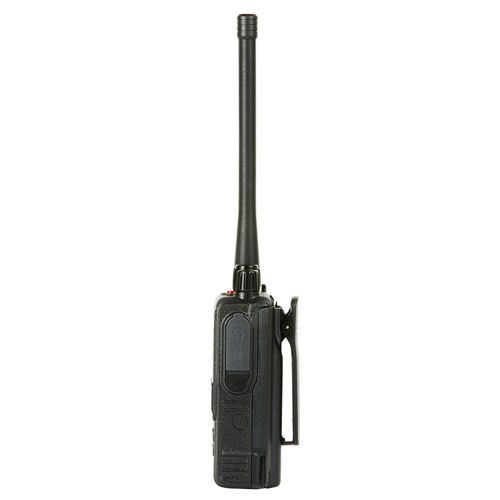

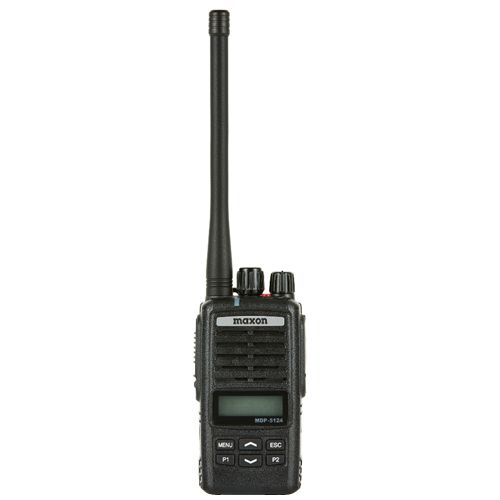

The MDP-5000 Series Display DMR handhelds provide dependable digital and analogue communication with 5W output power and wide VHF and UHF coverage, making them suitable for educational, security, and professional use. Built to IP67 waterproof and dustproof standards, they operate reliably in harsh environments while offering clear one watt audio and long battery life with optional 2600mAh or 3350mAh packs for extended shifts.

This models feature 1024 channels in ten zones, programmable DMR Tier 2 and analogue capability, rotary channel selection, priority scan, and hands-free VOX to support an efficient workflow. Advanced functions include individual and group calling, preprogrammed text messaging, encryption options including ARC4 and AES, lone worker and emergency features, remote monitor, stun and an optional single frequency repeater to enhance coverage. These radios combine rugged durability with intuitive operation for versatile field performance.

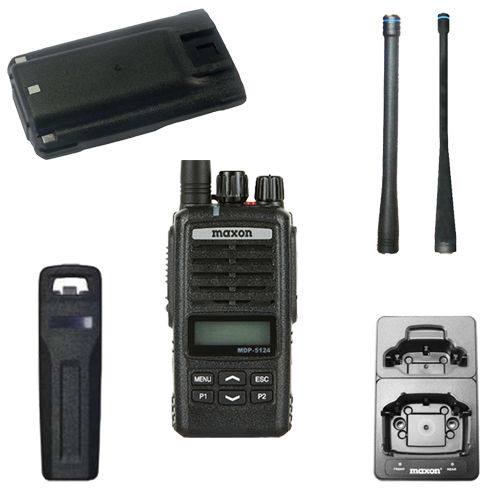

Available Accessories:

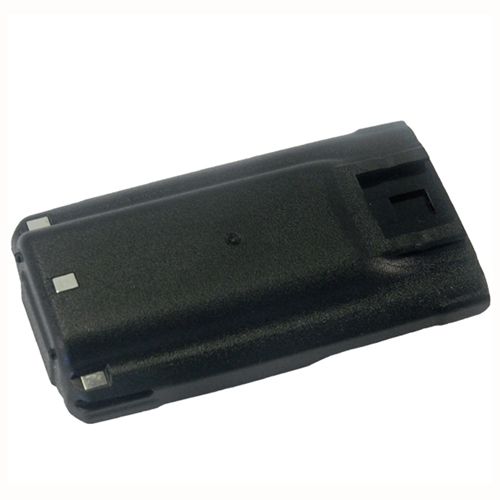

Batteries

• TA-2600LI: 2600 mAh Li-Ion Battery

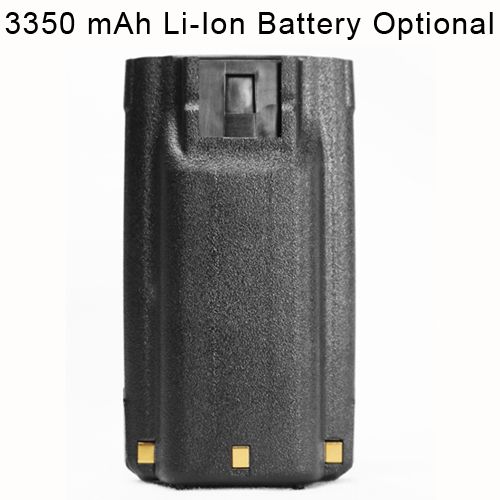

• TA-3350LI: 3350 mAh Li-Ion Battery

Antennas

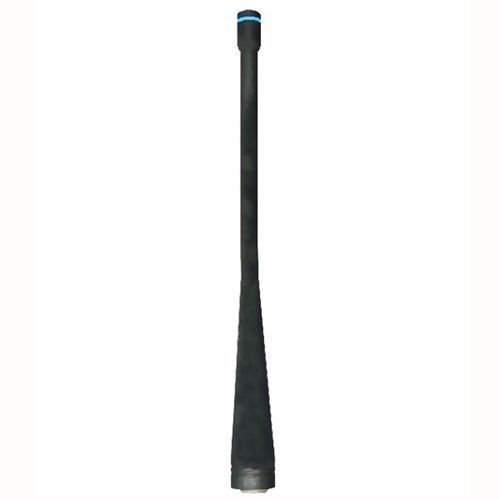

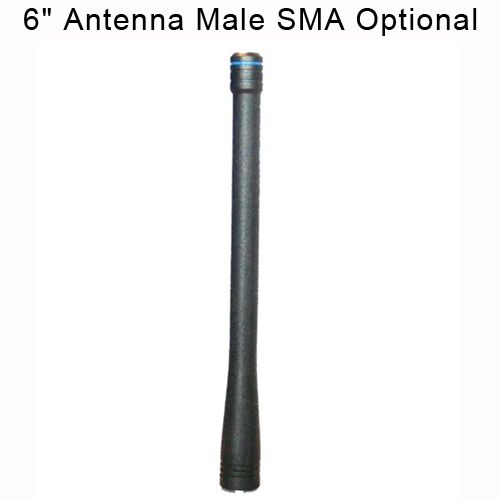

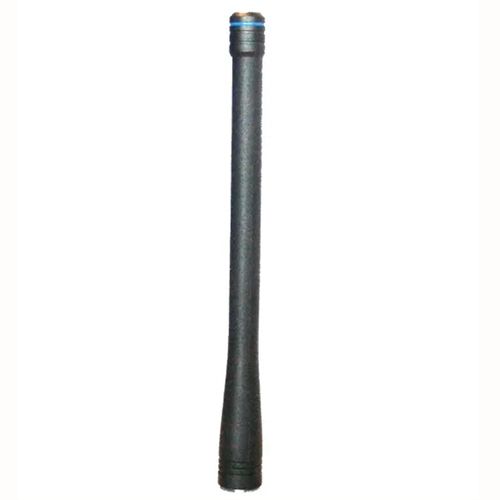

• TA-841: VHF (136-174 MHz) 6" Antenna, Male SMA

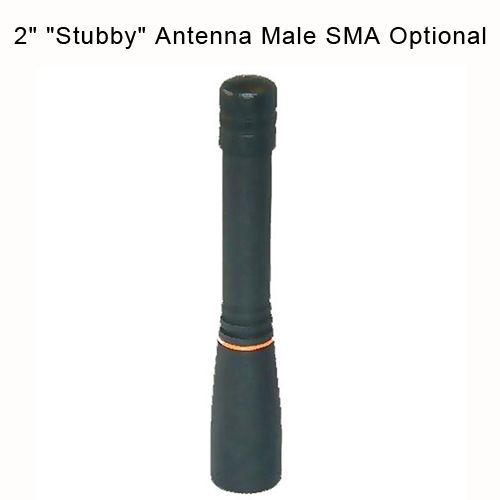

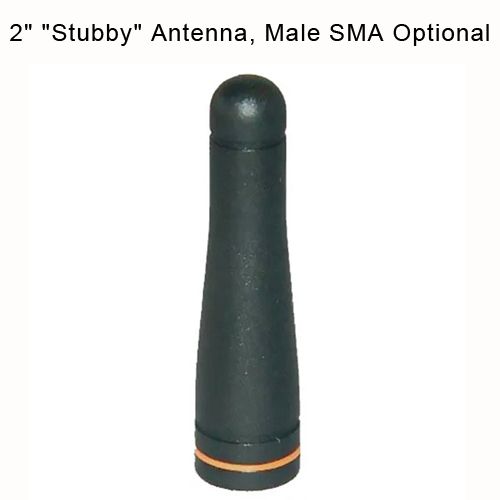

• TJA-341: VHF (148-174 MHz) 2" "Stubby" Antenna, Male SMA

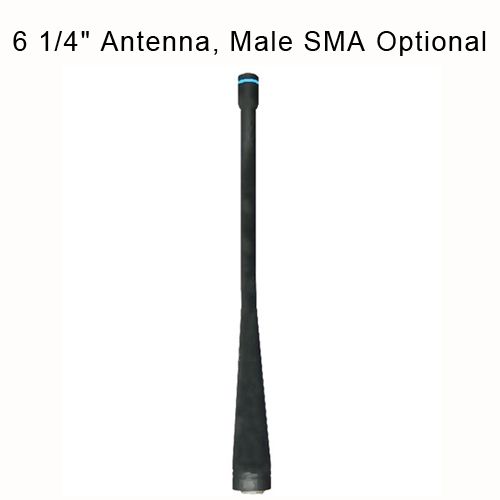

• TA-842: UHF (400-470 MHz) 6 1/4" Antenna, Male SMA
• TJA-342: UHF (450-470 MHz) 2" "Stubby" Antenna, Male SMA

Chargers

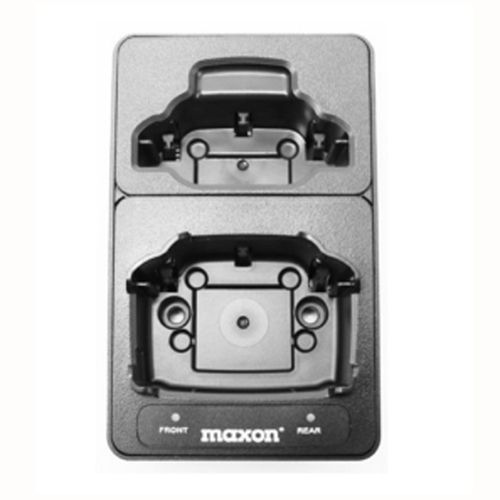

• MA-500LA: Dual Slot Rapid Rate Desktop Charger
• ACC-600TP8: Single Slot Vehicular Charger (w/cup)

Audio

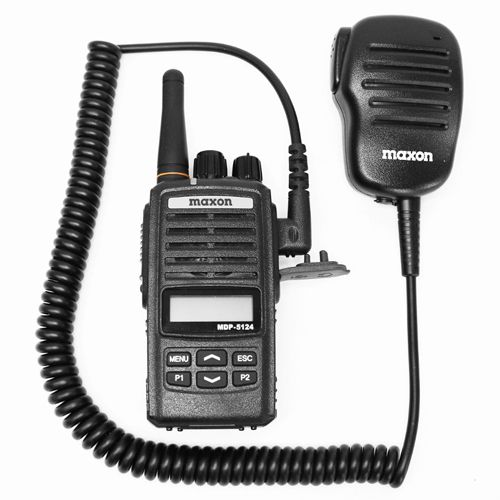

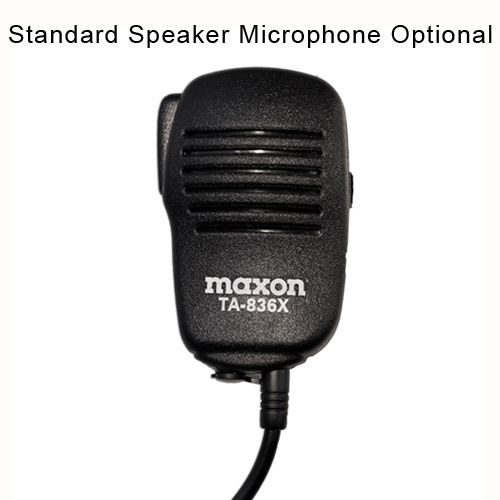

• TA-836X: Standard Speaker Microphone

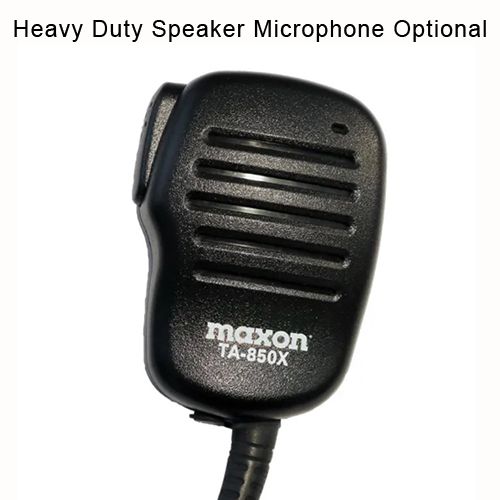

• TA-850X: Heavy Duty Speaker Microphone

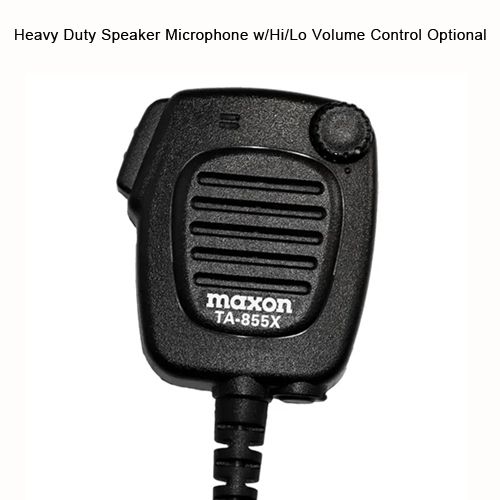

• TA-855X: Heavy Duty Speaker Microphone w/Hi/Lo Volume Control

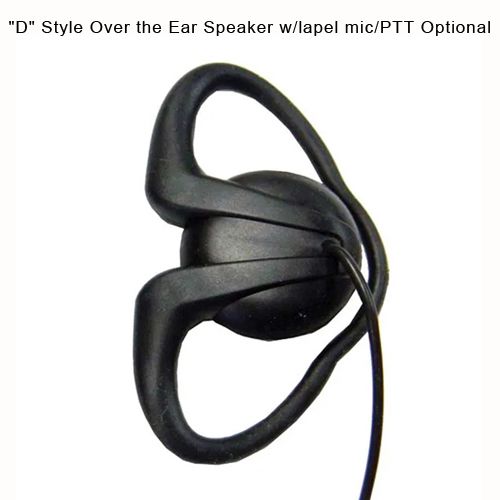

• TA-817X: "D" Style Over the Ear Speaker w/lapel mic/PTT

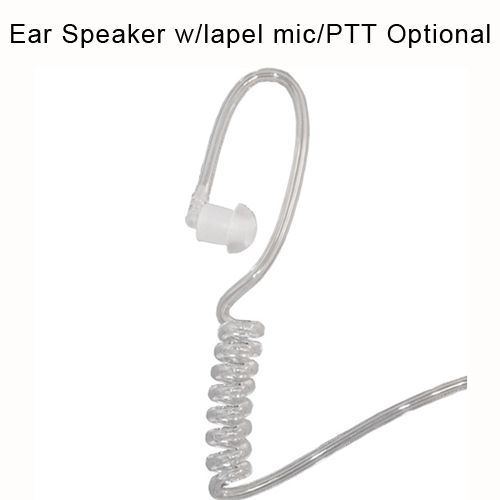

• TA-818X: Discreet (clear audio cord) Ear Speaker w/lapel mic/PTT
• TA-819X: "C" Style Earhook Speaker w/lapel mic/PTT
• TA-820X: Behind the Head Frame w/boom mic in-line/PTT
• TA-890X: Dual Muff Headset and Cord (2-Pin)

Carrying Cases

• MA-60LC: Leather Carrying Case w/Belt Loop/Swivel
• MA-60NC: Nylon Carrying Case w/Belt Loop

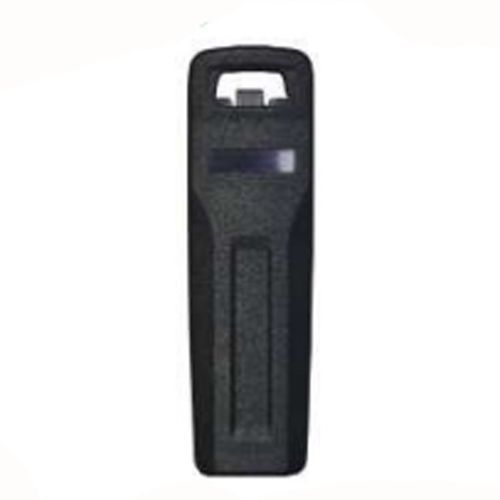

• TA-80BC: Spring Loaded Belt Clip

Click Here To Download: User Manual
