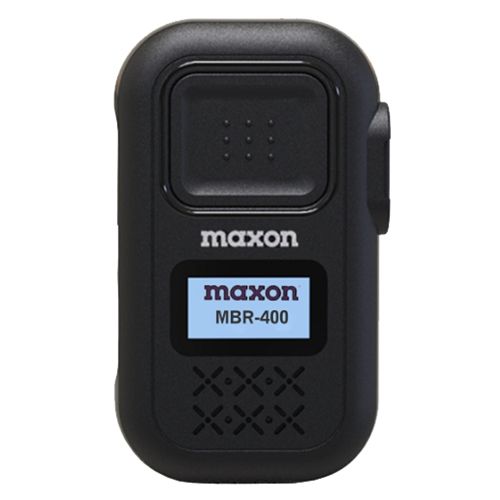

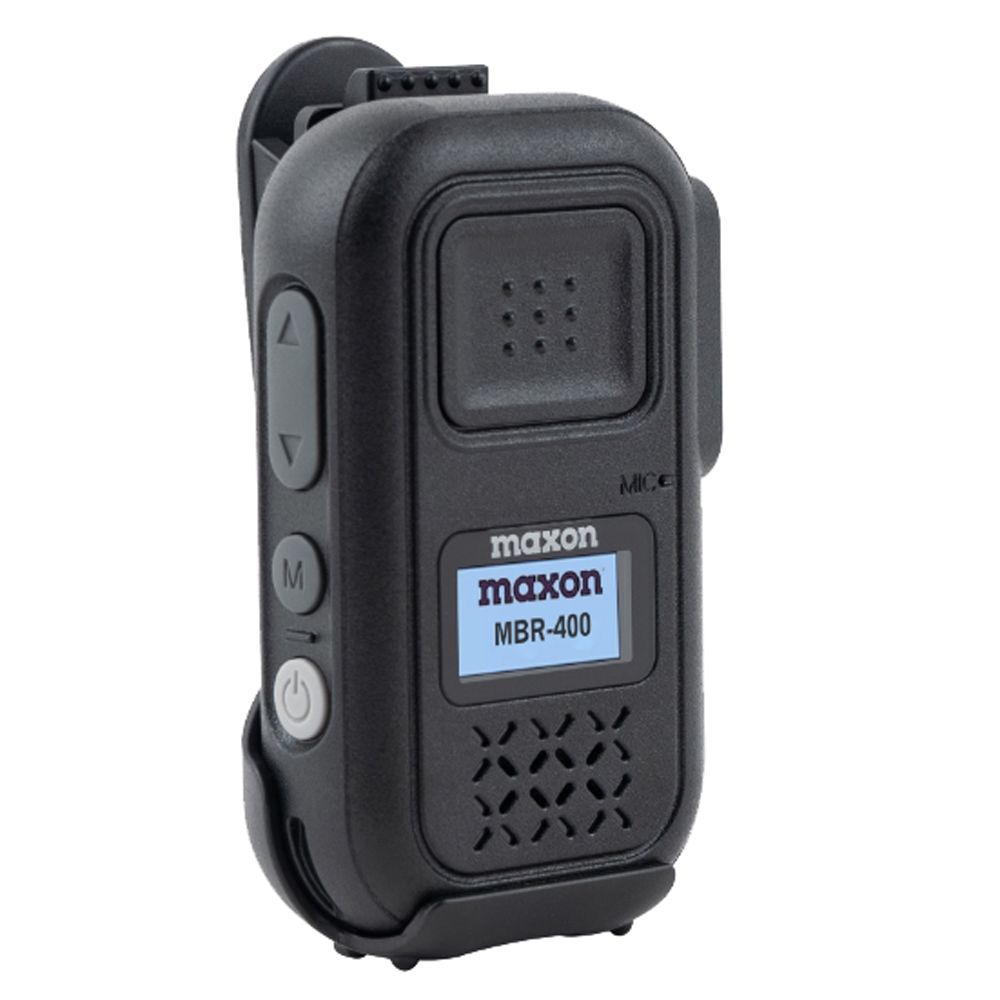

MBR400 Compact Digital UHF Radio - 16 Channel, 2W Output

Features:

Specifications:

• Programmable Buttons
• Tone (Beep) Control
• Channel and Frequency Changes
• Mixed Channel Operation (Analog reception in Digital Mode)
• Time-Out Timer (TOT)
• Remote Check and Monitor
• Remote Radio Stun / Revive (Disable Target Radio)
• Emergency / Siren (Programmable Key)
• Built in Speaker and MIC (1 Watt Audio output)
• Priority Scan Mode
• Channel and Battery Remaining announcement
• 2 Year Standard Warranty, 1 Year Extension Option
• Spanish Language OTA Cloning
• IP54 Water Resistant
• Voice Record
• Private Contacts
• AES Encryption
• Silent/Vibration
• Lone Worker
• BCL/BCLO
• VOX (Hand's-free use)

• Dimensions: 3" x 2" x 1" (85mm(H) x 50mm(W) x 21mm(D))
• Weight: 3.5 oz (100g)

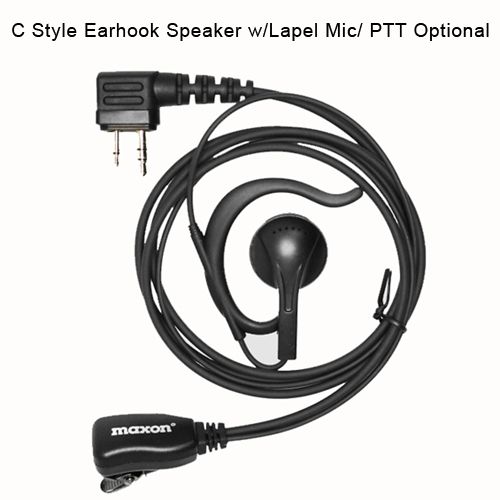

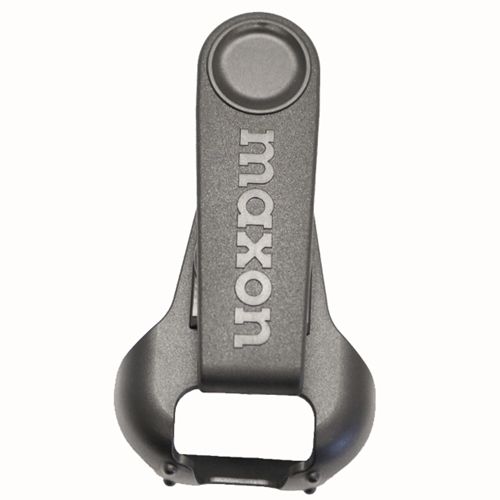

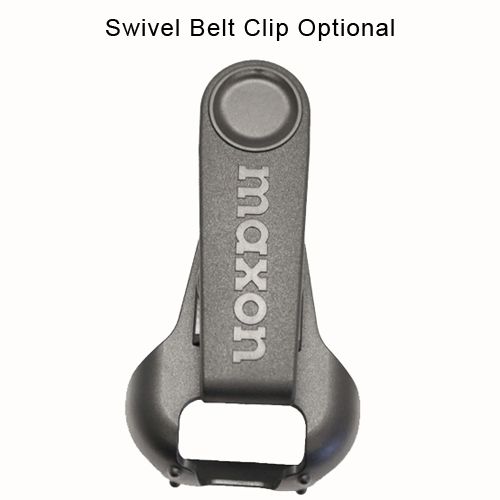

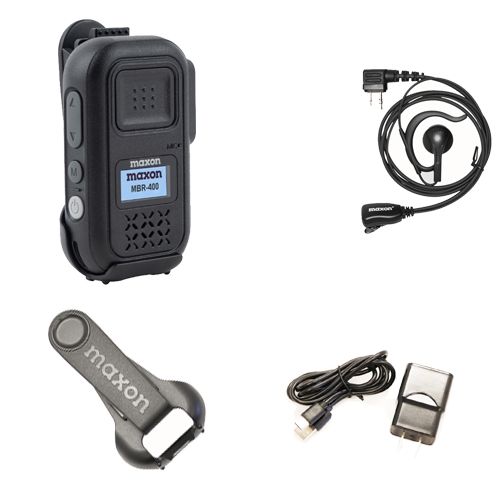

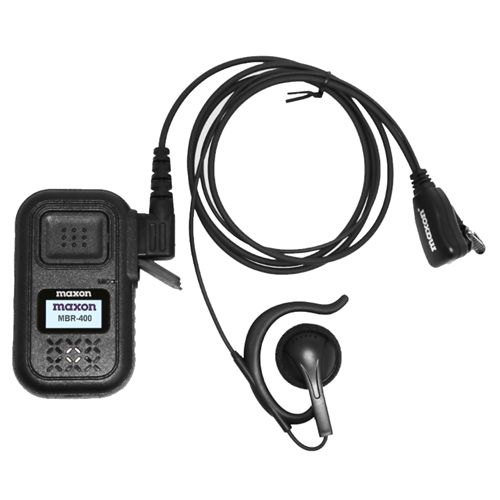

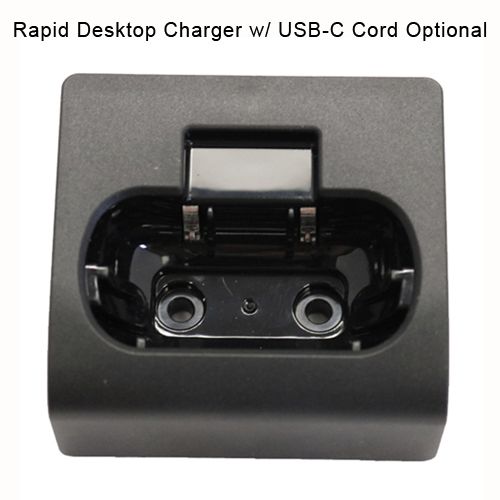

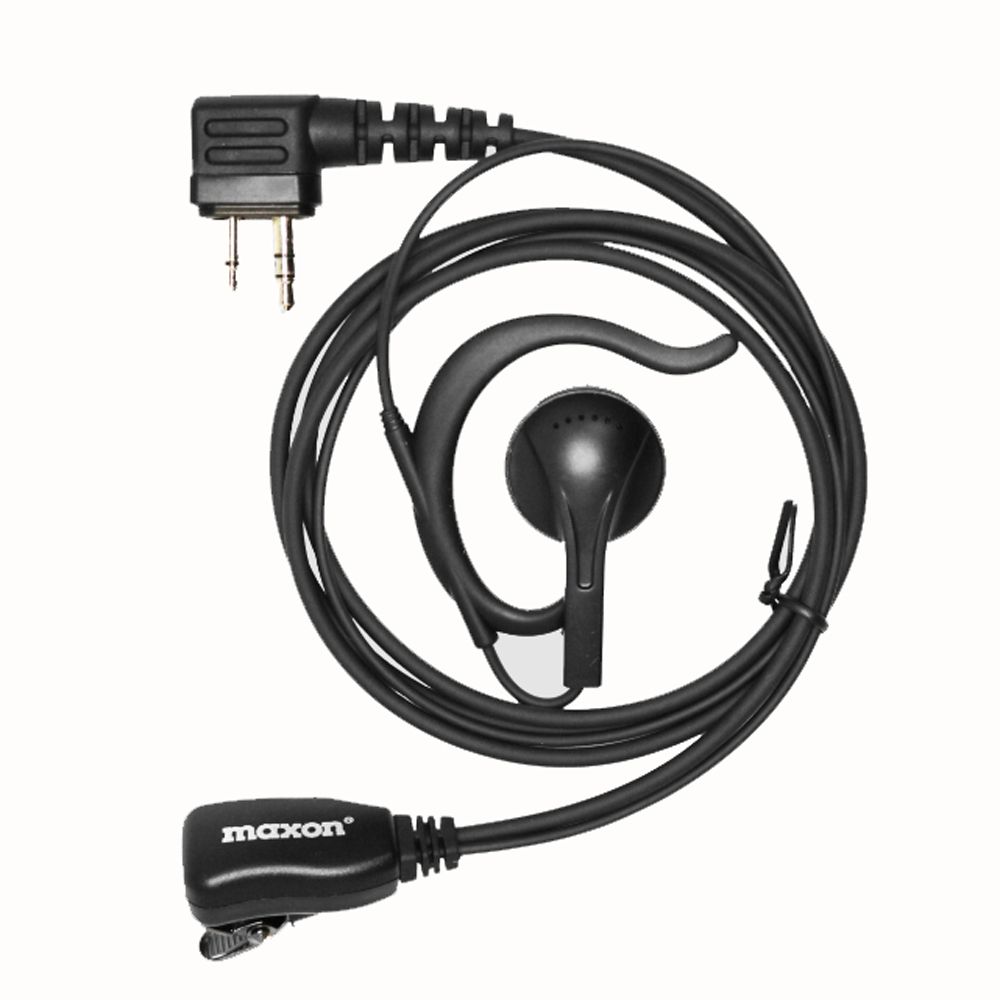

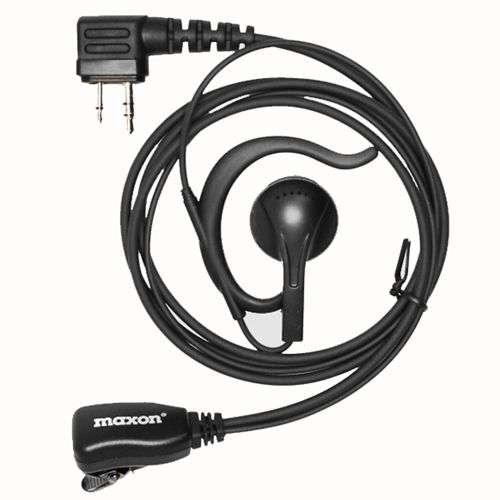

• Comes with "C" Style VOX Headset, Swivel Belt Clip, and Charging Stand
• Programmable Channels: 16 Channels, 1 Zone
• Frequency Range: 440 ~ 470 MHz
• Frequency Stability: ±1.5ppm (-30anddeg; to 60anddeg; C)
• Channel Spacing: 12.5KHz
• Built-in Battery: 18hr talk time
• Digital Vocoder: AMBE++ Voice Compression Algorithm
• Power Source: DC +3.7V Li-ion 2,000mAh Battery (Built-in)
• Over the Air Program Cloning to other radios

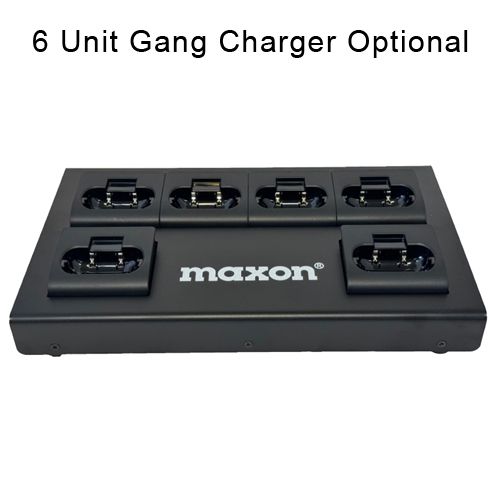

• 6-radio Multi-Unit Chargers available
• Approvals: FCC, IC, CE
• Current Drain (maximum): Receive mode, rated audio out - 420
  (Audio Max) Transmit mode - 1,200mA Standby mode - 100mA

Receiver:

Transmitter:

• Sensitivity: 0.25uV 12 dB SINAD
• Squelch Sensitivity: 0.22uV 10dB SINAD
• Selectivity: 60dB (12.5KHz)
• Spurious and Harmonic Rejection: -36dBm(<1GHz),-30dBm(>1GHz)
• FM Hum and Noise: 40dB (12.5KHz)
• Audio Output Power: 1 Watt across an 8ohm load
• Audio Distortion: Less than 3% at rated output
• Audio Response: +1, -3 dB from 6dB per octave de-emphasis
  Characteristic from 300 ~ 3000Hz
• Input Impedance: 50 ohms

• RF Power Output: 2 Watt (High) / .5W (Low)
• Adjacent Channel Power: 60dB
• Spurious and Harmonic: -36dBm(<1GHz), -30dBm(>1GHz)
• FM Hum and Noise: 40dB (12.5KHz)
• Audio Distortion: 3% maximum with 1KHz modulation
• Audio Frequency Response: +1, -3dB from 6dB per
  octave pre-emphasis Characteristic from 300 ~3000Hz
• Output Impedance: 50ohms
