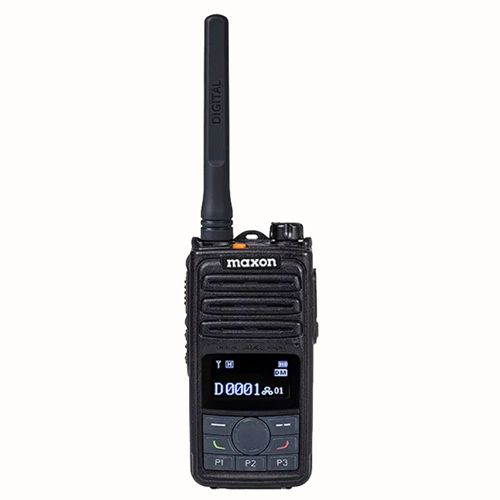

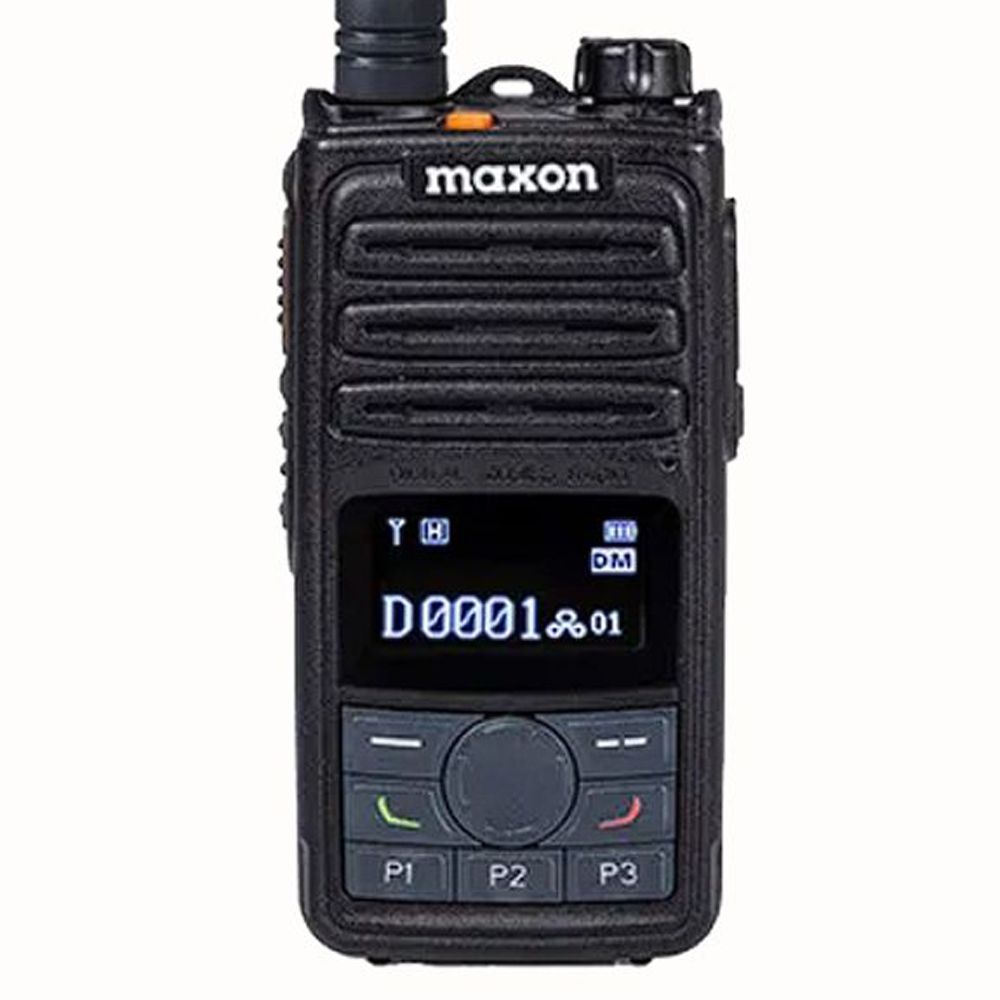

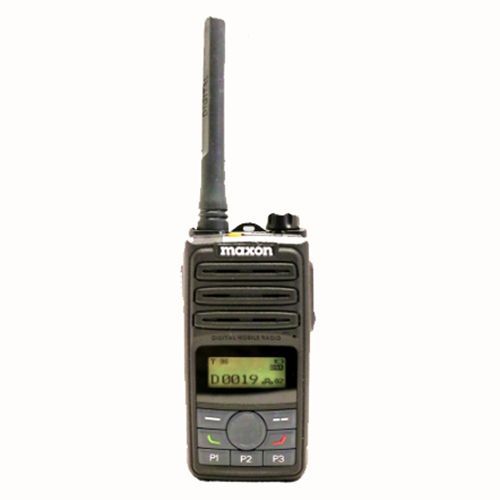

MDP6000 DMR Tier II Digital Radio VHF or UHF - 2500 Channels, 5/1W Output

Features:

• 5/1W VHF and UHF
• 2500 Channels, 64 Zones; 1024 Channels Per Zone
• DMR Tier II TDMA/Analog per Channel
• Mixed Mode (Digital and Analog)
• LCD or OLED Display
• 240 Contacts and Call Log (Digital Mode)
• AES Encryption (128, 192, 256-bit)
• 2-Pin Audio Connector
• CTCSS/DCS
• Lone Worker
• 5 Levels VOX (Voice Operated Transmit)
• One-Touch Text/Calling
• 1 Watt Audio Output
• LED Flashlight
• Battery Saver
• BCL/BCLO (Busy Channel Lockout)/(Busy Channel Lockout Override)
• Compatible with Maxon's Wireless External Speakers
• Multiple Scan Options
• Voice Recording and Playback
• Password Protected Radio Lock
• Remote Monitor/Stun/Revive
• Programmable Key and Menu Functions
• Wireless and Cabled Cloning
• Vibration
• Dust and Water Protection: IP-67 Standard
• Vibrate
• RX Only Function
• Time-Out Timer (TOT)
• Emergency / Siren Function (Digital Mode Only)
• GPS (Factory Option)
• Man-Down (Factory Option)
• TX Inhibit (Factory Option)
• DMRA/Motorola-compatible AES 256bit Encryption (Factory Option)
• 3Y Warranty Standard, 2-3Y Extension Option

Specifications:

• Power Source: DC +7.4V Li-ion 2,600mAh Battery
• Channel Spacing (Analog): 25/20/12.5 kHz
• Channel Spacing (Digital): 12.5 kHz 2 Time Slots of 6.25 Each
• Operating Voltage: 7.4VDC
• Battery Capacity: 2600 mAh Li-Ion
• Frequency Stability: ±1.5 PPM (-30deg; to +60deg; C)
• Antenna Impediance: 50 Ω
• Dimensions (H/W/D): 4.52" x 2.17" x 1.26" (115 x 55 x 32 mm)
• Weight: 8.8 oz. (249 g)
• Case/Frame: Polycarbonate/Aluminum Die Cast
• Battery Life (Hours): Analog: 12 Hours, Digital: 15 Hours 90/5/5 duty cycle
• Operating Temperature: -30deg; C to + 60deg; C
• Storage Temperature: -40deg; C to + 85deg; C
• ESD: IEC 61000-4-2 / ±8KV / ±15 KV
• Approvals: FCC, IC, CE
• Current Drain (maximum): Receive mode, rated audio out - 420mA
  (Audio Max), Transmit mode - 1,200mA, Standby mode - 110mA

Available Option:

• MDP-6124: VHF (136-174 MHz)
• MDP-6424: UHF (406-470 MHz)

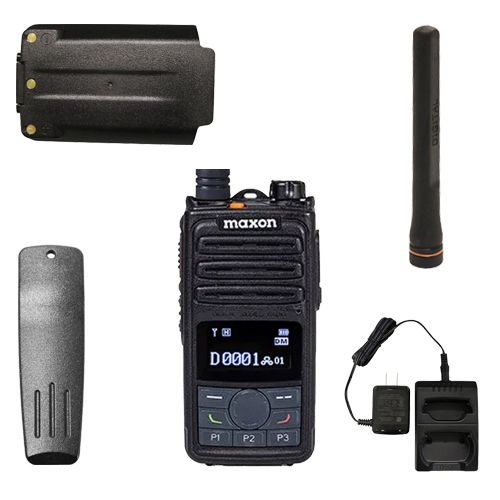

Included:

• Radio

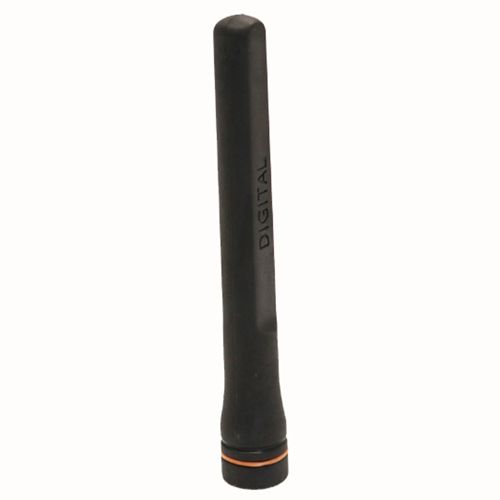

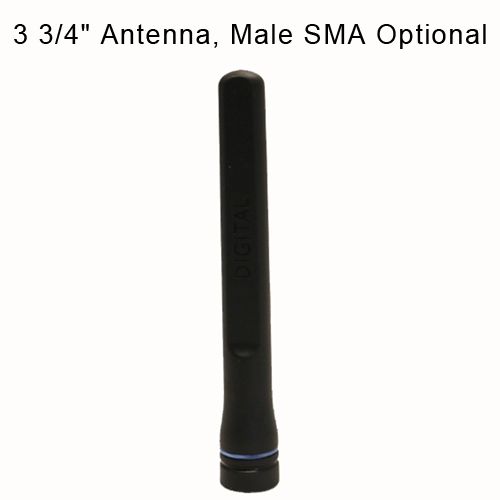

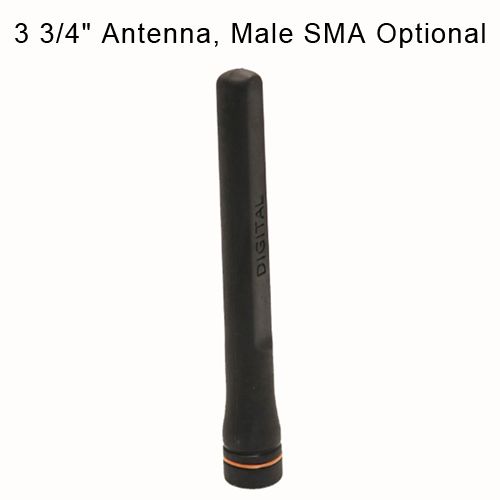

• Antenna (MA-641/642)

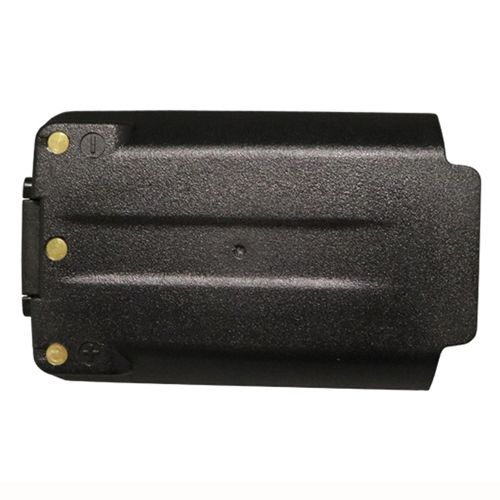

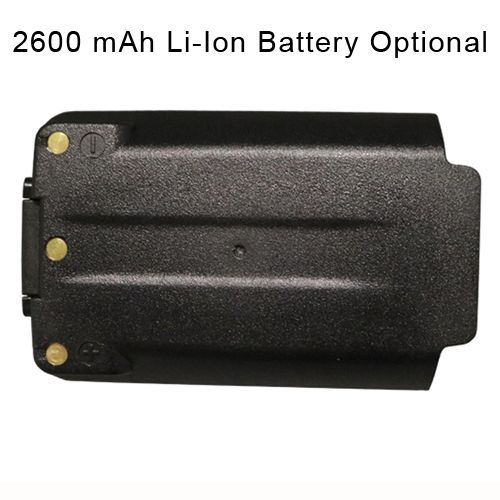

• 2600 mAh Li-Ion Battery (MA-6260)

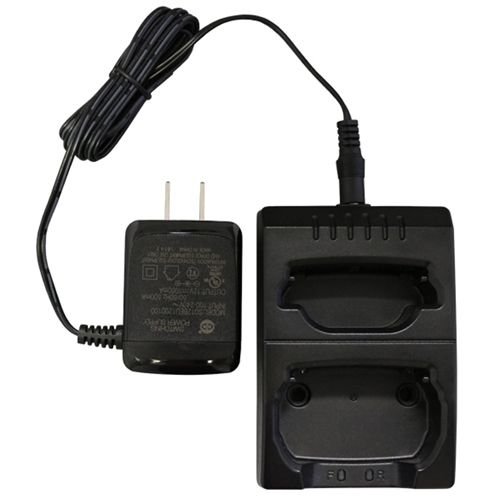

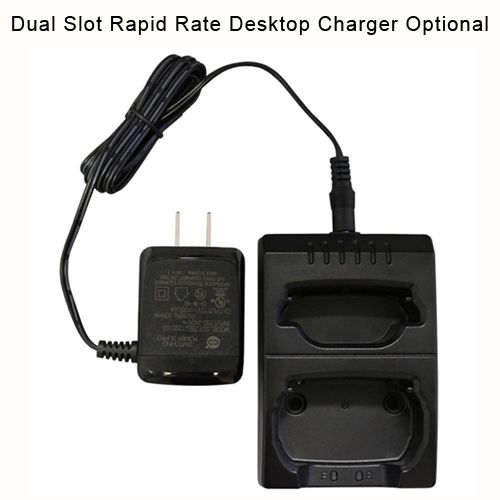

• Dual Slot Rapid Rate Desktop Charger

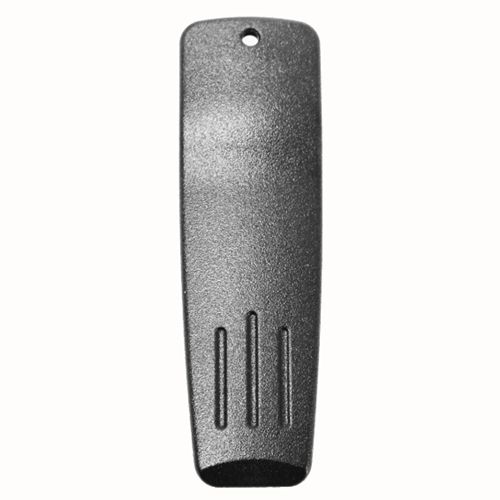

• Spring Loaded Belt Clip

Transmitter:

• RF Output Power: 5/1 Watts
• FM Modulation: 11K0F3E (12.5 kHz), 14K0F3E (20 kHz)
  , 16K0F3E (25 kHz)
• 4FSK Digital Modulation: 12.5 kHz Data Only 7K60FXD,
  12.5 kHz Data and Voice 7K60FXW
• Conducted/Radiated Emission: -36 dBm <1GHz,
  -30 dBm >1GHz
• Modulation Limiting: ±2.5 kHz (12.5 kHz), ±4.0 kHz (20 kHz),
  ±5.0 kHz (25 kHz)
• FM Noise: 40dB (12.5 kHz)
• Adjacent Channel Power: 60dB (12.5 kHz), 70dB (20/25 kHz)
• Audio Distortion: 3% maximum with 1kHz modulation
• Digital Vocoder Type: AMBE3000 Vocoder Chip with
  AMBE+2 Voice Compression Algorithm
• Digital Protocol: ETSI-TS102 361-1-2-3

Receiver:

• Sensitivity (Analog): 0.25µV @ 12dB SINAD
• Sensitivity (Digital): 0.22µ V/BER 5%
• Selectivity TIA-603 ETSI: >65dB (12.5 kHz), 70dB (20/25 kHz)
• Intermodulation TIA-603 ETSI: >70dB (12.5/20/25 kHz)
• S/N: 40dB (12.5 kHz), 43dB (20 kHz), 45dB (25 kHz)
• Audio Output Power: 1.0 Watt
• Audio Distortion: < 3% at rated output
• Audio Response: +1,~-3dB From 6dB per octive de-emphasis characteristics
• Spurious Emission: 70dB
