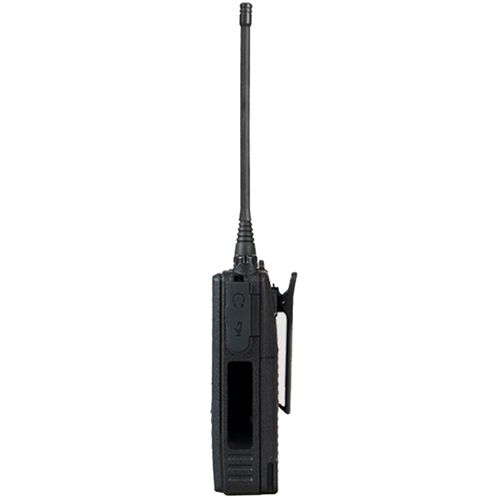

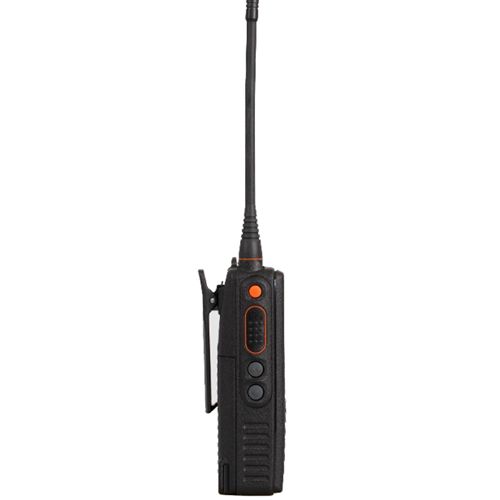

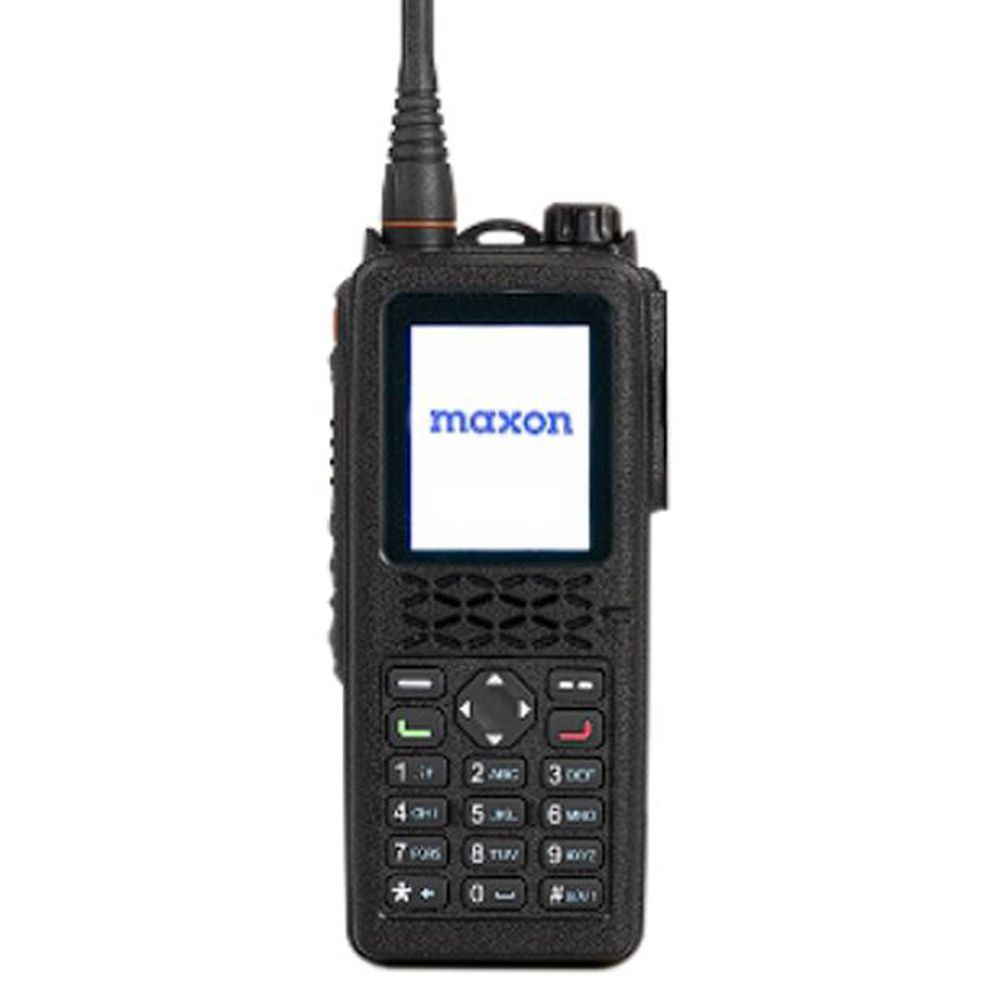

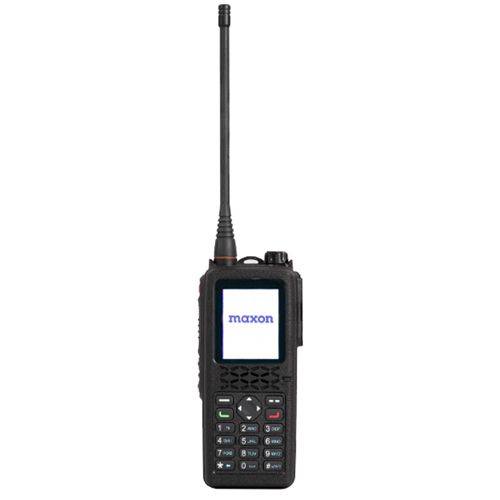

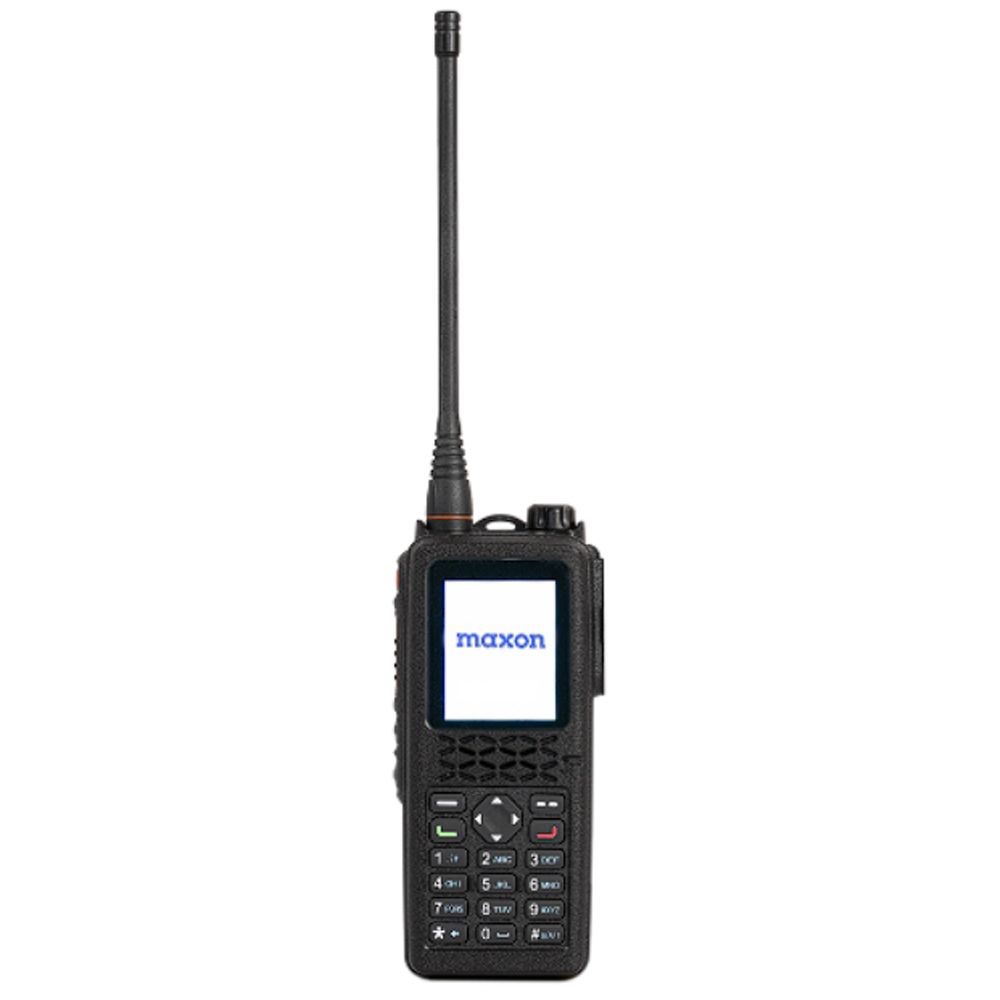

MDP7000 DMR Tier II Portable with Display Keypad UHF or VHF - 1024 Channels, 5/1W Output

Features:

• 64 Zones, 1024 Channels Available Combined Across Zones
• DMR Tier 2, Analog, and Mixed Mode Operation
• 5/1-Watt RF Power Settings (Programmable)
• 1 Watt Audio output
• DC+7.4V Li-ion / 2,600mAH Battery
• Multiple Scan Modes and Nuisance Delete
• Etiquette (Vibration) Function Standard
• Vivid 2.0" TFT LCD (176 x 220) Display
• Alpha-Numeric Full Keypad
• Contact List and Quick Call (240 Contacts)
• One Touch Text Messaging
• DTMF / 2-Tone Encode and Decode
• Voice Recording and Playback (Up to 63 recordings)
• Spanish Language Support
• Lone Worker Mode
• VOX (Voice Operated Transmit)
• Remote Stun / Revive / Monitor functions
• Programmable Side Buttons
• Controls Volume for MDS Series Wireless Loudspeakers
• IP67 (Waterproof)
• (H8) Multi-pin Locking Accessory Connector
• Encryption (AES-CTR 256 (Standard), DMRA-AES 256 (SW Option))
• Transmit Interrupt (SW Option)
• Man-Down Safety Feature (Factory Option)
• SFR (Single Frequency Repeater) (SW Option)
• CTCSS, DCS
• Emergency Button
• GPS (Factory Option)
• Busy Channel Lock (BCL) / Busy Channel Lock Override (BCLO) / Time-Out Timer (TOT)

Specifications:

• Channel Spacing (Analog): 12.5/25 kHz
• Channel Spacing (Digital): 12.5 kHz
• Digital Vocoder: AMBE++ Voice Compression Algorithm
• Dimensions (H/W/D): 5.1" x 2.5" x 1.5" (130.51 x 62.6 x 39.05 mm)
• Weight: 9.7 oz. (275 g)
• Frequency Stability: ±1.5 PPM (-30deg; to +60deg; C)
• Current Drain (maximum): Receive mode, rated audio out
  - 420 (Audio Max) Transmit mode – 1,200mA Standby mode – 100mA
• Battery Life (Hours): 18hrs (Digital); 15hrs (Analog)
• Operating Temperature: -30deg; C to + 60deg; C
• Storage Temperature: -40deg; C to + 85deg; C
• ESD: IEC 61000-4-2 / ±8KV / ±15 KV
• Approvals: FCC, IC, CE

Available Option:

• MDP-7124: VHF (136-174 MHz)
• MDP-7424: UHF (400-470 MHz)

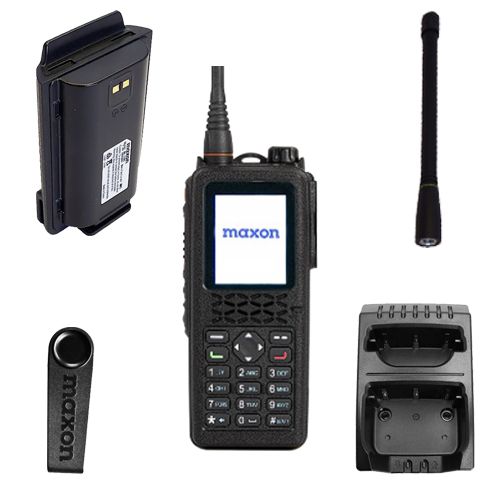

Included:

• Radio

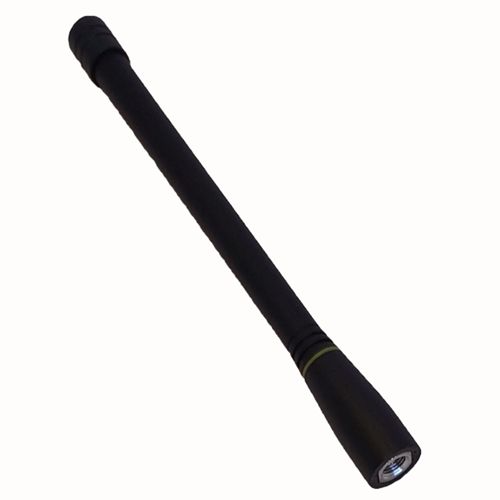

• Antenna (TSA-041/44)

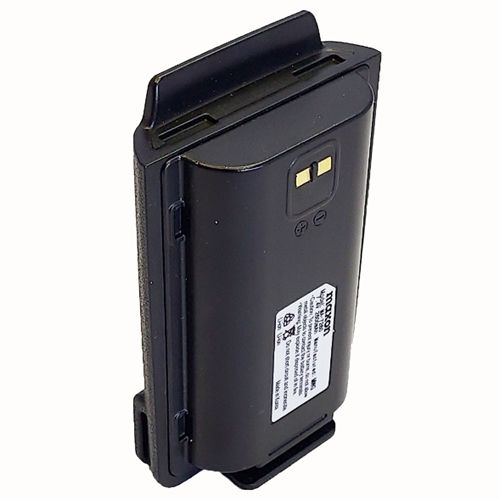

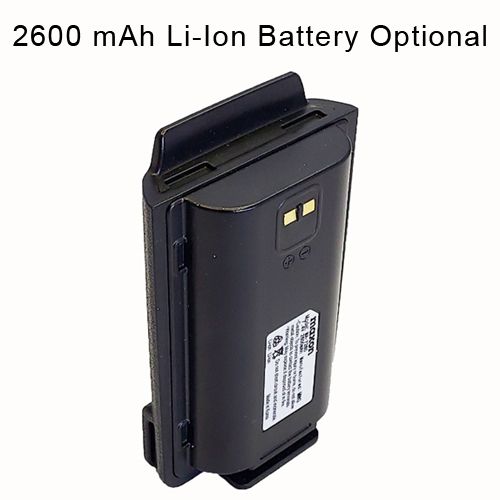

• 2600 mAh Li-Ion Battery (MA-7260)

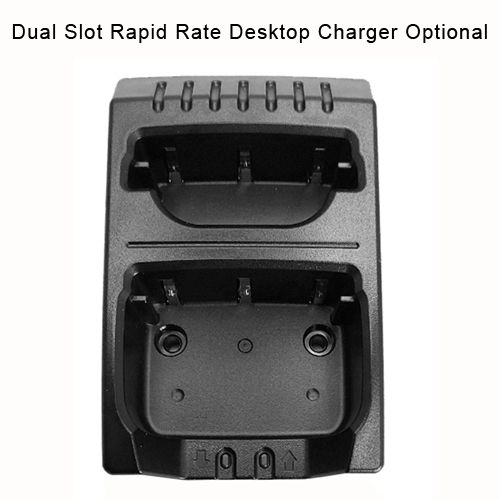

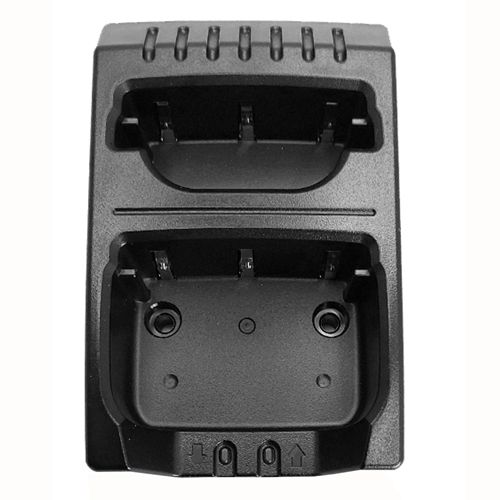

• Dual Slot Rapid Rate Desktop Charger

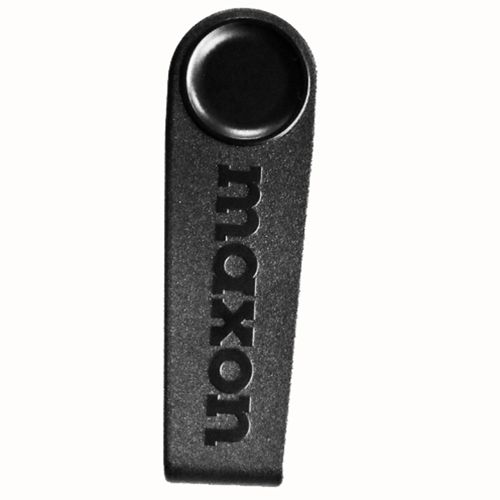

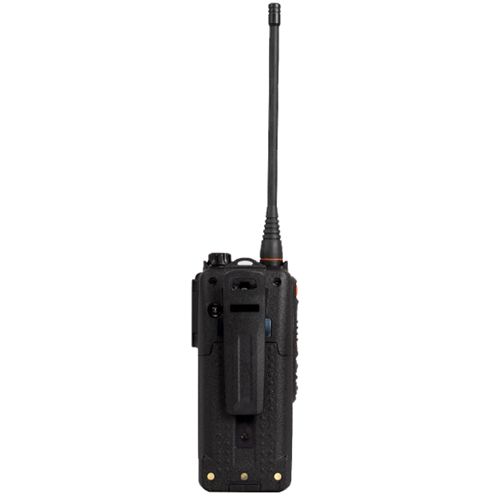

• Spring Loaded Belt Clip

Receiver:

• Sensitivity: 0.22uV 12 dB SINAD
• Squelch Sensitivity: 0.20uV 10dB SINAD
• Selectivity: 60dB @12.5KHz
• Spurious and Harmonic Rejection: -36 dBm
  (< 1GHz) -30 dBm (> 1GHz)
• FM Hum and Noise: 40dB (12.5KHz)
• Audio Output Power: 1 Watt across a 16-ohm load
• Audio Distortion: Less than 3% at rated output
• Audio Response: +1, -3 dB from 6dB per octave
  de-emphasis Characteristic from 300 ~ 3000Hz
• Input Impedance: 50 ohms

Transmitter:

• RF Output Power: 5/1 Watts
• Adjacent Channel Power: 60 dB @12.5 kHz
• Spurious and Harmonic: -36 dBm (< 1GHz) -30 dBm (> 1GHz)
• FM Hum and Noise: 40dB (12.5 kHz)
• Audio Distortion: +1, -3dB from 6dB per octave
  preemphasis Characteristic from 300 ~ 3000Hz
• Output Impedance: 50ohms
