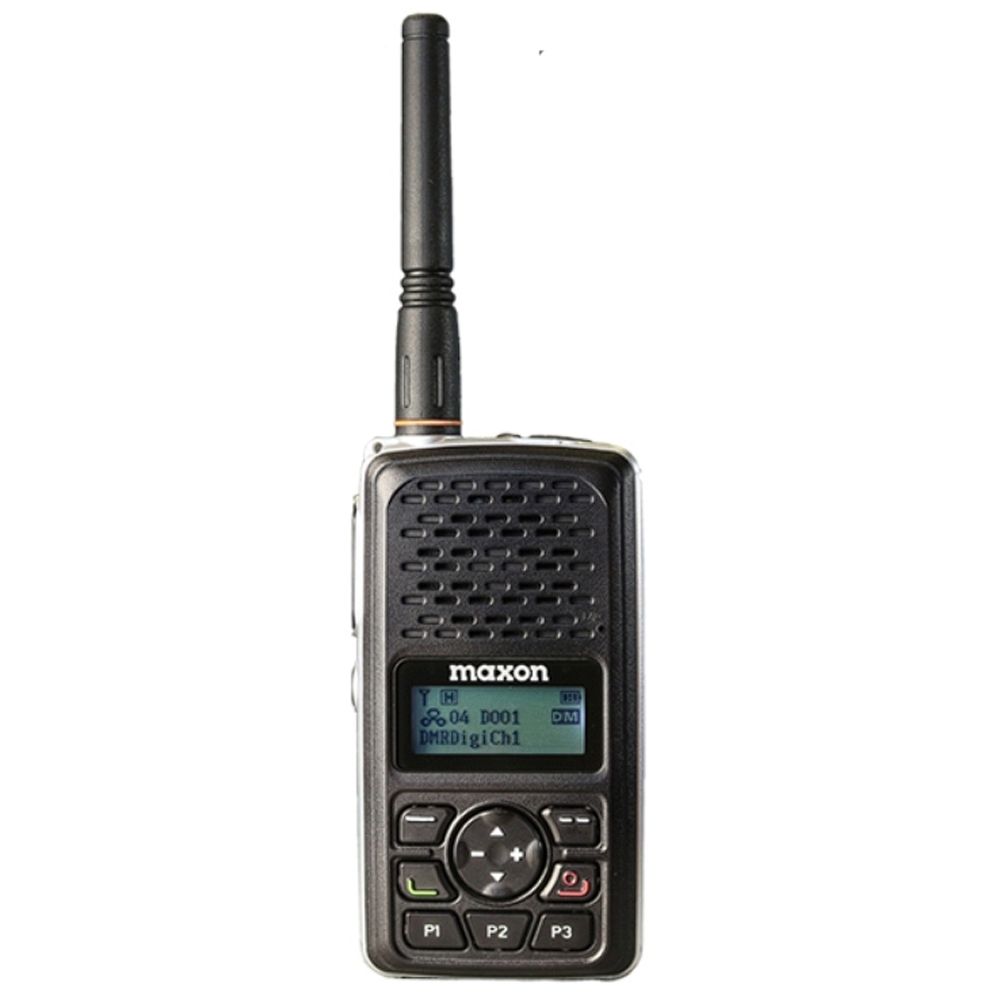

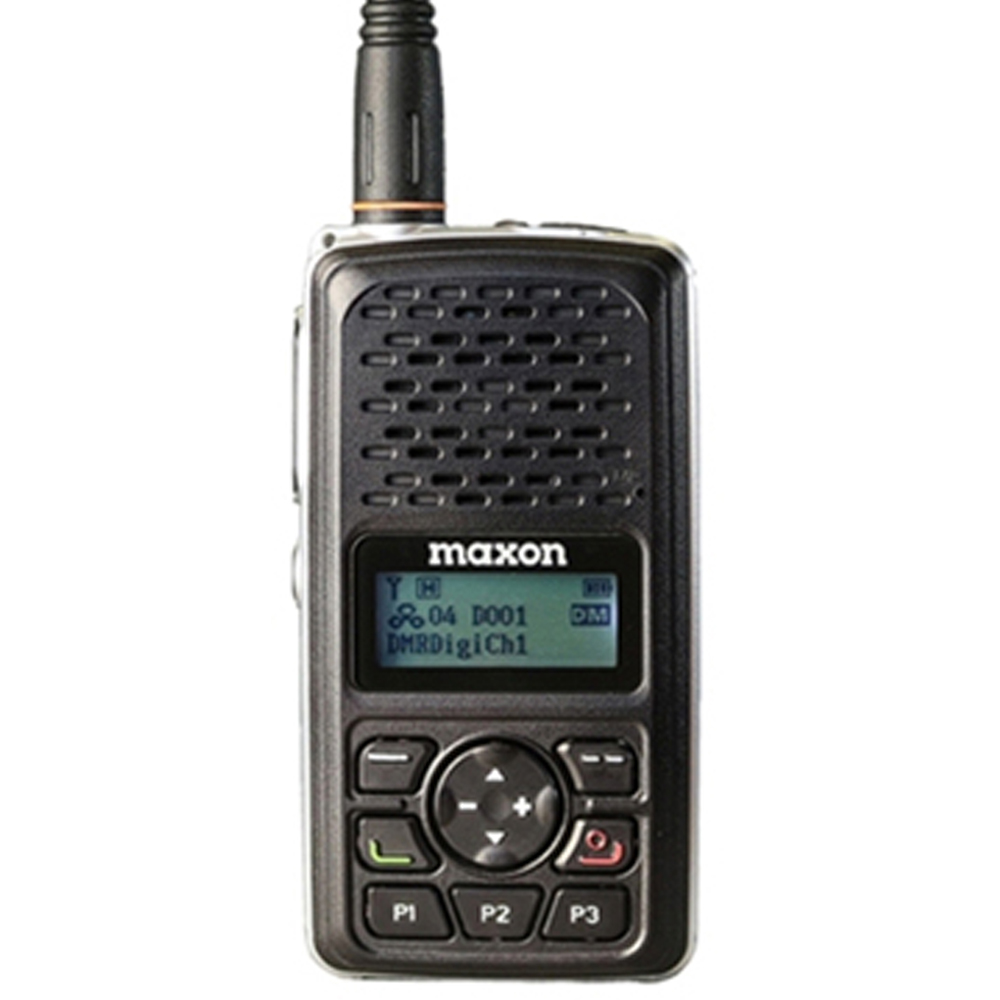

TPD-8424E Tier II Radio UHF 512 Channels, 3W Digital 2W Analog Output

Features:

• Digital (Tier II - TDMA) or Analog Mode
• 512 Channel Capacity; 16 Zones with 32 Channels per zone (1 zone = Max 32 Channels)
• Mixed Channel Operation; Analog reception in Digital mode
• RF Power Output - Maximum 3 watts
• Choice of Case Color - Black, Blue, or Orange
• High Capacity 2,200 mAh Li-Ion Battery
• Battery Save
• CTCSS/DCS (Analog Mode)
• Stores 10 Messages (Up to 40 Characters Each)
• Secure Communications - AES 256 bit Encryption
• USB Charging through Dual Slot Desktop Charger or direct through radio
• Lone Worker Mode
• Multiple Scan Modes
• VOX (Voice Operated Transmit)
• Busy Channel Lock (BCL) / Busy Channel Lock Override (BCLO)
• Time-Out Timer (TOT)
• Emergency / Siren
• Built in Flash Lamp
• Etiquette (Vibration) function
• Voice recording and playback
• Six Squelch Levels (Analog mode)
• Remote Radio Stun / Revive
• 1 Watt Audio Output
• Locking Audio Accessory Connector
• 3 Lines Mono LCD Display (Numeric or Alphanumeric)
• Die Cast Aluminum Frame
• Direct Call contact list (54 Contacts)
• One-Touch Tex
• Programmable Buttons
• Etiquette (Vibrate) Mode
• IP54 Certified
• Repeater Ready

Specifications:

• TPD-8424E UHF: 440-470 MHz
• Channel Capacity: 512; 16 Zones, max 32 Ch Per Zone
• Digital: DMR Tier II TDMA
• Channel Spacing: 25/20/12.5 kHz (Analog) 12.5 kHz (Digital) 2 Time Slots of 6.25 Each
• Operating Voltage: DC +3.7V; 2,200 mAh Li-Ion Batter
• Battery Capacity: 2200 mAh Li-Ion
• Frequency Stability: ± 1.0 PPM (-30° to +60° C)
• Antenna Impediance: 50 Ω
• Dimensions (H/W/D): 3.89 x 2 x .82” (99x51x21 mm)
• Weight (W/ Battery): 5.86 oz. (160 g.)
• Case/Frame: Polycarbonate/Aluminum Die Cast
• LCD Display: 3 Lines Mono - Choice of Alphanumeric or Numeric
• Battery Life (Hours): Analog: 10.5 Hours, Digital:14 Hours 90/5/5 duty cycle
• Current Drain (maximum): Receive mode, rated audio out - 320 mA (Audio Max)
  Transmit mode - 1,800mA Standby mode - 100mA
• Operating Temperature: -22° to 140° F (-30° to 60° C)
• Storage Temperature: -40° to 185° F (-40° to 85° C)
• ESD: IEC 61000-4-2/±8KV/±15 KV

Available Colours:

• Black

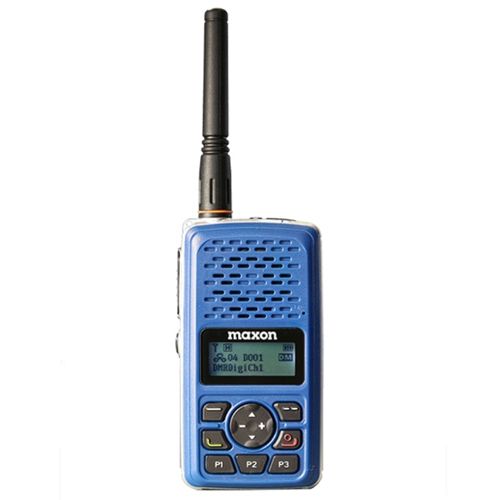

• Blue

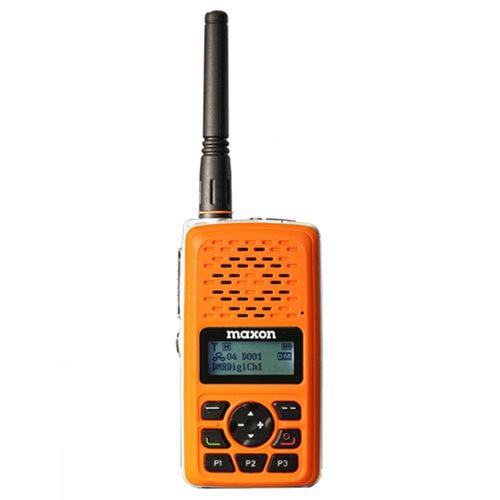

• Orange

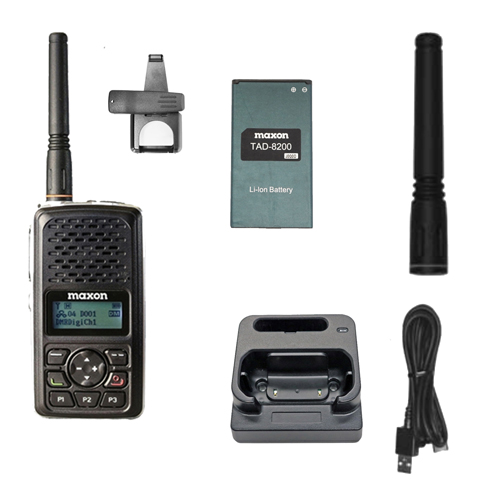

Included:

• Radio

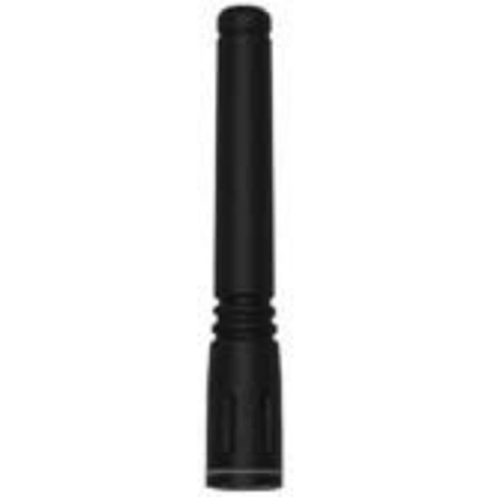

• Antenna (TAD-842)

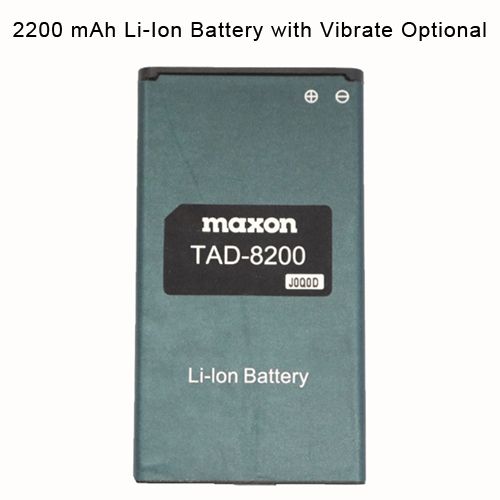

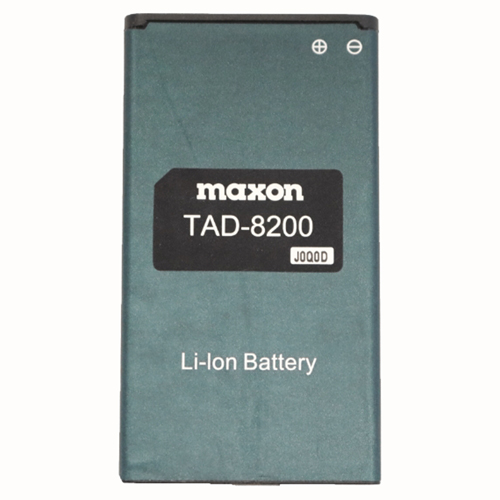

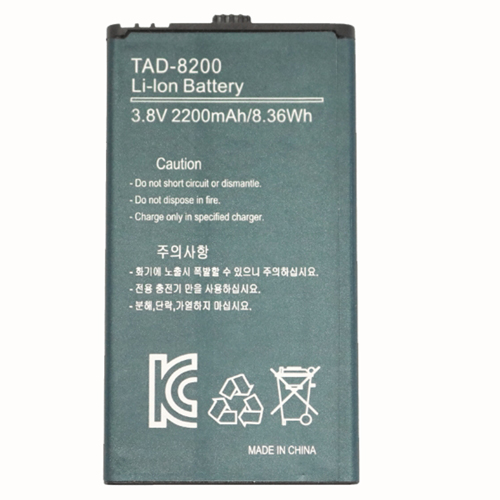

• Battery (TAD-8200)

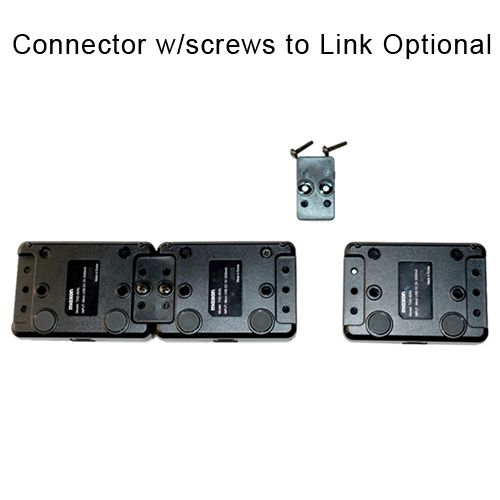

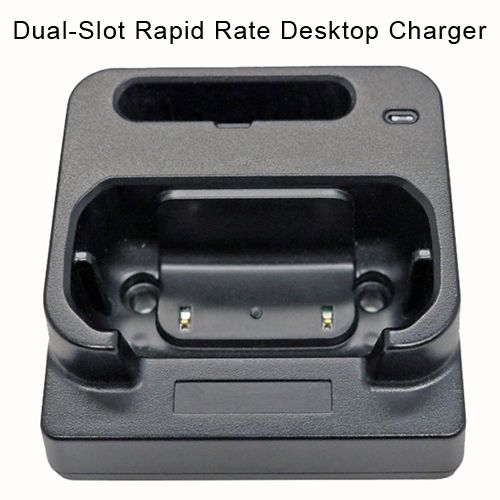

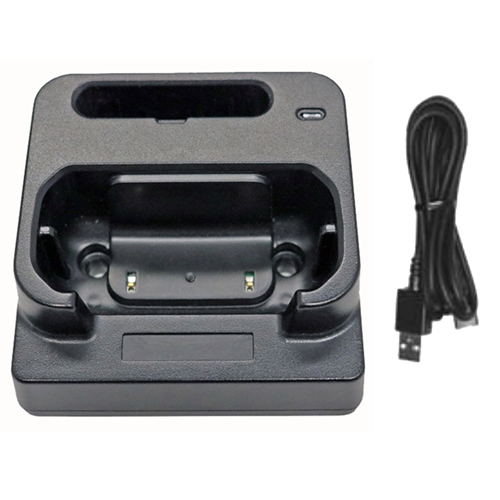

• Charger Base (USB Cord)

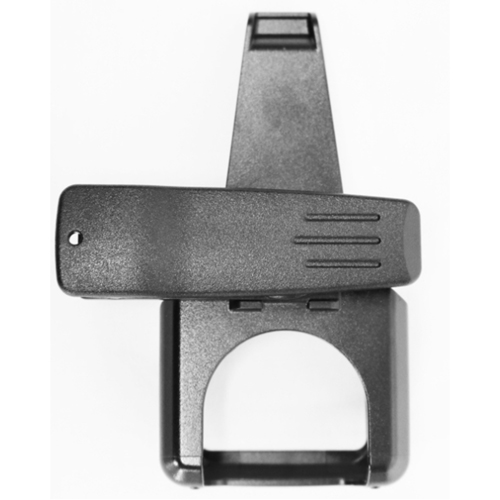

• Belt Clip

Transmitter:

• RF Output Power: 3 Watt Digital, 2 Watt Analog
• FM Modulation: 11K0F3E (12.5 kHz), 14K0F3E
  (20kHz), 16K0F3E (25 kHz)
• 4FSK Digital Modulation: 12.5 kHz Data Only: 7K60FXD,
  12.5 kHz Data & Voice: 7K60FXW
• Conducted/Radiated Emission: -36dBm<1GHz, -30dBm>1GHz
• Modulation Limiting: ±2.5 kHz (12.5 kHz), ±4.0 kHz
  (20kHz), ±5.0 kHz (25 kHz)
• FM Noise: 40dB (12.5 kHz)
• Adjacent Channel Power: 60dB (12.5 kHz), 70dB (20/25 kHz)
• Audio Distortion: 3% maximum with 1kHz modulation
• Digital Vocoder Type: AMBE3000 Vocoder Chip
  with AMBE+2 Voice Compression Algorithm
• Digital Protocol: ETSI-TS102 361-1-2-3
• Audio Frequency Response: +1, -3dB from 6dB
  per octave pre-emphasis
  Characteristic from 300 ~ 3000Hz
• Digital Vocoder: AMBE3000 with AMBE+2 Voice Compression Algorithm

Receiver:

• Sensitivity (Analog): .22µ V 12dB SINAD
• Sensitivity (Digital): .22µ V/BER 5%
• Selectivity TIA-603 ETSI: >65dB (12.5 kHz), 70dB (20/25 kHz)
• Intermodulation TIA-603 ETSI: >70dB (12.5/20/25 kHz)
• S/N: 40dB (12.5 kHz), 43dB (20 kHz), 45dB (25 kHz)
• Audio Output Power: 1.0 Watt
• Audio Distortion: < 3% at rated output
• Audio Response: +1,~ -3dB From 6dB per octive
  de-emphasis characteristics
• Spurious Emission: 70dB
• Spurious: -36dBm (<1GHz) -30dBm (<1GHz)
