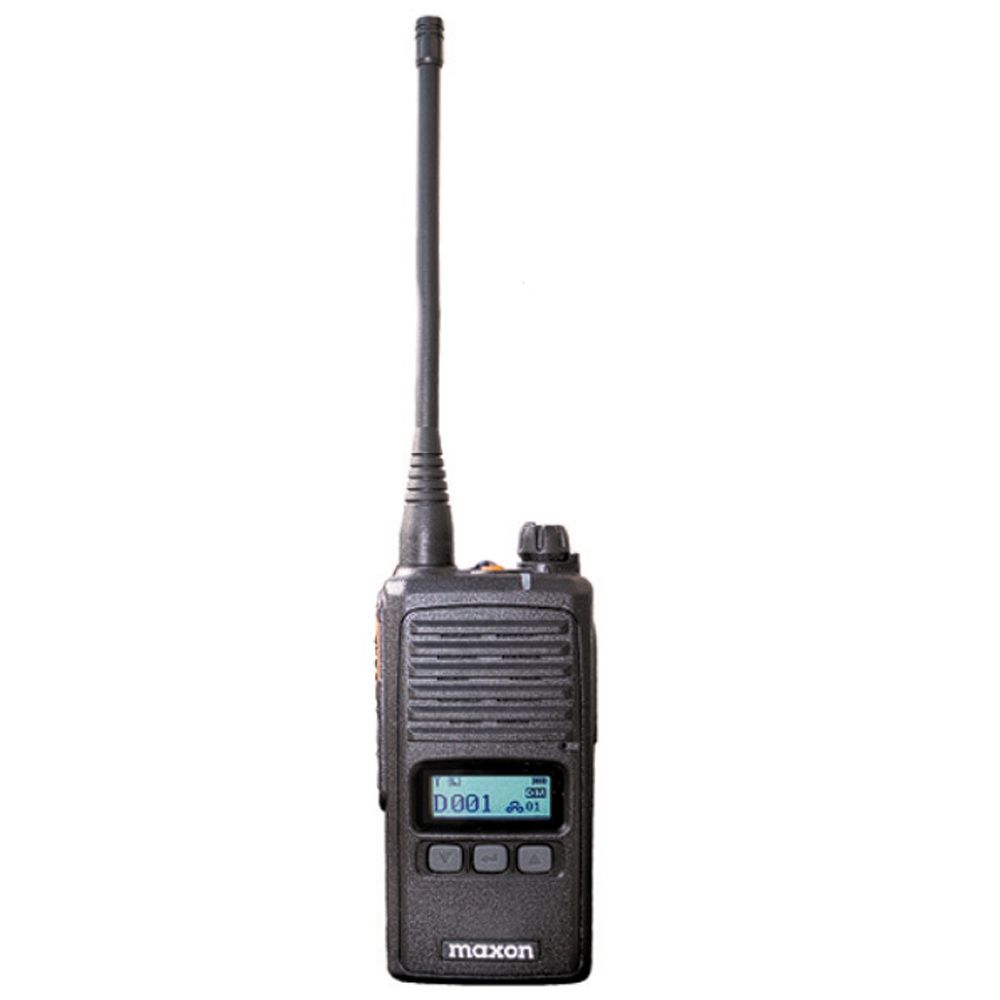

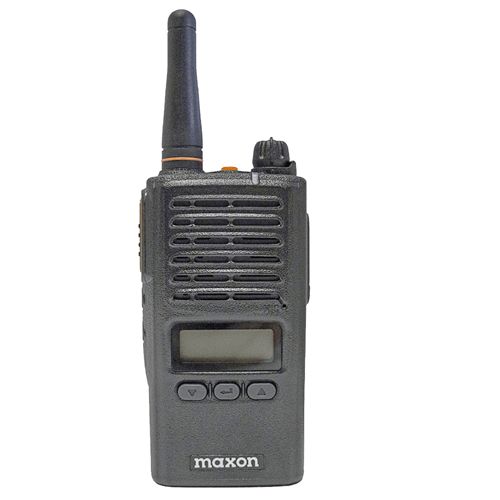

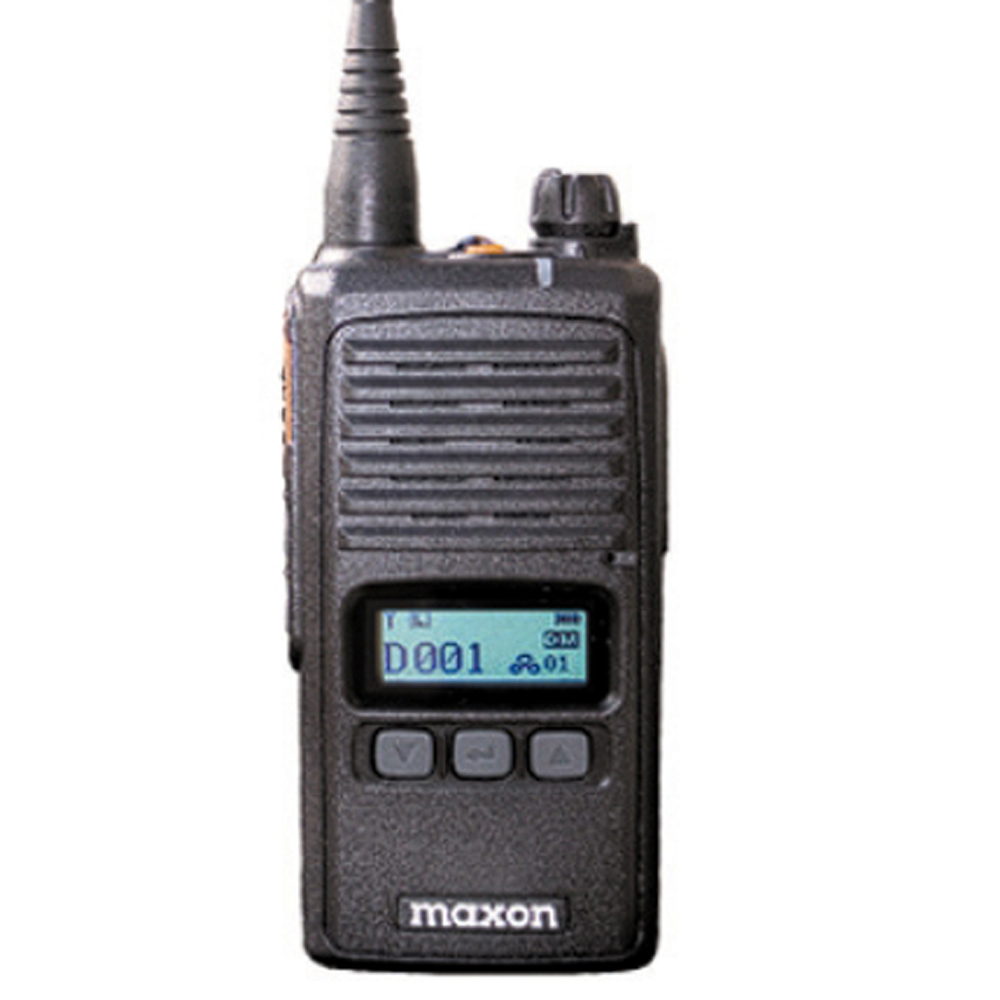

TSD-4000 DMR Tier II Digital Display Radio UHF or VHF - 512 Channels, 5/1W Output

Features:

• 512 Channels (32 Ch / 16 Zones)
• 5W RF Output Power VHF & UHF
• 2600 mAh Li-Ion Battery
• Battery Life Based on a 90/5/5 Duty Cycle:
• 1 Watt Audio Output
• Direct or Repeater TDMA Tier II Mode
• Ch. Tri-Mode - DMR, Analog or Mixed
• Smooth Analog-to-Digital Transition
• Remote Stun/Revive
• Encryption AES (128, 192, 256)
• Contact Menu for Individual & Group Calling
• Voice Recording
• Lone Worker
• Call Log
• Flashlight
• Remote Monitoring
• CTCSS/DCS, VOX
• 2-Pin Audio Connector
• Dust & Water Protection IP-54 Standard
• Text Messaging
• LCD Display
• Multiple Scan Modes
• Adjustable Settings Menu
• Approvals: FCC, IC, CE
• Clone Programming w/Cable
• 1 Year Standard Warranty
• 2-3 Year Extension Option

Transmitter:

• RF Output Power: 5/1 Watts
• FM Modulation: 11K0F3E (12.5 kHz), 14K0F3E
  (20kHz), 16K0F3E (25 kHz)
• 4FSK Digital Modulation: 12.5 kHz Data Only: 7K60FXD,
  12.5 kHz Data & Voice: 7K60FXW
• Conducted/Radiated Emission: -36dBm<1GHz, -30dBm>1GHz
• Modulation Limiting: ±2.5 kHz (12.5 kHz), ±4.0 kHz (20
  kHz), ±5.0 kHz (25 kHz)
• FM Noise: 40dB (12.5 kHz)
• Adjacent Channel Power: 60dB (12.5 kHz), 70dB (20/25 kHz)
• Audio Distortion: 3% maximum with 1kHz modulation
• Digital Vocoder Type: AMBE3000 Vocoder Chip
  with AMBE+2 Voice Compression Algorithm
• Digital Protocol: ETSI-TS102 361-1-2-3

Specifications:

• Digital: DMR Tier II TDMA
• Channel Spacing: 25/20/12.5 kHz (Analog)
  12.5 kHz (Digital) 2 Time Slots of 6.25 Each
• Operating Voltage: 7.4VDC
• Frequency Stability: ± 1.0 PPM (-30° to +60° C)
• Antenna Impediance: 50 Ω
• Dimensions (H/W/D): 4.6 x 2.16 x 1.33”(118 x 55 x 34 mm)
• Weight (w/ Battery): 9.0 oz. (234 g.)
• Case/Frame: Polycarbonate/Aluminum Die Cast
• Battery Life (Hours): Analog 17 Hours,
  Digital 23 Hours 90/5/5 duty cycle
• Operating Temperature: -30° C to +60° C
• Storage Temperature: -40° C to +85° C
• ESD: IEC 61000-4-2/±8KV/±15 KV
• U.S. Military Standard: MIL-STD 810F/G

Available Options:

• TSD-4124: VHF (136-174 MHz)
• TSD-4424: UHF (410-470 MHz)

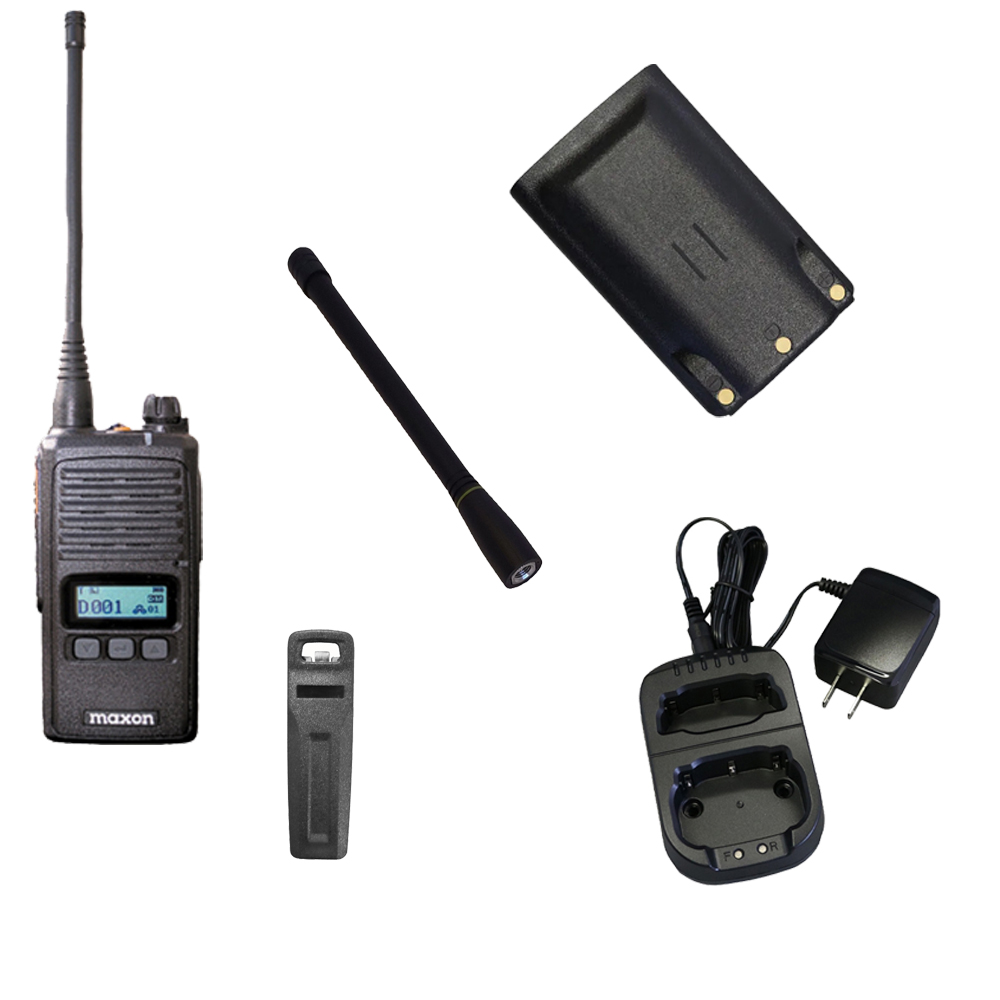

Included:

• Radio

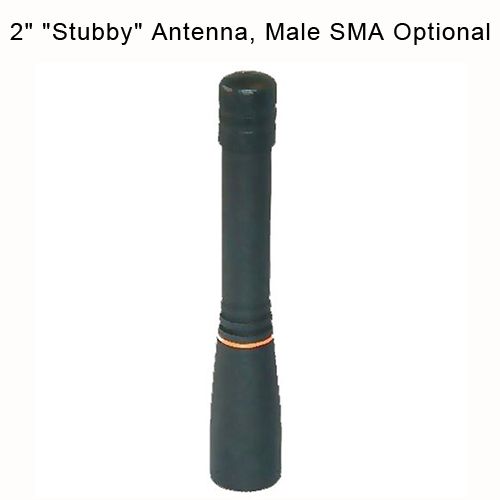

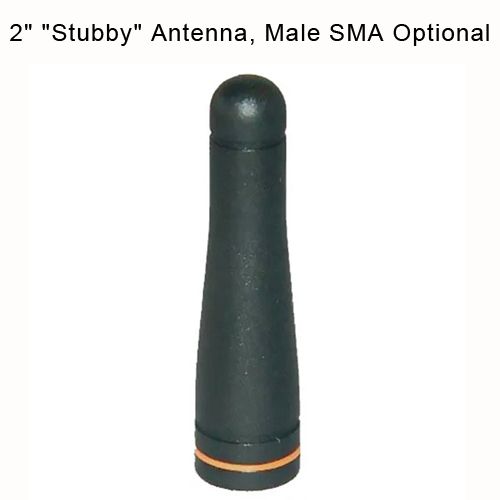

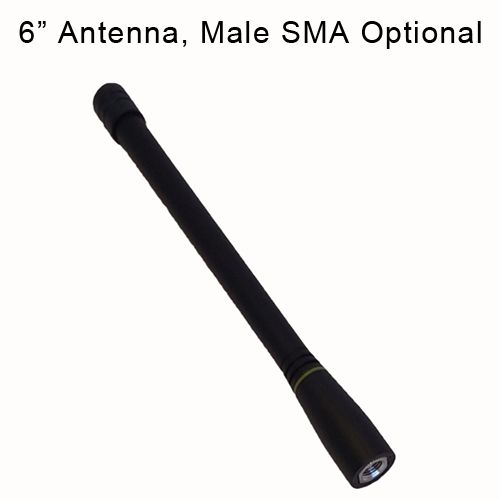

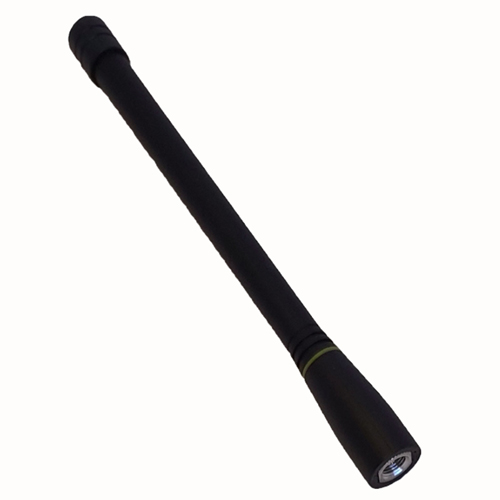

• Antenna (TSA-041/ TSA-044)

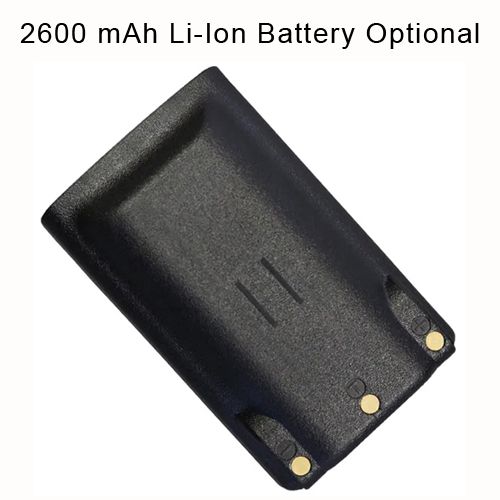

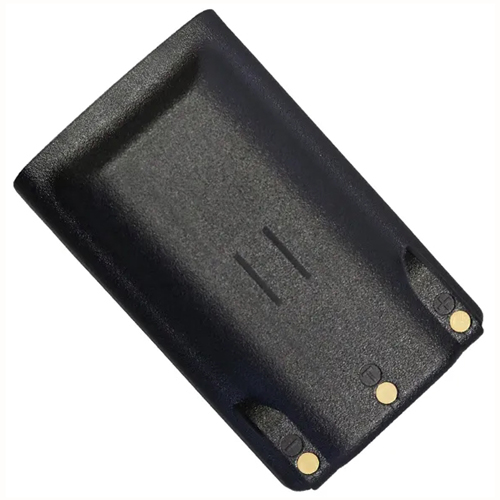

• 2600 mAh Li-Ion Battery (TSA-4260)

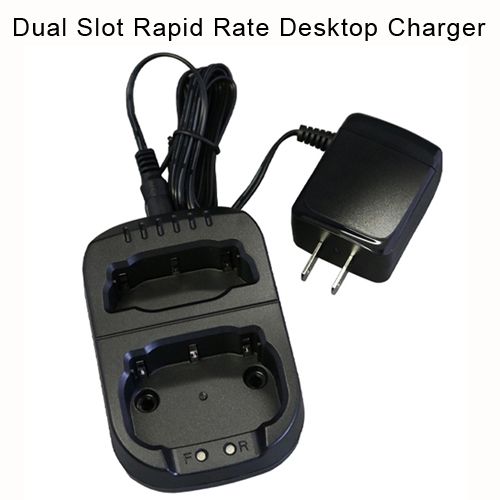

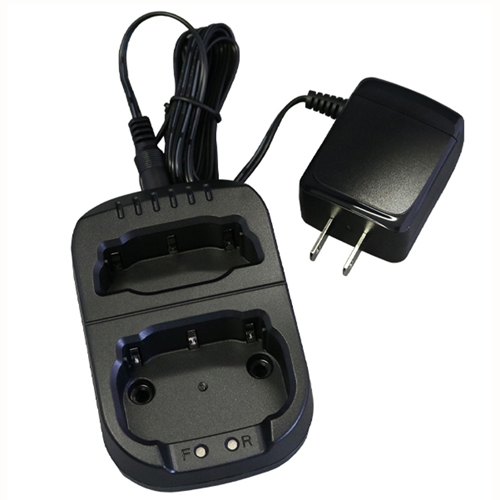

• Dual Slot Rapid Rate Desktop Charger (TSA-0400)

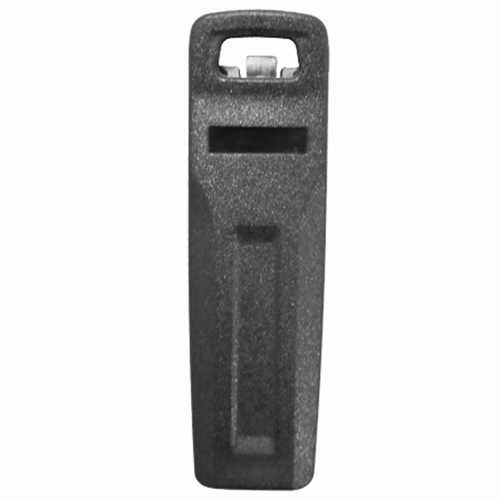

• Spring Loaded Belt Clip (TSA-40BC)

Receiver:

• Sensitivity (Analog): 0.25µV @ 12dB SINAD
• Sensitivity (Digital): 0.22µ V/BER 5%
• Selectivity TIA-603 ETSI: >65dB (12.5 kHz), 70dB (20/25 kHz)
• Intermodulation TIA-603 ETSI: >70dB (12.5/20/25 kHz)
• S/N: 40dB (12.5 kHz), 43dB (20 kHz), 45dB (25 kHz)
• Audio Output Power: 1.0 Watt
• Audio Response: +1,~ -3dB From 6dB per octive
  de-emphasis characteristics
• Spurious Emission: 70dB
