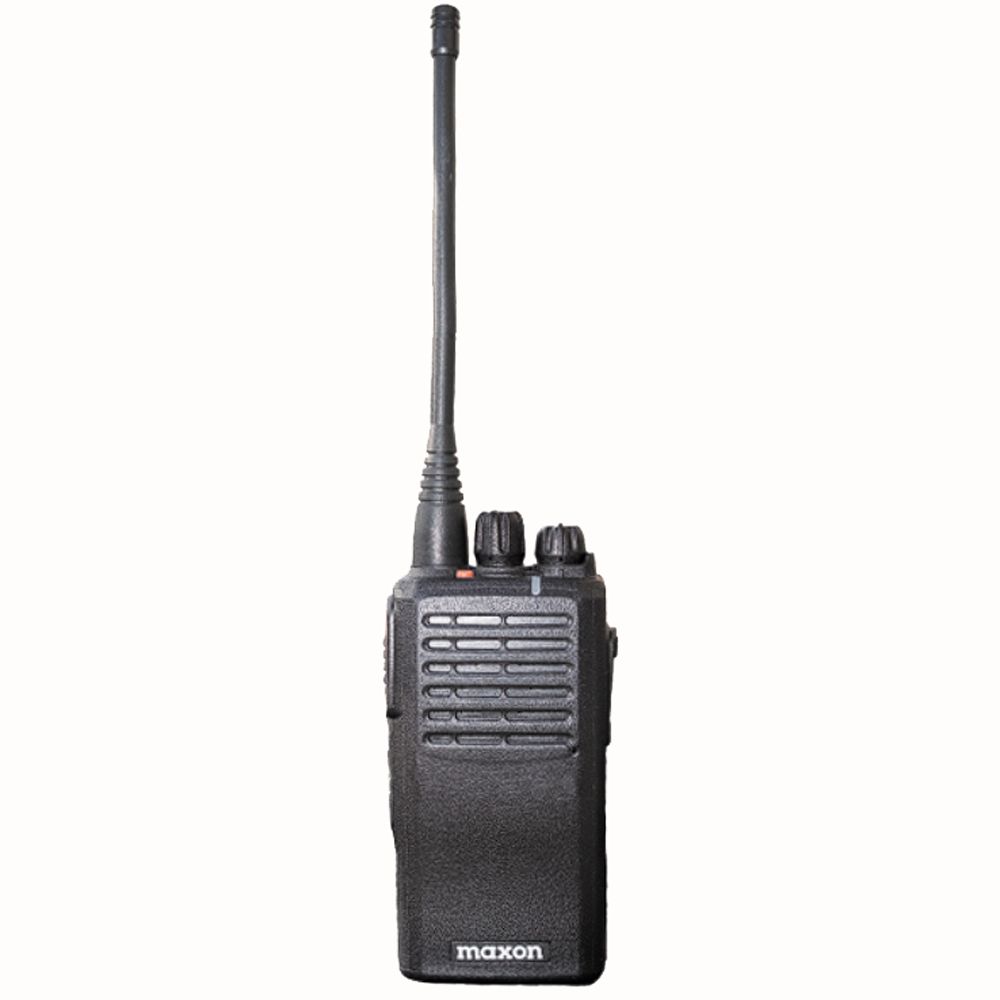

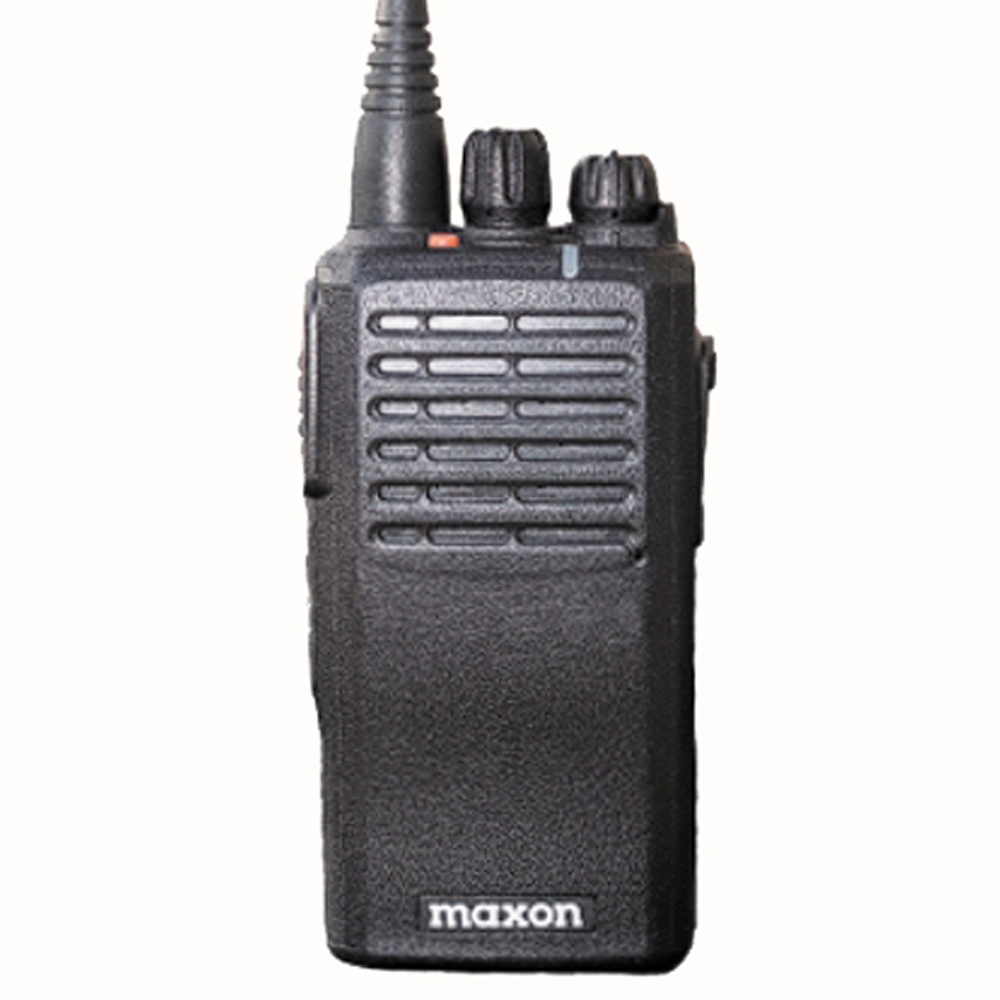

TSD-4000 Series Digital Non-Display Radios for Steady Performance

Features:

• 512 Channels (Display: 32 Ch / 16 Zones, Non Display: 16 Ch / 32 Zones)
• 5W RF Output Power VHF & UHF
• 2600 mAh Li-Ion Battery
• Battery Life Based on a 90/5/5 Duty Cycle:
• 23 Hours Digital and 17 Hours Analog
• 1 Watt Audio Output
• Direct or Repeater TDMA Tier II Mode
• Ch. Tri-Mode - DMR, Analog or Mixed
• DMR Tier II TDMA/Analog per Channel
• Smooth Analog-to-Digital Transition
• Remote Stun/Revive
• Encryption AES (128, 192, 256)
• Contact Menu for Individual & Group Calling (Display)
• Voice Recording (Display)
• Lone Worker (Display)
• Call Log (Display)
• Flashlight (Display)
• Remote Monitoring VOX
• CTCSS/DCS, VOX
• 2-Pin Audio Connector
• IP54 Certified
• Multiple Scan Modes

Transmitter:

• RF Output Power: 5/1 Watts
• FM Modulation: 11K0F3E (12.5 kHz), 14K0F3E
  (20kHz), 16K0F3E (25 kHz)
• 4FSK Digital Modulation: 12.5 kHz Data Only:
  7K60FXD,12.5 kHz Data & Voice: 7K60FXW
• Conducted/Radiated Emission -36dBm<1GHz, -30dBm>1GHz
• Modulation Limiting ±2.5 kHz (12.5 kHz),
  ±4.0 kHz (20kHz), ±5.0 kHz (25 kHz)
• FM Noise: 40dB (12.5 kHz)
• Adjacent Channel Power: 60dB (12.5 kHz), 70dB (20/25 kHz)
• Audio Distortion: 3% maximum with 1kHz modulation
• Digital Vocoder Type: AMBE3000 Vocoder Chip
  with AMBE+2 Voice Compression Algorithm
• Digital Protocol: ETSI-TS102 361-1-2-3

Specifications:

• Channel Capacity: 512; 16 Ch. w/32 Zones
• Digital: DMR Tier II TDMA
• Channel Spacing: 25/20/12.5 kHz (Analog)
  12.5 kHz (Digital) 2 Time Slots of 6.25 Each
• Operating Voltage: 7.4VDC

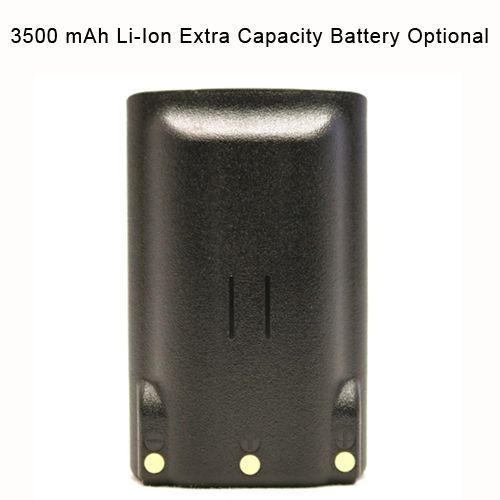

• Battery Capacity: 2600 mAh Li-Ion
• Frequency Stability: ± 1.0 PPM (-30° to +60° C)
• Antenna Impediance: 50 Ω
• Dimensions (H/W/D): 4.6 x 2.16 x 1.33”(118 x 55 x 34 mm)
• Weight (w/ Battery): 9.0 oz. (234 g.)
• Case/Frame: Polycarbonate/Aluminum Die Cast
• Battery Life (Hours): Analog: 17 Hours,
  Digital: 23 Hours 90/5/5 duty cycle
• U.S. Military Standard: MIL-STD 810F/G
• Operating Temperature: -30° C to +60° C
• Storage Temperature: -40° C to +85° C
• ESD: IEC 61000-4-2/±8KV/±15 KV

Available Options:

• TSD-4116: VHF (136-174 MHz)

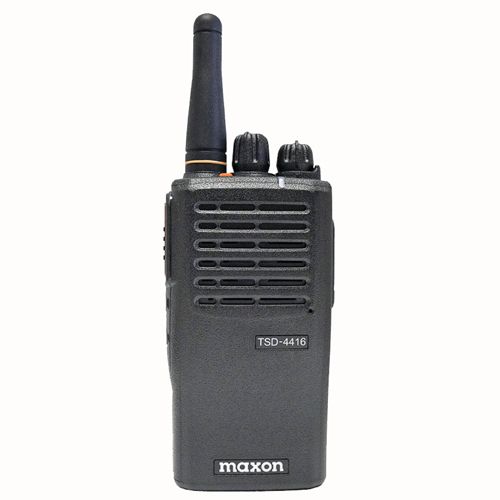

• TSD-4416: UHF (410-470 MHz)

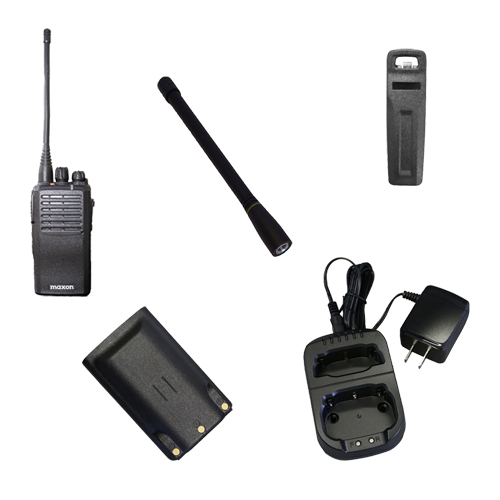

Included:

• Radio

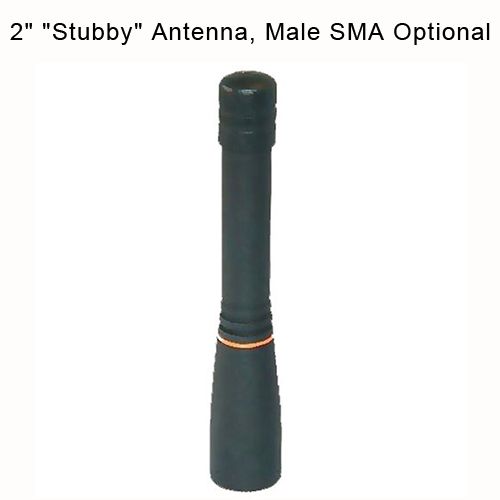

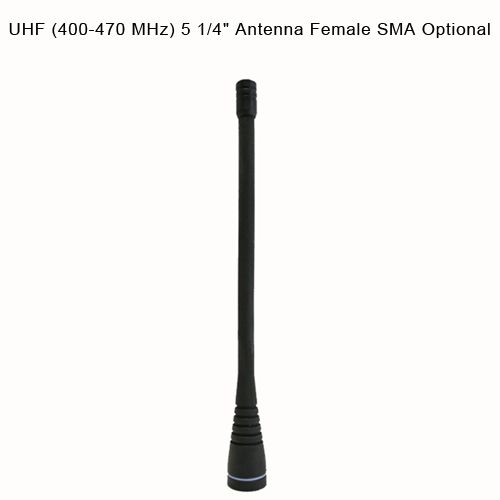

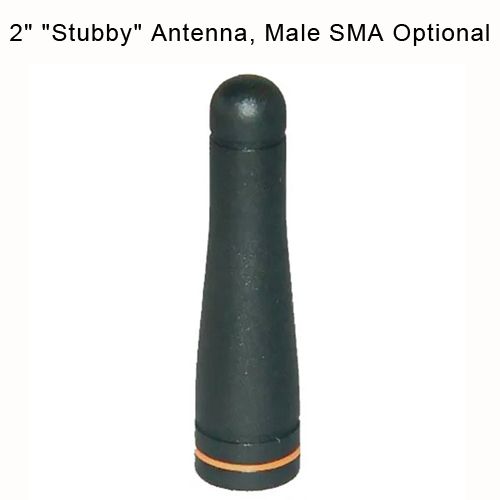

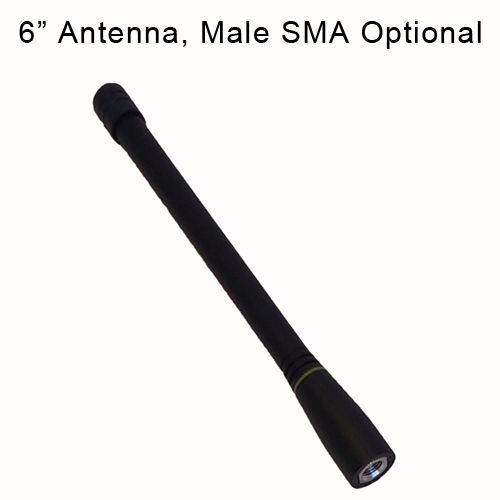

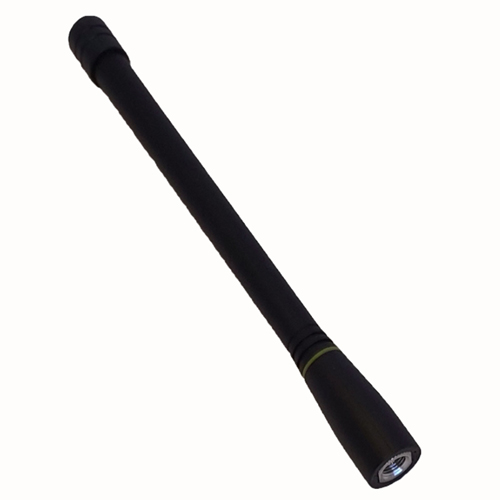

• Antenna (TSA-041/044)

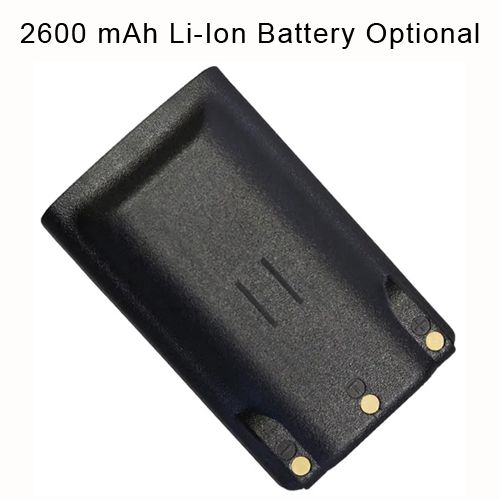

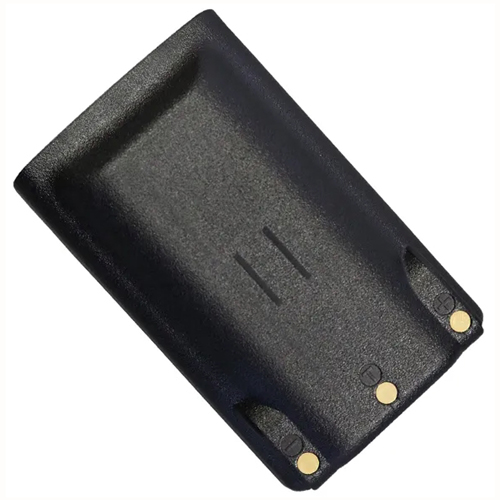

• Battery (TSA-4260)

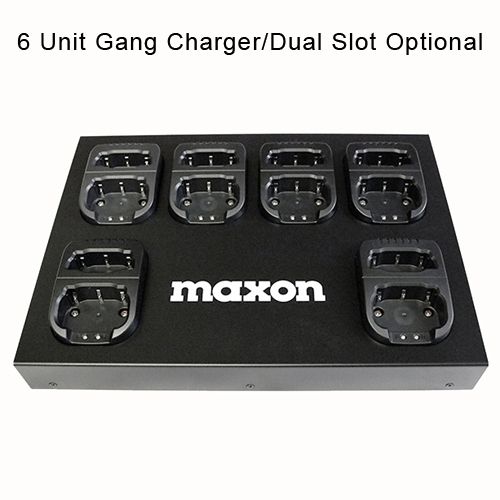

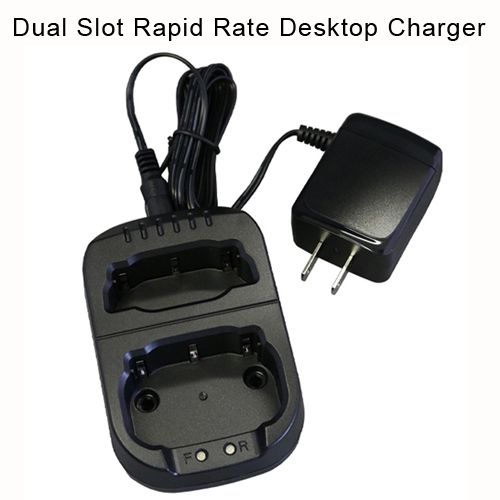

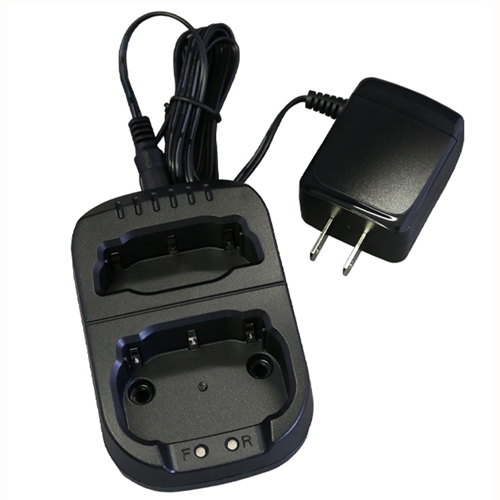

• Desktop Charger

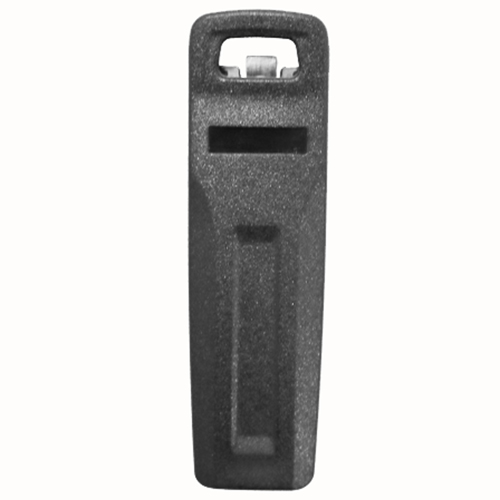

• Belt Clip

Receiver:

• Sensitivity (Analog): 0.25µV @ 12dB SINAD
• Sensitivity (Digital): 0.22µ V/BER 5%
• Selectivity TIA-603 ETSI: >65dB (12.5 kHz), 70dB (20/25 kHz)
• Intermodulation TIA-603 ETSI: >70dB (12.5/20/25 kHz)
• S/N: 40dB (12.5 kHz), 43dB (20 kHz), 45dB (25 kHz)
• Audio Output Power: 1.0 Watt
• Audio Distortion: < 3% at rated output
• Audio Response: +1,~ -3dB From 6dB per octive
  de-emphasis characteristics
• Spurious Emission: 70dB
