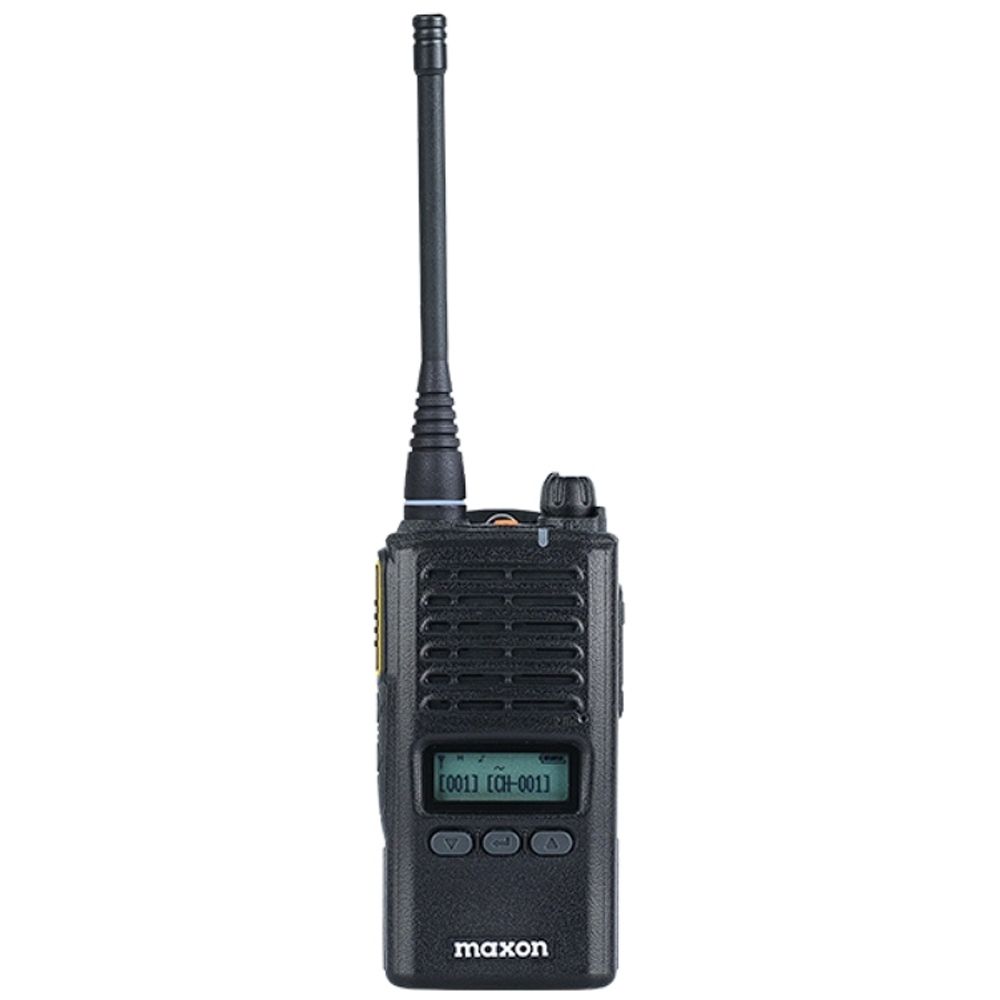

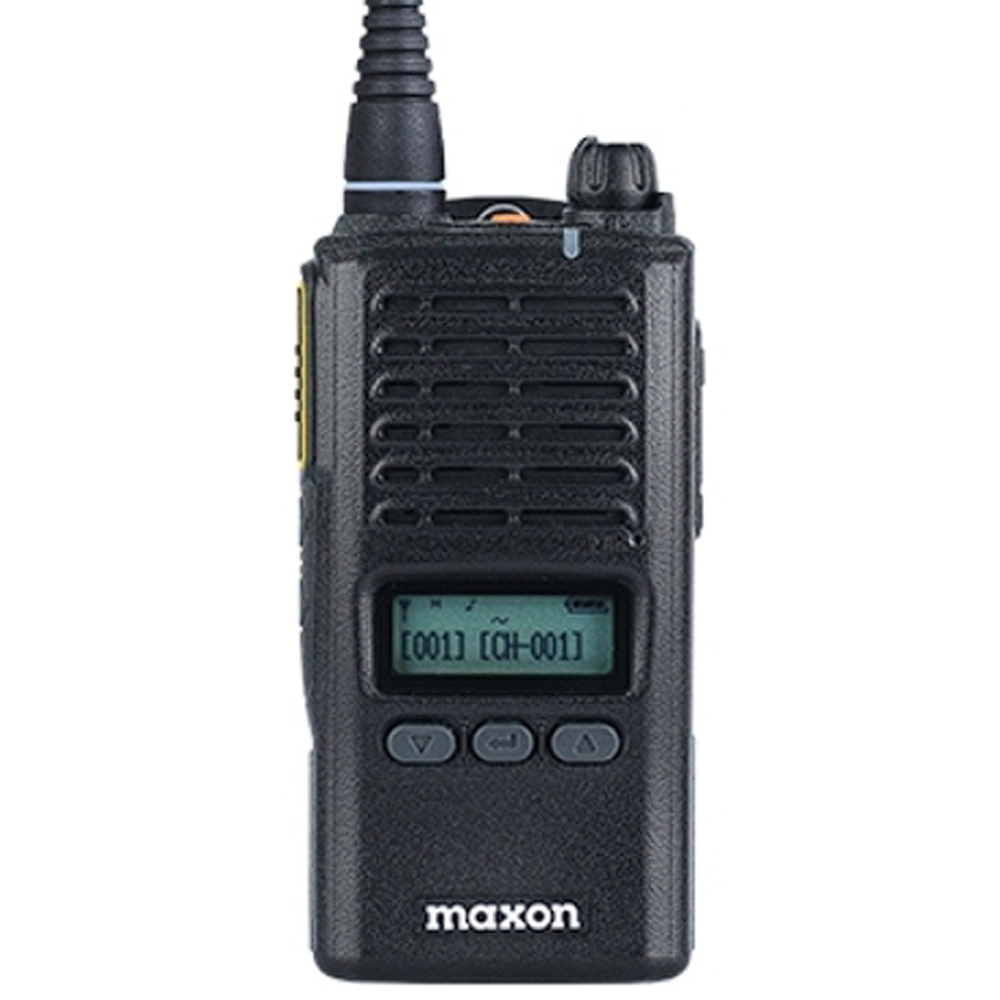

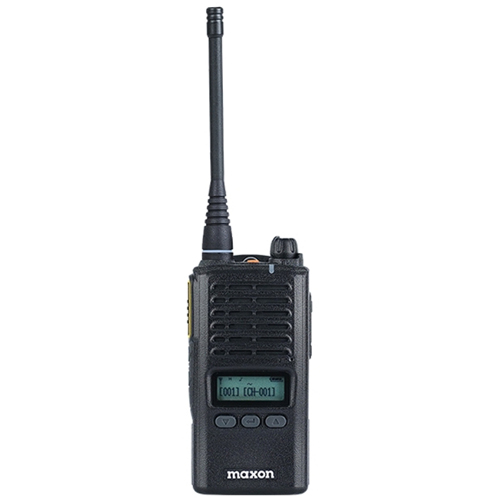

MP-4000 Series Display Radios (UHF or VHF) 1024 Channels 5/2W Output

The MP-4000 Series Display Radio offers 5/2 Watt VHF/UHF performance, 1024 channels in 32 groups, and a clear LCD display for organized, efficient communication. This model supports DTMF encoding and decoding, programmable buttons, scan, monitor, VOX, and emergency alert, making it suitable for schools, hotels, retail spaces, and property management. With IP54 certification and a 2600 mAh Li Ion battery, it provides dependable operation, long runtime, and durability in demanding workplaces where reliability is essential.

It also features lone worker capability, flashlight, battery saver, time-out timer, TX inhibit, BCLO, and CTCSS/DCS to enhance safety and control. Clone programming with a cable and PC programmability simplifies setup for fleets, while the included antenna, charger, belt clip, and user guide make deployment easy and cost-effective. This dependable design offers accessible communication for daily operations, helping teams stay organized and connected.

Features:

  • 5/2 Watt UHF or VHF
  • 1,024 Channels / 32 Groups (Display)
  • Scan
  • BCLO
  • TX Inhibit
  • Time Out Timer
  • Lone Worker
  • Emergency Alert
  • DTMF Encoder
  • DTMF Decoder (Display)
  • CTCSS/DCS
  • LCD
  • Display (Display)
  • Flashlight (Display)
  • Programmable Buttons (Display)
  • Clone Programming w/Cable
  • Battery Saver (Display)
  • VOX (Display)
  • 2-Pin Audio Connector
  • 2600 mAh Li-Ion Battery
  • Monitor
  • Dust & Water Protection IP-54 Standard

Specifications:

  • Channel Capacity: 1024 Channels, 32 Groups (Display)
  • Channel Spacing: 25/12.5 kHz
  • Operating Voltage: 7.4VDC
  • Battery Capacity: 2600 mAh Li-Ion
  • Frequency Stability: ± 2.5 PPM (-30° to +60° C)
  • Antenna Impediance: 50 Ω
  • Dimensions (H/W/D): 4.1x 2.1x 1.3”(103x 52x 32mm)
  • Weight (w/Battery): 8.8 oz. (250g)
  • Case/Frame: Polycarbonate/Aluminum Die Cast
  • Battery Life: (Hours) 17 Hours (90/5/5 duty cycle)
  • Operating Temperature: -30° C to +60° C
  • Storage Temperature: -40° C to +85° C
  • ESD: IEC 61000-4-2/±8KV/±15 KV

Available Option:

  • MP-4124: VHF (136-174 MHz)

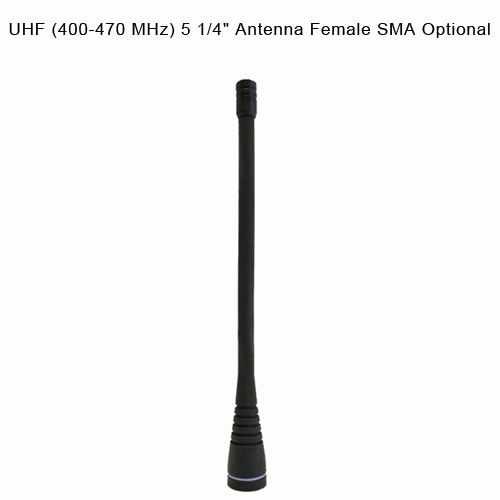

  • MP-4424: UHF (400-470 MHz)

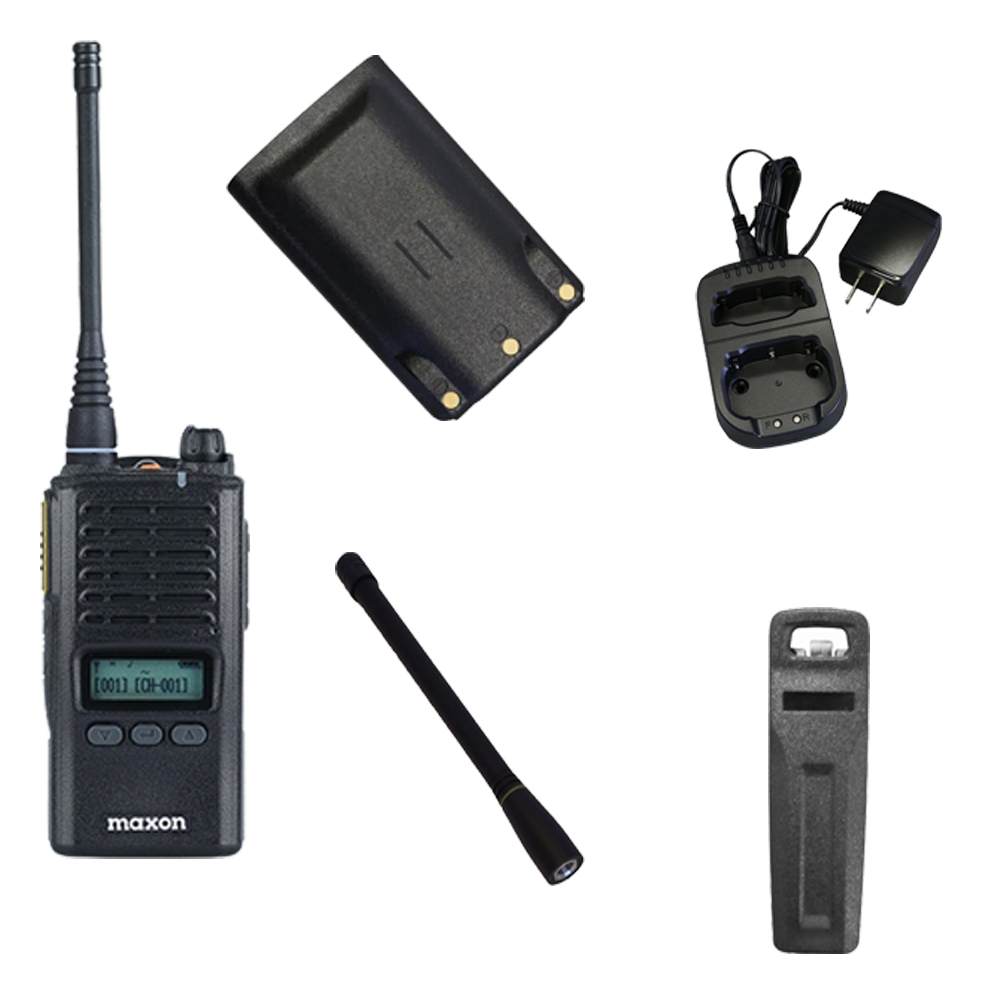

Included:

  • Radio

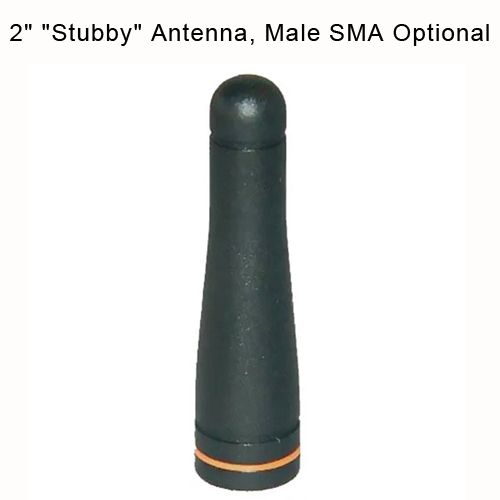

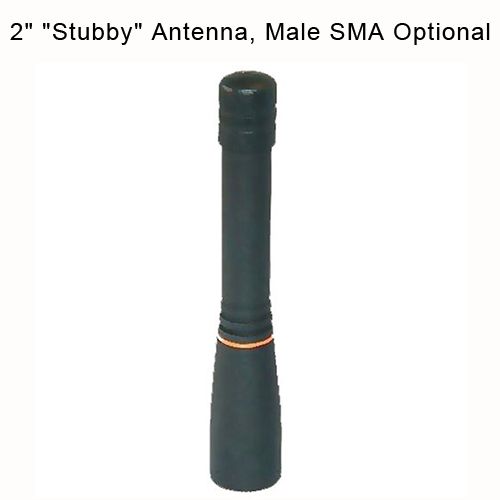

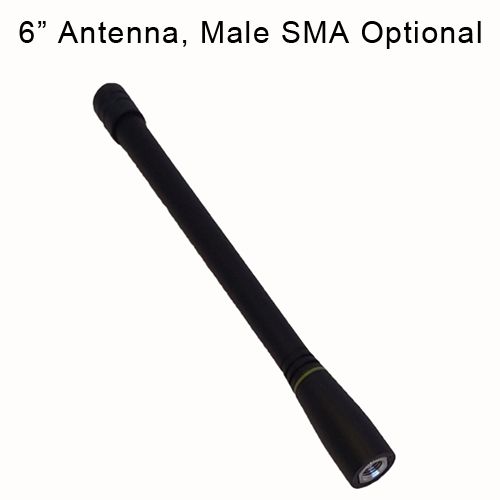

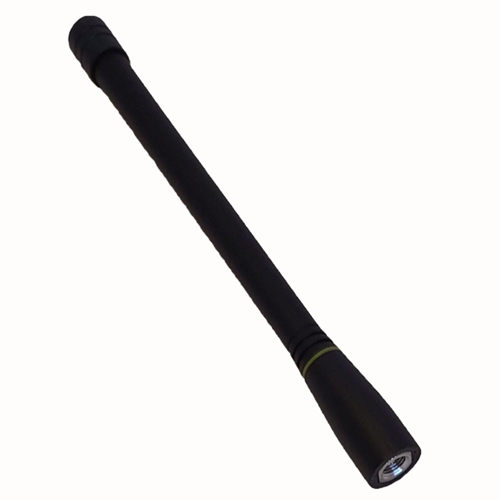

  • Antenna (TSA-041/044)

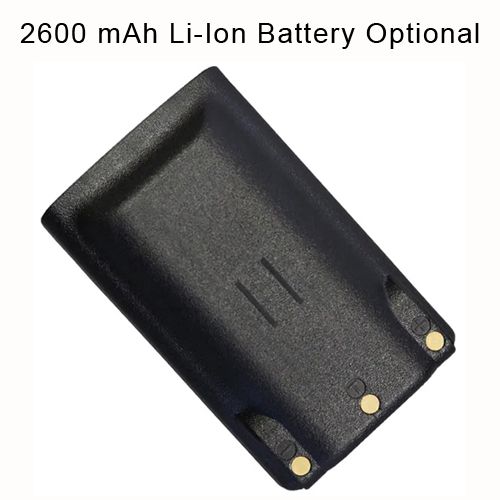

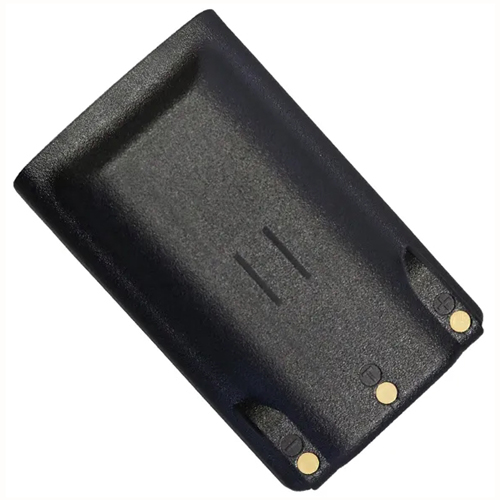

  • Battery (TSA-4260)

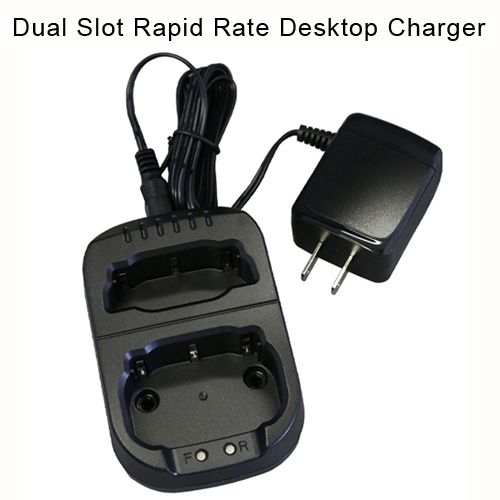

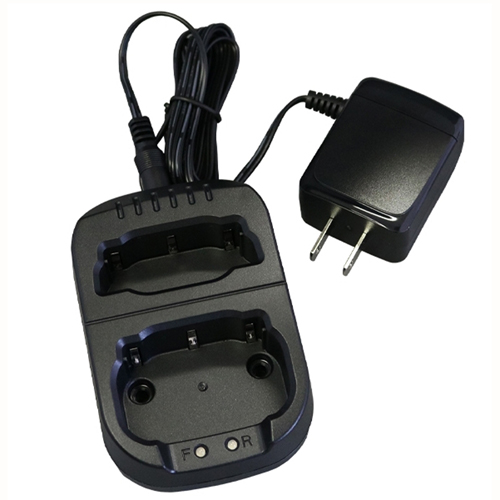

  • Desktop Charger

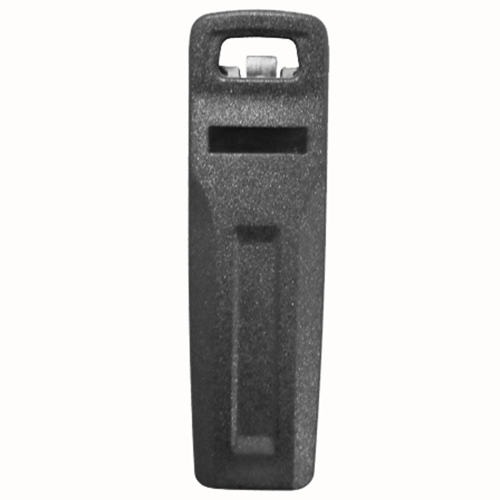

  • Belt Clip

Transmitter:

  • RF Output Power: 5/2 Watts
  • FM Modulation: 11K0F3E (12.5 kHz),16K0F3E (25 kHz)
  • 4FSK Digital Modulation: 12.5 kHz Data Only: 7K60FXD,
    12.5 kHz Data & Voice: 7K60FXW
  • Conducted/Radiated Emission: -36dBm<1GHz, -30dBm>1GHz
  • Modulation Limiting ±2.5 kHz (12.5 kHz), ±5.0 kHz
    (25kHz)FM Noise 40dB (12.5 kHz)
  • Adjacent Channel Power: 60dB (12.5 kHz), 70dB (20/25 kHz)
  • Audio Distortion: 3% maximum with 1kHz modulation
  • Digital Vocoder Type: AMBE3000 Vocoder Chip with AMBE+2
    Voice Compression Algorithm
  • Digital Protocol: ETSI-TS102 361-1-2-3

Receiver:

  • Sensitivity: 0.25µV @ 12dB SINAD
  • Selectivity TIA-603 ETSI: >65dB (12.5 kHz), 70dB (25 kHz)
  • Intermodulation TIA-603 ETSI: >70dB (12.5/25 kHz)
  • S/N: 40dB (12.5 kHz), 45dB (25 kHz)
  • Audio Output Power: 1.0 Watt
  • Audio Distortion: < 3% at rated output
  • Audio Response: +1,~ -3dB From 6dB per octive
    de-emphasis characteristics
  • Spurious Emission: 70dB


Click Here To Download: Specification Sheet

Click Here To Download: User Manual

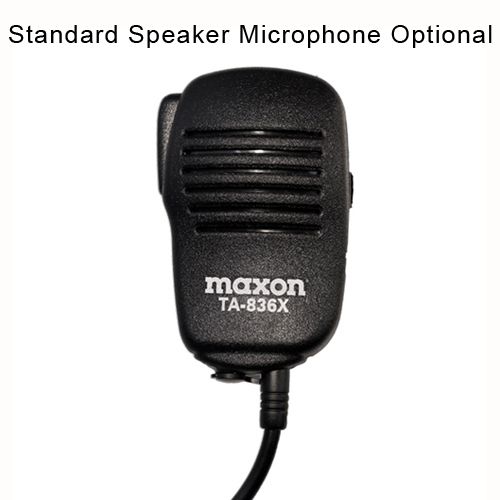

MP-4000DX, MAXMP4000DX, MAXMP4124, MAXMP4424, MAXTSA4260, MAXTSA4350, MAXTSA041, MAXTSA044, MAXTJA341, MAXTJA342, MAXTSA0400, MAX300705110, MAXTSA6006TS4, MAXTA836X, MAXTA850X, MAXTA855X, MAXTA817X, MAXTA818X, MAXTA819X, MAXTA820X, MAXTA890X, MAXTA80LC, MAXTA80NC, MAXTSA40BC, MAXMA70BC
