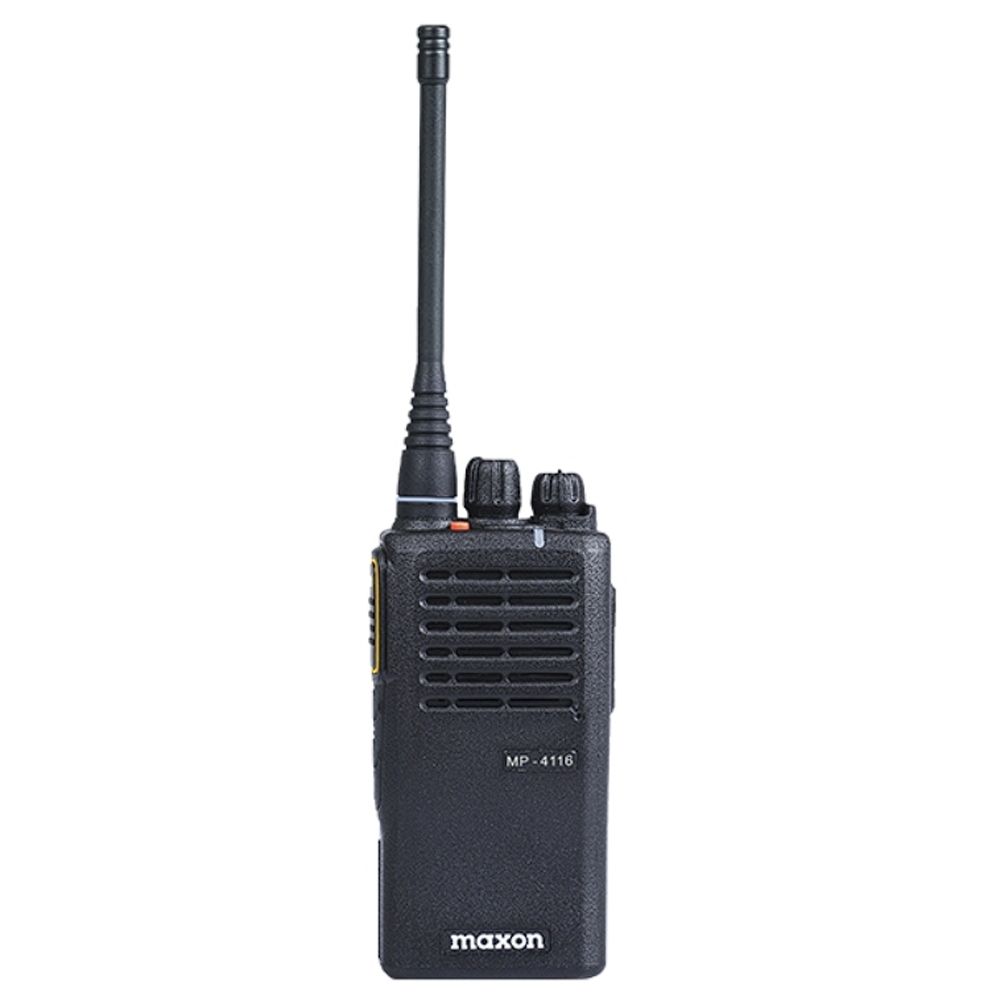

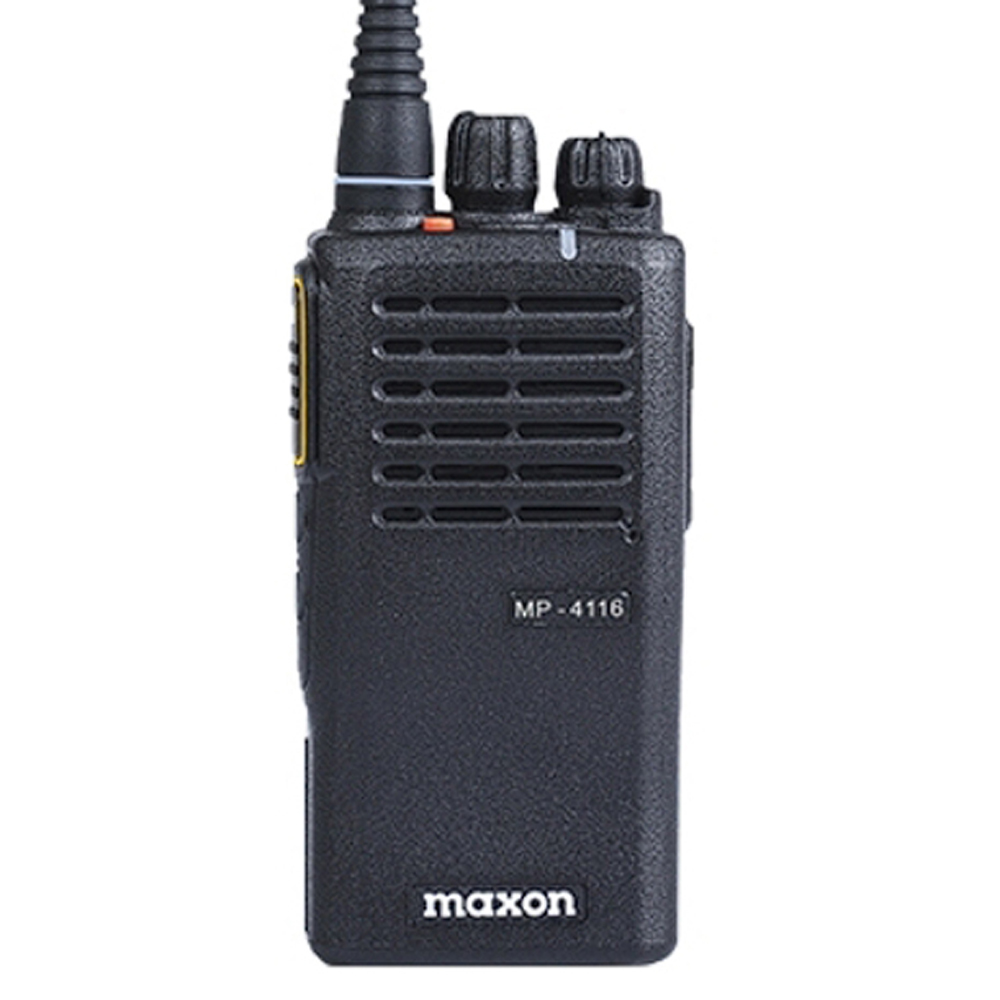

MP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W Output

MP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W Output
MP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W OutputMP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W Output
Item# MAX-MP-4000NDX
Sale Price Starts at:  $170.00
Options:  Accessories:  Order Quantity:

MP-4000 Series Non-Display Radios (UHF or VHF) 16 Channels 5/2W Output

The MP-4000 Series Non-Display Radio delivers dependable 5- and 2-watt VHF and UHF performance along with 16 channels, CTCSS and DCS, and DTMF encoder capabilities. Built for demanding environments, it supports clone programming with cable, multiple scan modes, and features like Time Out Timer, BCLO, Lone Worker, and TX Inhibit. Its rugged IP54 certified design and 2600 mAh Li Ion battery make it suitable for schools, hospitality, retail, and property management where clear communication is essential.

It includes practical accessories such as an antenna, dual slot charger, battery, belt clip, and user manual, ensuring teams stay connected right out of the box. Easy PC or wired cloning programming allows quick deployment, while compatibility with audio accessories expands usability for various industries. Combining durability, long battery life, and straightforward operation, this radio supports reliable daily communication for staff coordination and safety.

Features:

  • 5/2 Watt UHF or VHF
  • 16 Channels (Non-Display)
  • Scan
  • BCLO
  • TX Inhibit
  • Time Out Timer
  • Lone Worker
  • Emergency Alert
  • DTMF Encoder
  • DTMF Decoder (Display)
  • CTCSS/DCS
  • LCD
  • Display (Display)
  • Flashlight (Display)
  • Programmable Buttons (Display)
  • Clone Programming w/Cable
  • Battery Saver (Display)
  • VOX (Display)
  • 2-Pin Audio Connector
  • 2600 mAh Li-Ion Battery
  • Monitor
  • Dust & Water Protection IP-54 Standard

Specifications:

  • Channel Capacity: 16 Channels
  • Channel Spacing: 25/12.5 kHz
  • Operating Voltage: 7.4VDC
  • Battery Capacity: 2600 mAh Li-Ion
  • Frequency Stability: ± 2.5 PPM (-30° to +60° C)
  • Antenna Impediance: 50 Ω
  • Dimensions (H/W/D): 4.1x 2.1x 1.3”(103x 52x 32mm)
  • Weight (w/Battery): 8.8 oz. (250g)
  • Case/Frame: Polycarbonate/Aluminum Die Cast
  • Battery Life: (Hours) 17 Hours (90/5/5 duty cycle)
  • Operating Temperature: -30° C to +60° C
  • Storage Temperature: -40° C to +85° C
  • ESD: IEC 61000-4-2/±8KV/±15 KV

Available Option:

  • MP-4116: VHF (136-174 MHz)
  • MP-4416: UHF (400-470 MHz)

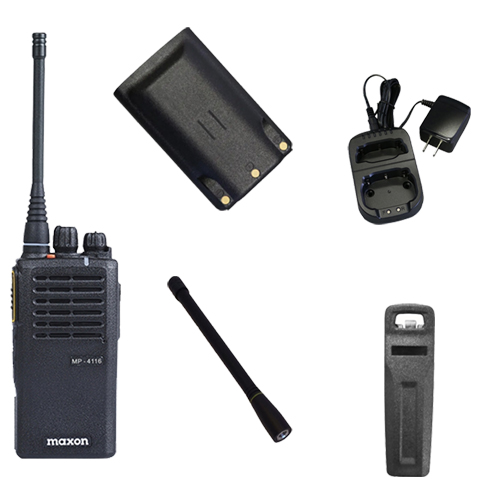

Included:

  • Radio

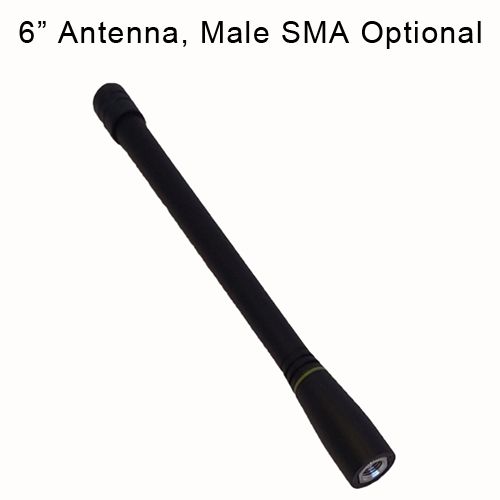

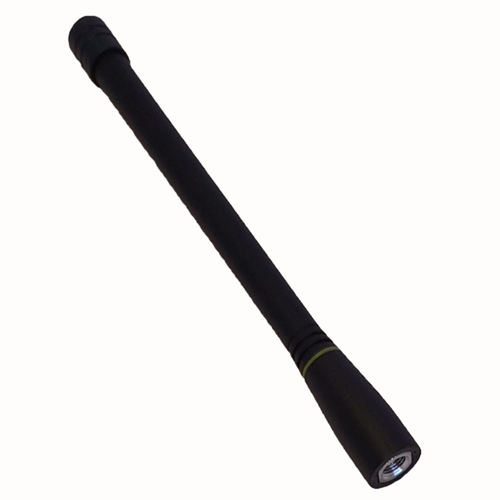

  • Antenna (TSA-041/044)

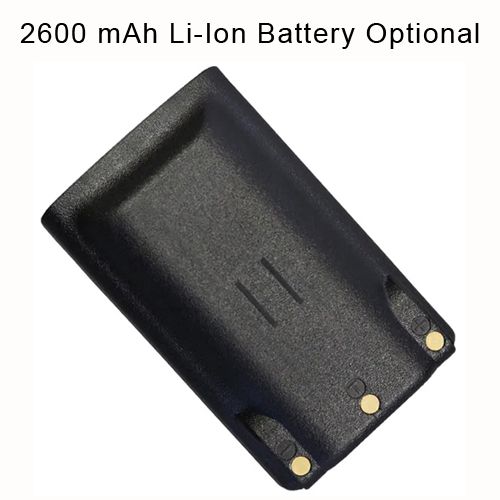

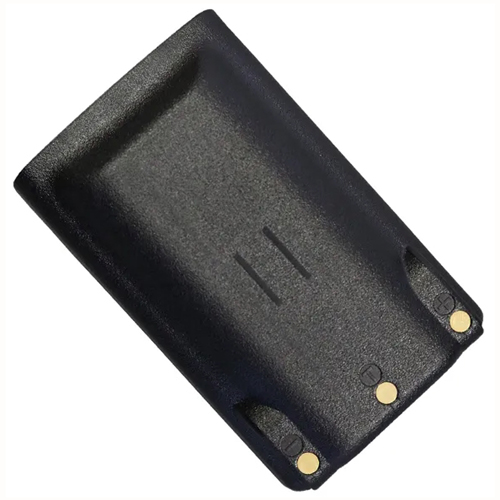

  • Battery (TSA-4260)

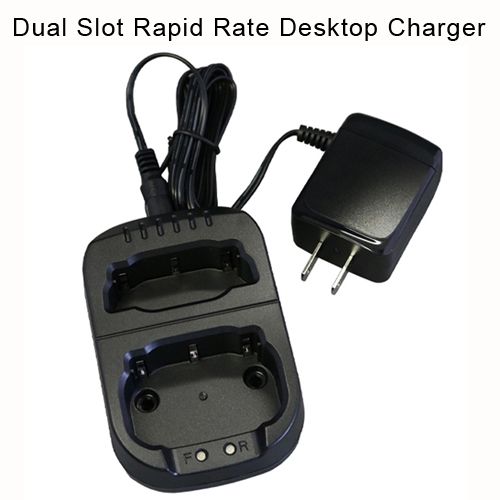

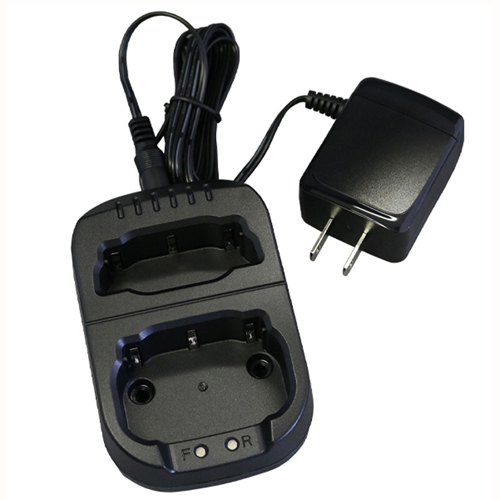

  • Desktop Charger

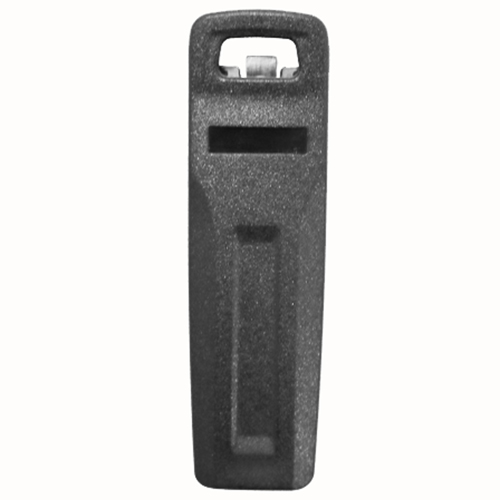

  • Belt Clip

Transmitter:

  • RF Output Power: 5/2 Watts
  • FM Modulation: 11K0F3E (12.5 kHz),16K0F3E (25 kHz)
  • 4FSK Digital Modulation: 12.5 kHz Data Only: 7K60FXD,
    12.5 kHz Data & Voice: 7K60FXW
  • Conducted/Radiated Emission: -36dBm<1GHz, -30dBm>1GHz
  • Modulation Limiting ±2.5 kHz (12.5 kHz), ±5.0 kHz
    (25kHz)FM Noise 40dB (12.5 kHz)
  • Adjacent Channel Power: 60dB (12.5 kHz), 70dB (20/25 kHz)
  • Audio Distortion: 3% maximum with 1kHz modulation
  • Digital Vocoder Type: AMBE3000 Vocoder Chip with AMBE+2
    Voice Compression Algorithm
  • Digital Protocol: ETSI-TS102 361-1-2-3

Receiver:

  • Sensitivity: 0.25µV @ 12dB SINAD
  • Selectivity TIA-603 ETSI: >65dB (12.5 kHz), 70dB (25 kHz)
  • Intermodulation TIA-603 ETSI: >70dB (12.5/25 kHz)
  • S/N: 40dB (12.5 kHz), 45dB (25 kHz)
  • Audio Output Power: 1.0 Watt
  • Audio Distortion: < 3% at rated output
  • Audio Response: +1,~ -3dB From 6dB per octive
    de-emphasis characteristics
  • Spurious Emission: 70dB


Click Here To Download: Specification Sheet

Click Here To Download: User Manual
