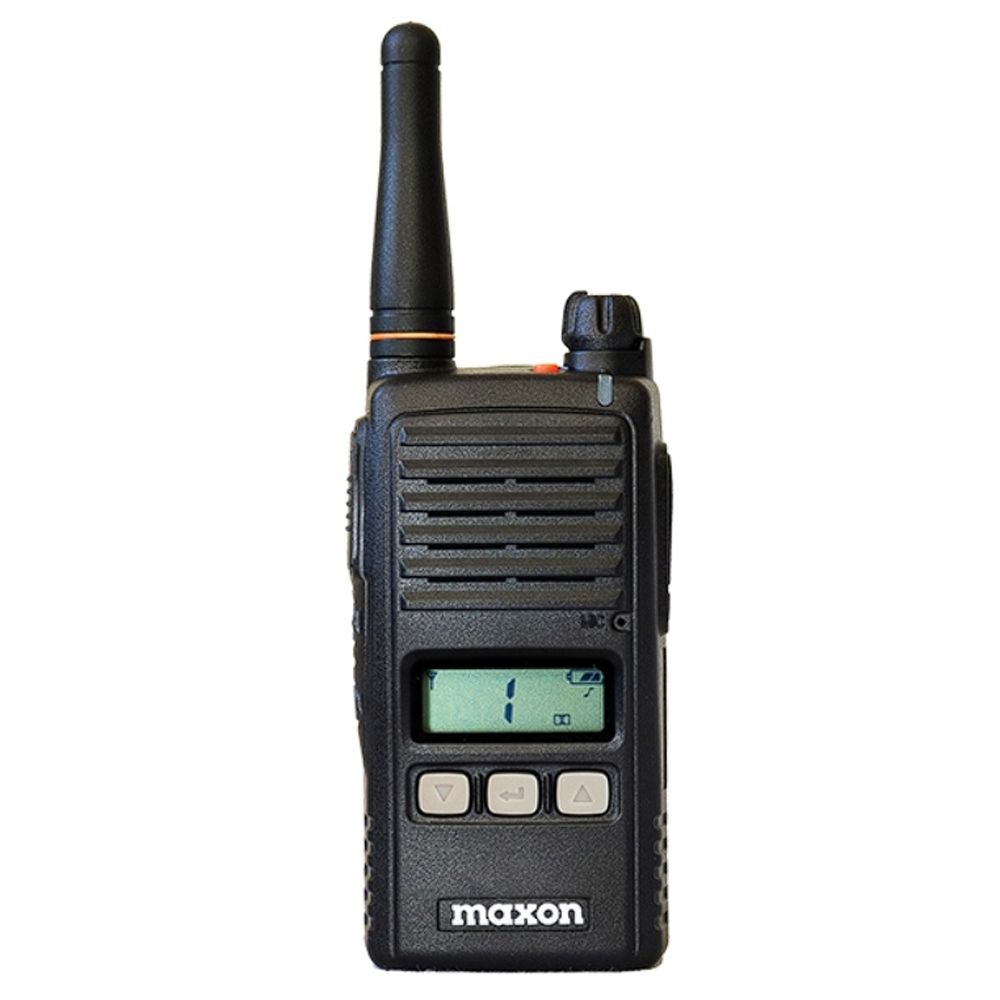

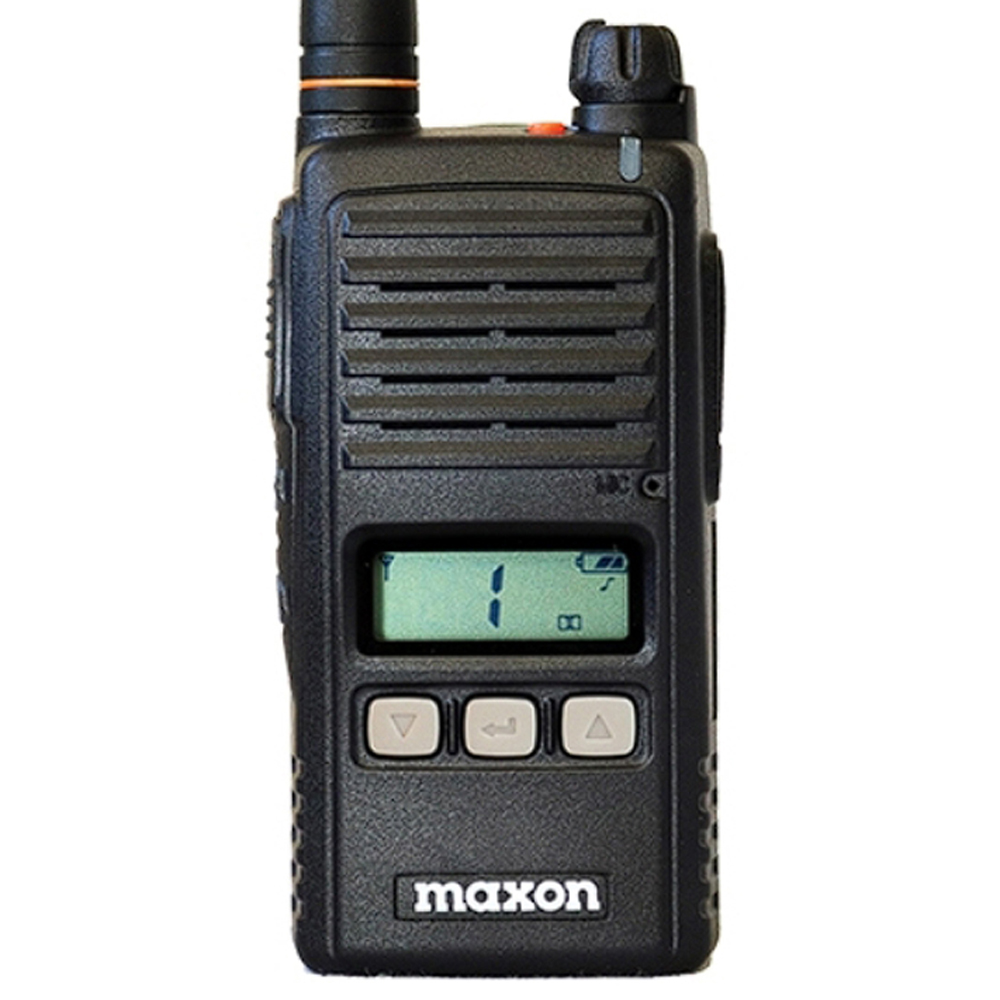

TJ-3000 Jobsite Two-Way Business Radio UHF or VHF - 90 Channels, 2W Output

Features:

• 2 Watt Power Output
• 90 Channels Programmable via CPS
• 27 Channels (VHF) - 89 Channels (UHF)
• Pre-Programmed Exclusive Jobsite Frequencies
• 7 Weather Channels VHF/UHF
• 1 Watt Audio Output
• Alpha-Numeric Display
• CTCSS/DCS - User Programmable
• Audio Compandering compatible w/ Motorola CLS and CLP
• IP54 Certified
• Approvals: FCC, IC
• 2 Year Warranty

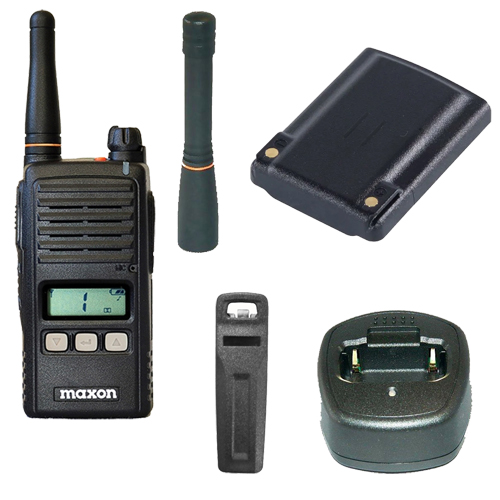

Included:

• Radio

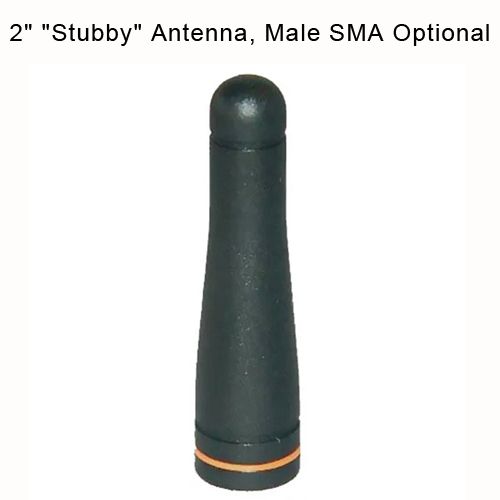

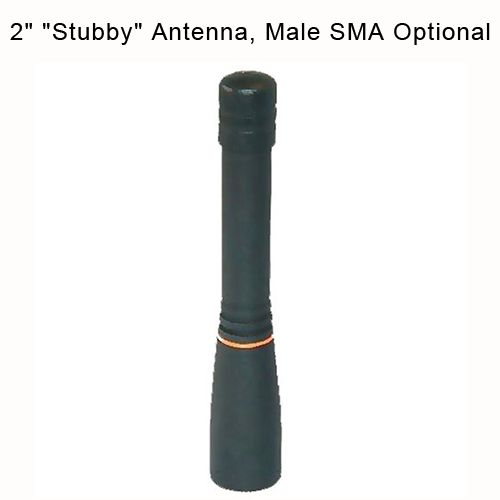

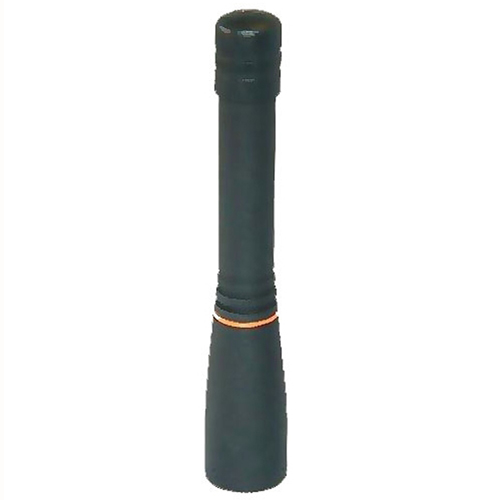

• Antenna (TJA-341/TJA-342)

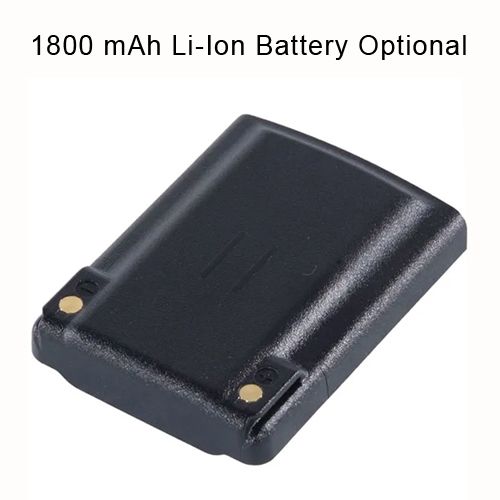

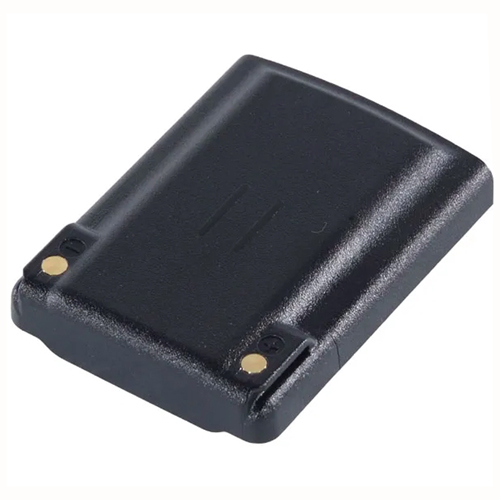

• 1800 mAh Li-Ion Battery (TJA-1800LI)

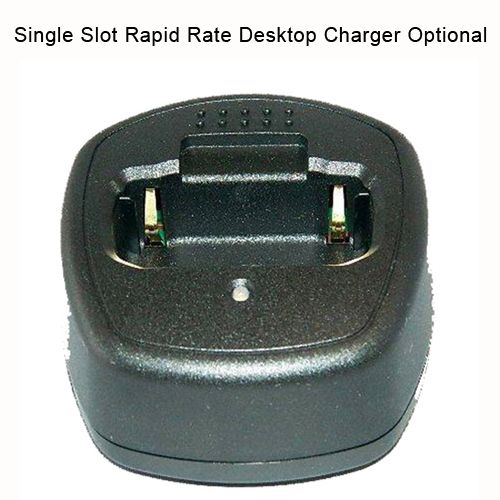

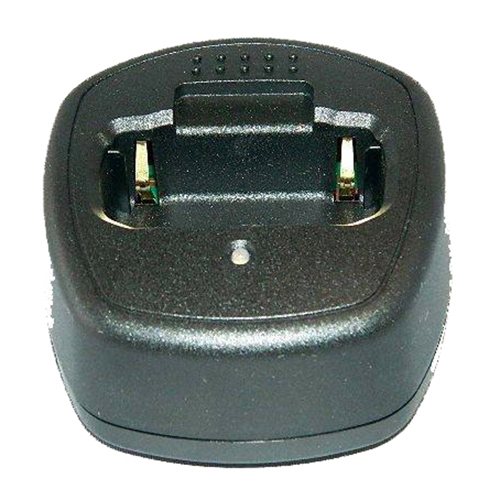

• Single Slot Rapid Rate Desktop Charger (TJA-300L)

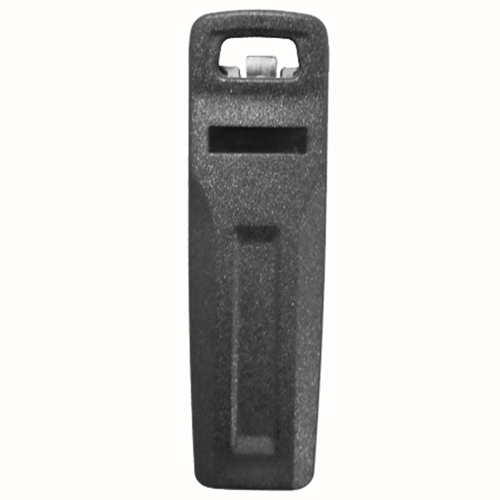

• Spring Loaded Belt Clip (TJA-30BC)

Specifications:

• Operating Voltage: 3.7 V DC
• Operating Temperature: -22° to 140° F (-30° to 60° C)
• Frequency Stability: ± 2.5 PPM
• Dimensions (H/W/D): 3.9 x 2 x 1" (99 x 51 x 25 mm)
• Channel Spacing: 12.5 kHz per channel
• PLL Stepping: 2.5/6.25 kHz
• Weight (with Battery): 5.3 oz. (151 g)
• Battery Life (Hours): 14 hr
• Battery Drain mAh: Tx 1200, Rx 300, Stby 60
• Battery Capacity: 1800 mAh Li-Ion
• Charge Time Estimate: 2-3 Hours

Available Option:

• TJ-3100V: VHF (140-174 MHz)
• TJ-3400U: UHF (440-470 MHz)

Receiver:

• Sensitivity: .28uV 12dB SINAD
• Squelch Sensitivity: .25uV 12dB SINAD
• Selectivity: 60dB
• FM Hum and Noise: 40dB
• Audio Output Power: 1 Watt across 8-ohm load
• Input Impedance: 50 Ohms
• Audio Distortion: < 5% at rated output
• Audio Response: +1 -3dB from 6dB per octave
  pre-emphasis and characteristic 300 ~ 3000 Hz

Transmitter:

• Output Power: 2 Watt UHF/VHF
• Spurious and Harmonic: 60dB
• FM Hum and Noise: 40dB (12.5 kHz), 45dB (25 kHz)
• Audio Distortion: 5% max w/ 1kHz Modulation
• Audio Response: +1 -3dB from 6dB per octave
  pre-emphasis and characteristic 300 ~ 3000 Hz
• Output Impedance: 50 ohms
