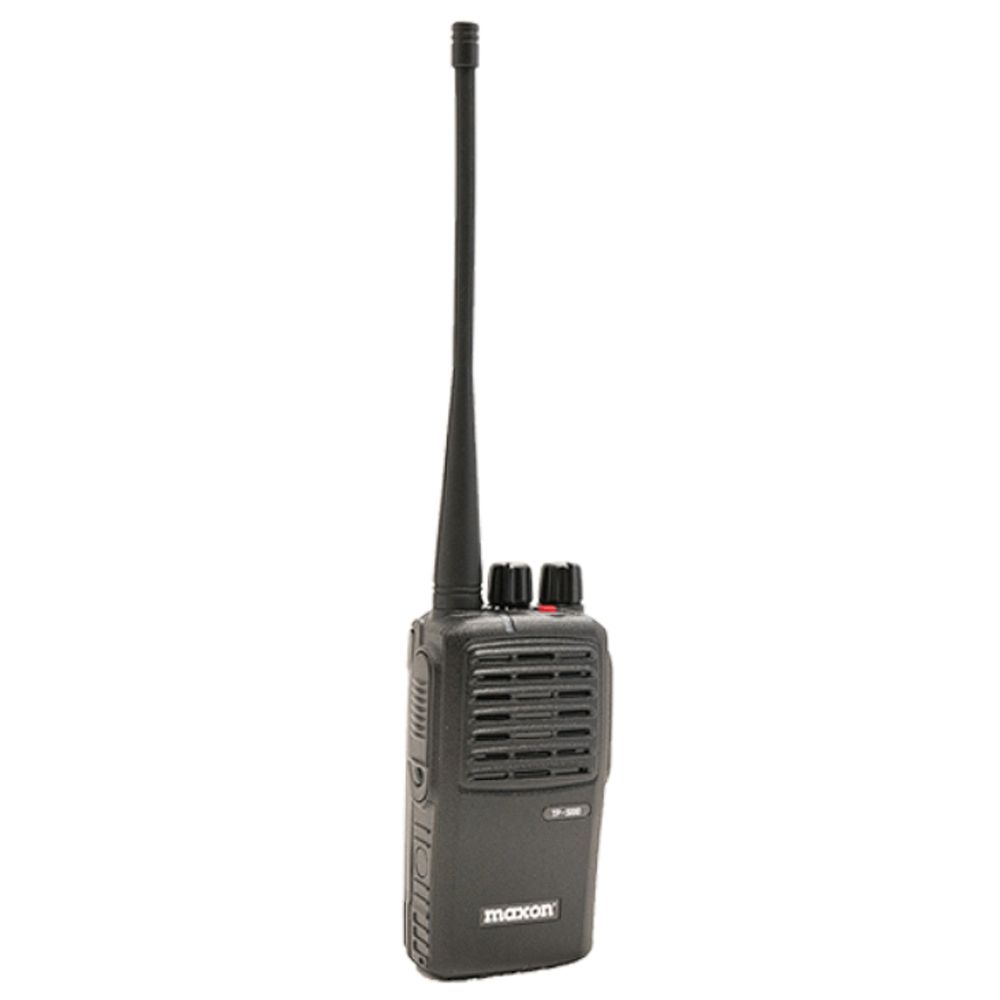

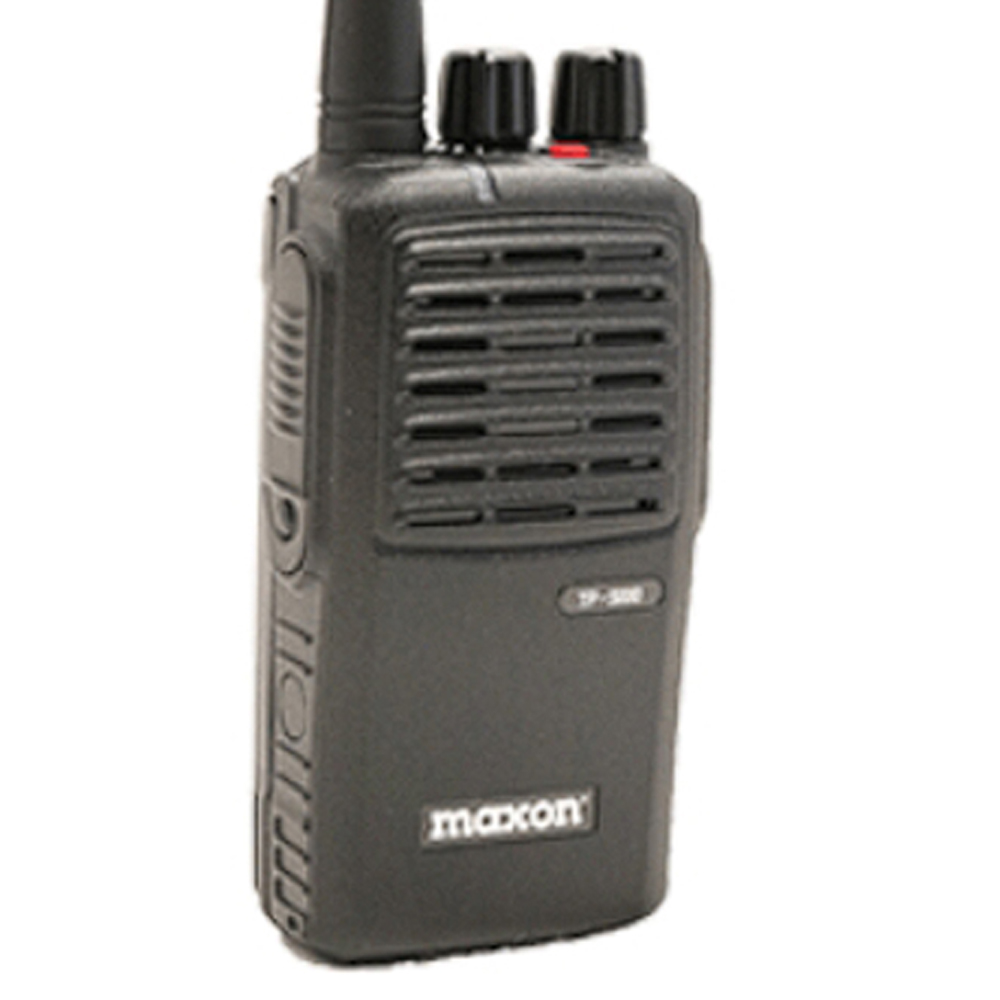

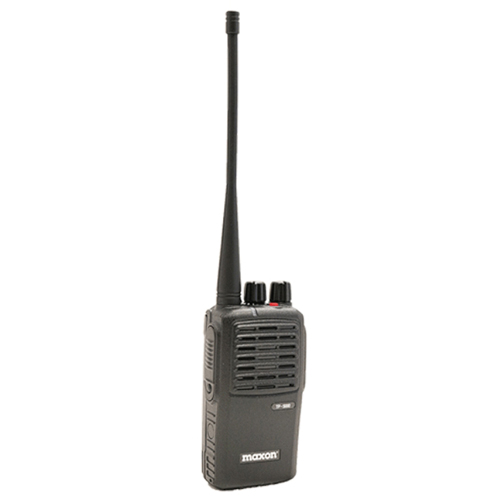

TP-5000 Full Featured Handheld Radio - 16 Channels, 5/2W (VHF) or 4/2W (UHF) Output

Features:

• 5/2 Watt (VHF) - 4/2 Watt (UHF) Power Output
• 16 Channels w/Optional Voice Annunciation
• 12.5/25 kHz Channel Spacing
• 2600 mAh Battery
• CTCSS/DCS Tone Capability
• Voice Inversion Scrambler
• Compander Function
• 1 Watt Audio Output
• Priority and Conventional Scanning
• Time-Out Timer (TOT)
• 2-Tone Paging Decode
• BCL/BCLO (Busy Channel Lock Out)
• High/Low Power Switching
• DTMF ANI
• Remote Stun and Revive
• VOX
• 2 Programmable Function Buttons
• Approvals: FCC, IC
• 3 Year Warranty
• 2 Programmable Keys for Option Control

Available Option:

• TP-5116: VHF (136-174 MHz)
• TP-5416: UHF (400-470 MHz)

Specifications:

• Operating Voltage: 7.5 V DC
• Operating Temperature: -22° to 140° F (-30° to 60° C)
• Frequency Stability: ± 2.5 PPM
• Dimensions (H/W/D): 4.42 x 2 x 1.25" (112 x 56 x 32 mm)
• Channel Spacing: 12.5/25 kHz per channel
• PLL Stepping: 6.25 kHz
• Weight (with Battery): 10 oz. (284 g)
• Battery Life (Hours): 15/19 hr
• Battery Capacity: 2600 mAh Li-Ion
• Charge Time Estimate: 3-4 Hours

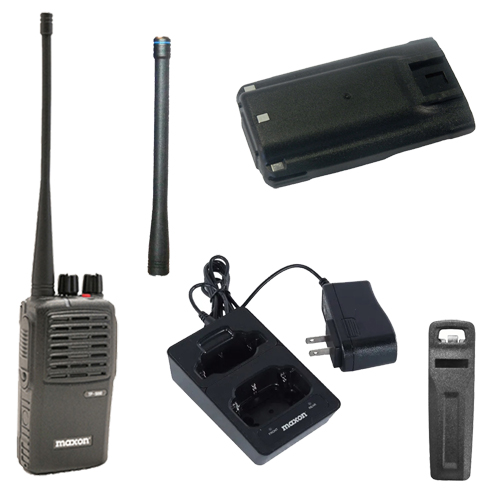

Included:

• Radio

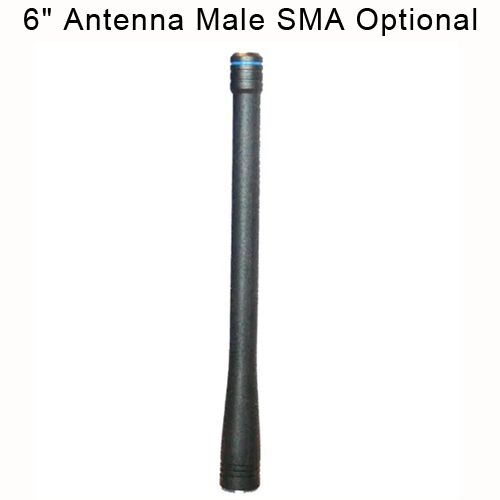

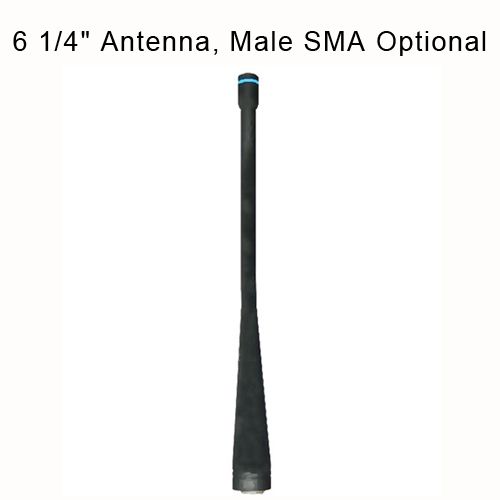

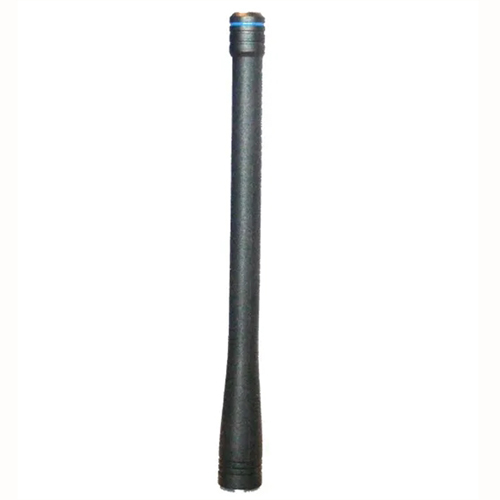

• Antenna (TA-841/TA-842)

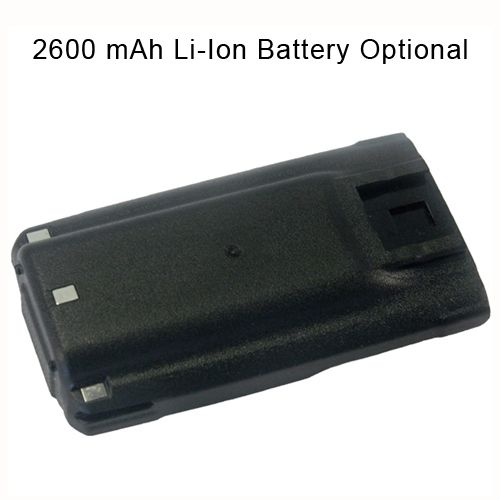

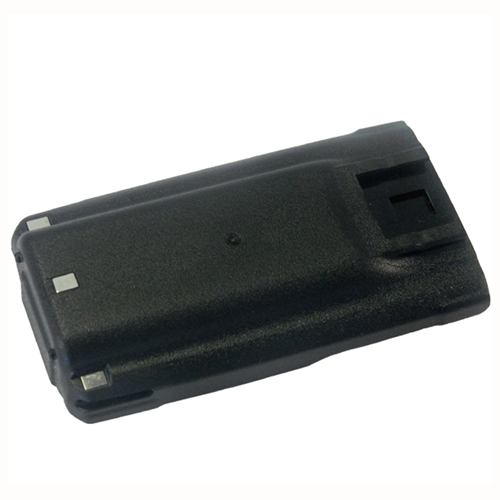

• 2600 mAh Li-Ion Battery (TA-2600LI)

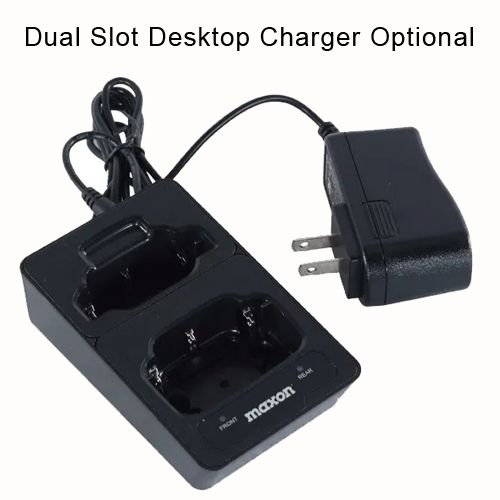

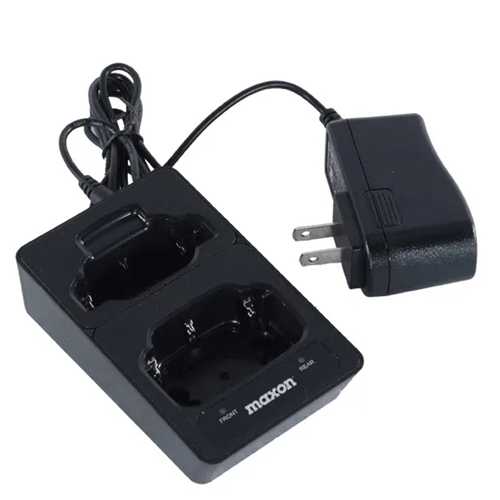

• Dual Slot Desktop Charger (TA-800LA)

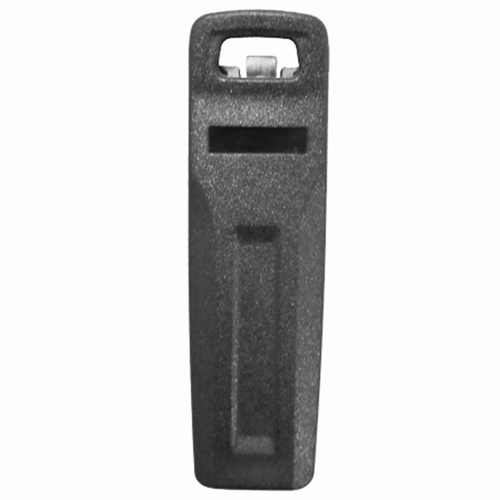

• Spring Loaded Belt Clip (TA-80BC)

Receiver:

• Sensitivity: .282uV 12dB SINAD
• Squelch Sensitivity: .25uV 10dB SINAD
• Selectivity: 60dB (12.5 kHz), 70dB (25 kHz)
• Spurious and Harmonic: 70dB
• Inter-modulation: 60dB
• FM Hum and Noise: 40dB
• Audio Output Power: 1 Watt across 16-ohm load
• Audio Distortion: Less than 5% at rated output
• Audio Response: +1, -3dB from 6dB per octave pre-emphasis
  and characteristic 300 ~ 3000 Hz

Transmitter:

• Output Power: VHF 5/2 Watt, UHF 4/2 Watt
• Frequency Stability: ±2.5 ppm (-30° to 60° C)
• Spurious and Harmonic: -65dB
• FM Hum and Noise: 40dB (12.5 kHz), 45dB (25 kHz)
• Audio Distortion: Less than 5% at rated output
• Audio Response: +1, -3dB from 6dB per octave pre-emphasis
  and characteristic 300 ~ 3000 Hz
