TP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) Output

TP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) Output
TP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) OutputTP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) Output
Item# MAX-TP-8000X
Regular price: $320.00
Sale price: $272.00
Options:  Order Quantity:

TP-8000 Full Featured Handheld Radio - 512 Channels, 5/2W (VHF) or 4/2W (UHF) Output

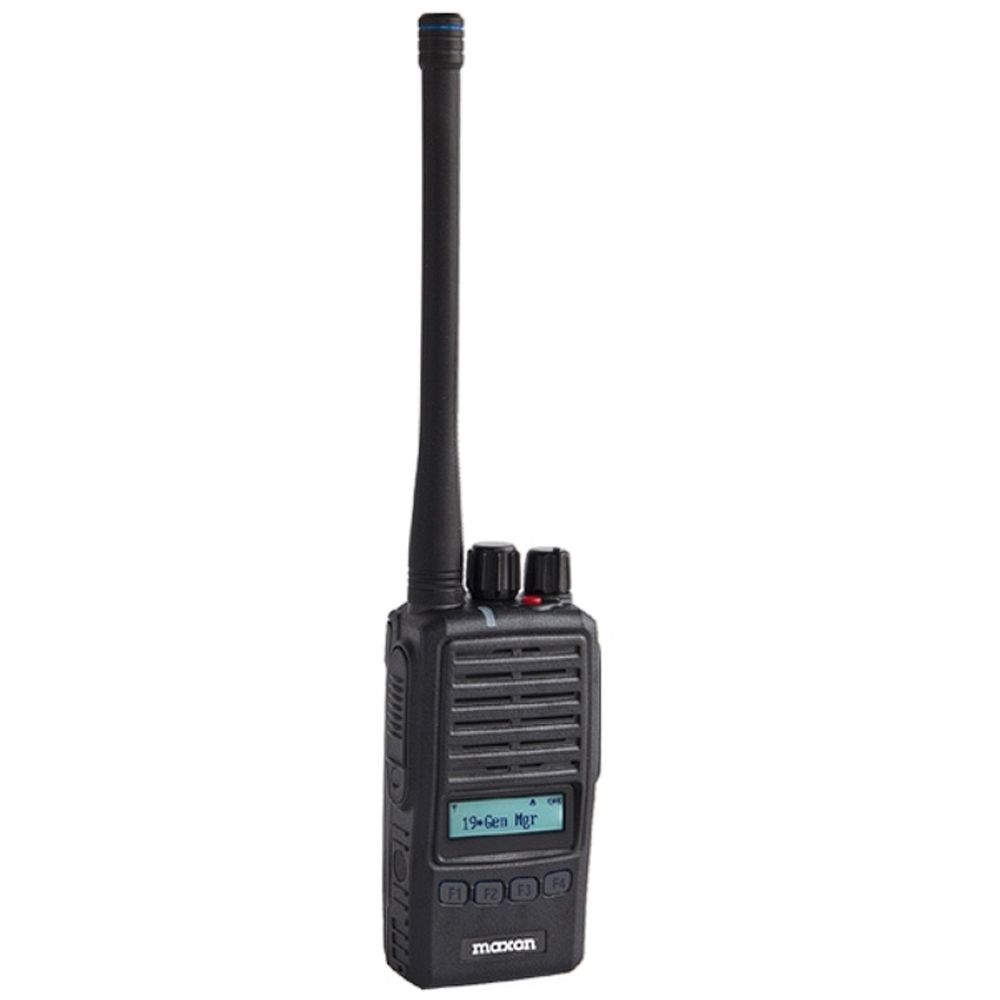

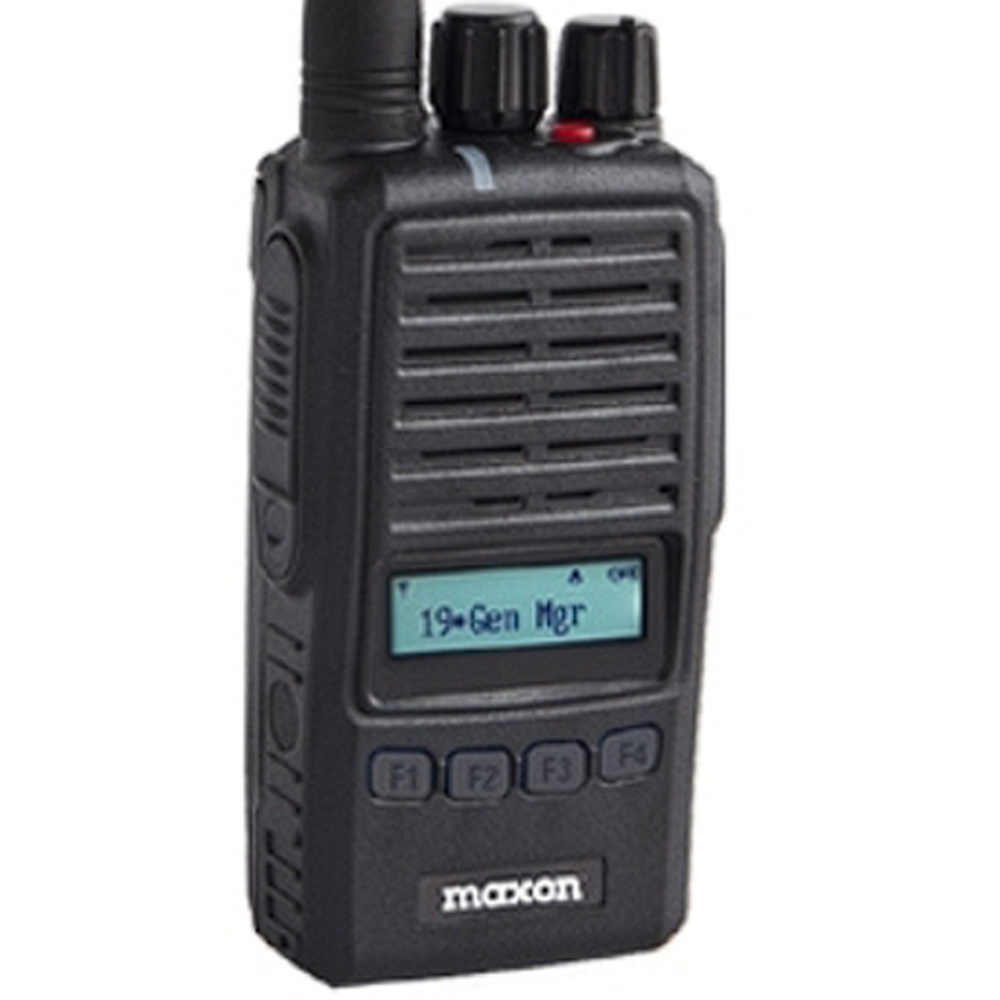

The TP-8000 Series Handheld Radio delivers powerful 5/2 Watt VHF and 4/2-Watt UHF output, giving users strong and clear communication across demanding environments. With 512 channels, dynamic grouping, and 12.5 or 25 kHz spacing, it supports versatile programming for a wide range of industries. The 2600 mAh battery ensures extended operation, while features like 2-tone decode, CTCSS/DCS, priority scanning, user adjustable squelch, and alpha-numeric display enhance usability.

This is built for rugged performance with IP67 and MIL-STD-810F compliance, protecting it from water and harsh conditions. The voice scrambler, VOX, lone worker function, programmable buttons, and selectable power settings add advanced capability for safety and efficiency. Ideal for security, construction, facilities, and event teams, this analog two-way radio is a reliable communication solution that adapts to professional workflows and maintains dependable performance in the field.

Features:

  • 5/2 Watt (VHF) - 4/2 Watt (UHF) Power Output
  • 512 Channels - Dynamic Grouping
  • 12.5/25 kHz Channel Spacing
  • 2600 mAh Battery
  • 2-Tone Decode, Stun/Kill OTA
  • 2/5 Tone Selcall and DTMF ANI
  • CTCSS/DCS
  • Voice Scrambler - Inversion
  • TOT/BCL/BCLO
  • Priority and Conventional Scanning
  • User Adjustable Squelch (0-9 Level Settings)
  • User Selectable High/Low Power
  • VOX
  • Lone Worker - F/W 3.28
  • 6 Programmable Buttons with 12 Functions
  • IP67; MIL-STD-810F Compliant
  • 10 Character A/N Display with Function Icons
  • 1 Watt Audio Output
  • Approvals: FCC, IC
  • 3 Year Warranty
  • 6 Programmable Keys for Option Control

Available Option:

  • TP-8102: VHF (136-174 MHz)
  • TP-8402: UHF (400-470 MHz)

Specifications:

  • Operating Voltage: 7.5 V DC
  • Operating Temperature: -22° to 140° F (-30° to 60° C)
  • Frequency Stability: ± 2.5 PPM
  • Dimensions (H/W/D): 4.37 x 2 x 1.25" (112 x 56 x 32 mm)
  • Channel Spacing: 12.5/25 kHz per channel
  • PLL Stepping: 6.25 kHz
  • Weight (with Battery): 9.1 oz. (258 g)
  • Battery Life (Hours): 15/19 hr
  • Battery Capacity: 2600 mAh Li-Ion
  • Charge Time Estimate: 2-3 Hours

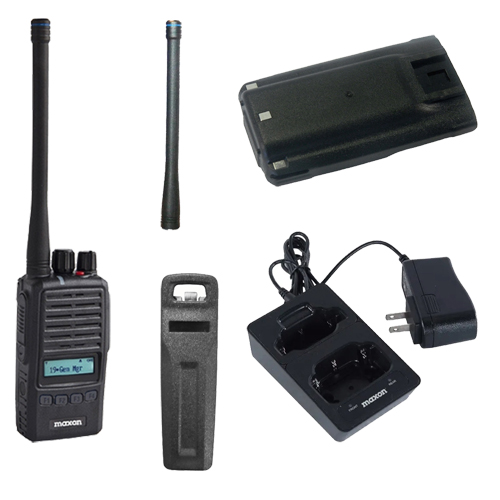

Included:

  • Radio

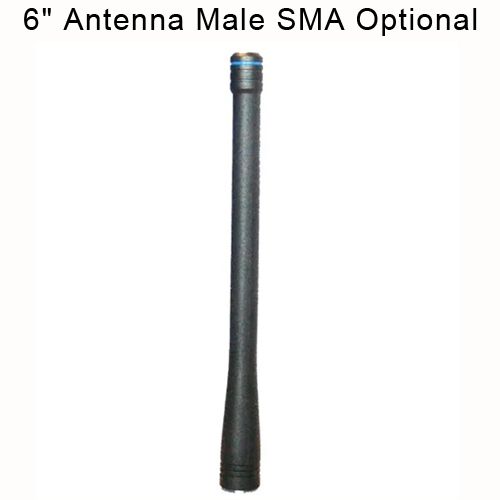

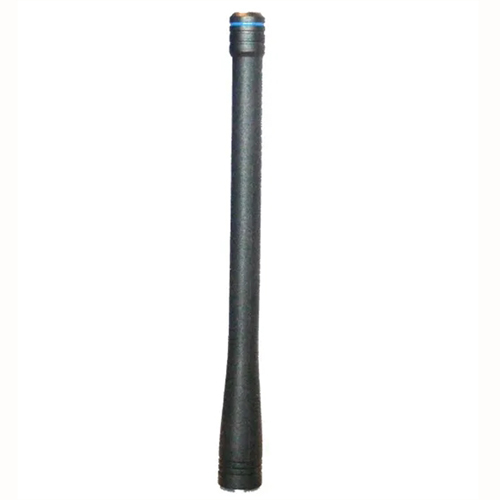

  • Antenna (TA-841/TA-842)

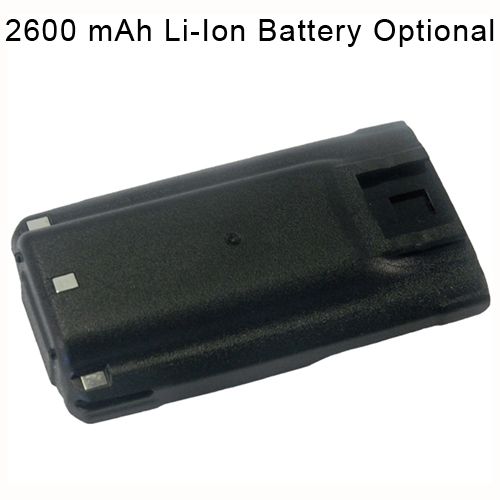

  • 2600 mAh Li-Ion Battery (TA-2600LI)

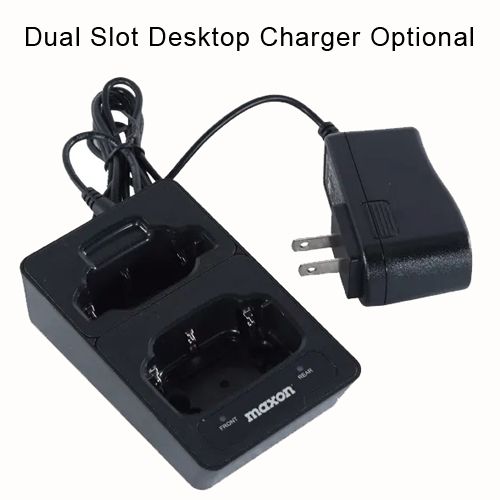

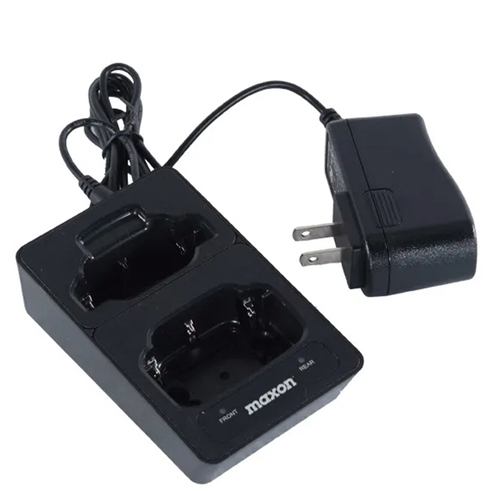

  • Dual Slot Desktop Charger (TA-800LA)

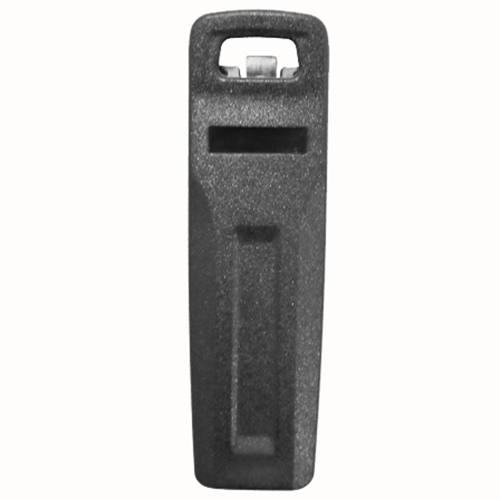

  • Spring Loaded Belt Clip (TA-80BC)

Receiver:

  • Sensitivity: .282uV 12dB SINAD
  • Squelch Sensitivity: .25uV 10dB SINAD
  • Selectivity: 60dB (12.5 kHz), 70dB (25 kHz)
  • Spurious and Harmonic: 70dB
  • Inter-modulation: 60dB
  • FM Hum and Noise: 40dB
  • Audio Output Power: 1 Watt across 16-ohm load
  • Audio Distortion: Less than 5% at rated output
  • Audio Response: +1, -3dB from 6dB per octave pre-emphasis
    and characteristic 300 ~ 3000 Hz

Transmitter:

  • Output Power: VHF 5/2 Watt, UHF 4/2 Watt
  • Frequency Stability: ±2.5 ppm (-30° to 60° C)
  • Spurious and Harmonic: -65dB
  • FM Hum and Noise: 40dB (12.5 kHz), 45dB (25 kHz)
  • Audio Distortion: 5% Maximum
  • Audio Response: +1, -3dB from 6dB per octave pre-emphasis
    and characteristic 300 ~ 3000 Hz

Click Here To Download: Specification Sheet

Click Here To Download: User Manual


TP-8000X, MAXTP8000X, MAXTP8102, MAXTP8402
