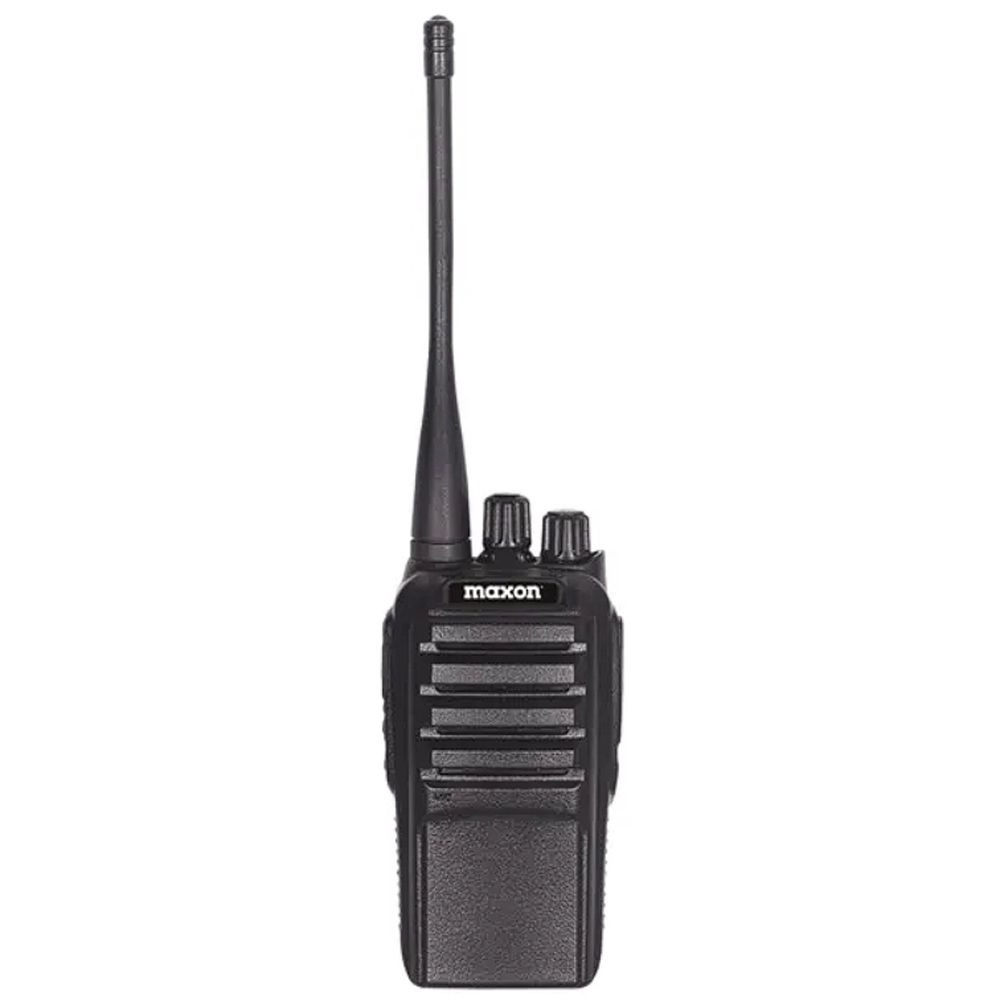

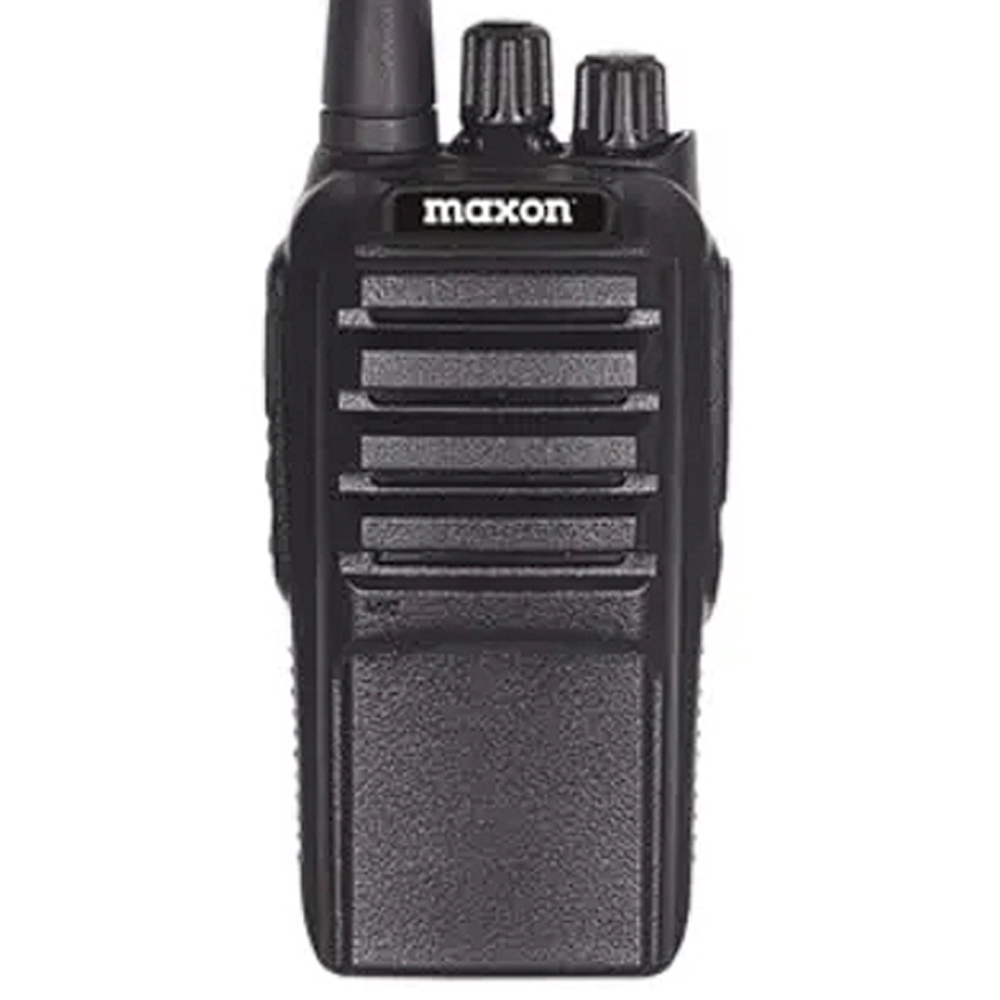

TS-3000 Two-Way Business Radio - 16 Channels, 5/1W (VHF) or 4/1W (UHF) Output

Features:

• 5/1 Watt (VHF) - 4/1 Watt (UHF) Power Output
• 16 Channels
• Optional Voice Annunciation
• CTCSS/DCS
• 700 mW Audio Output
• Time Out Timer (TOT)
• Power Save Mode
• VOX
• 2-Pin Audio Connector
• Approvals: FCC
• 1 Year Warranty
• Preprogrammed with Jobsite Itinerant Frequencies

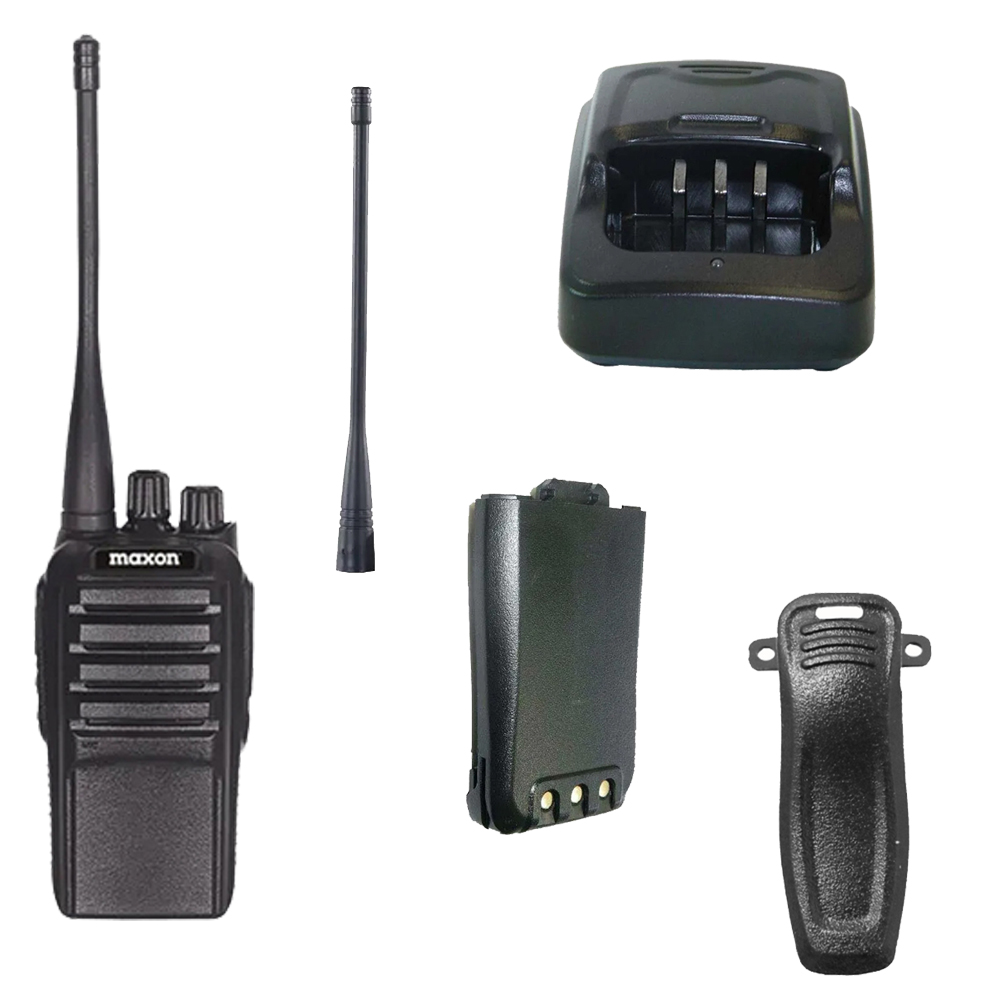

Included:

• Radio

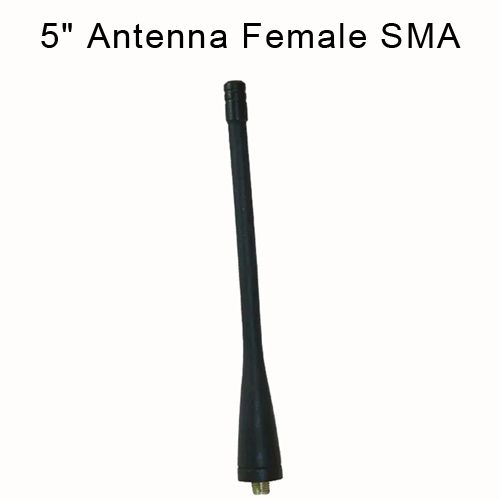

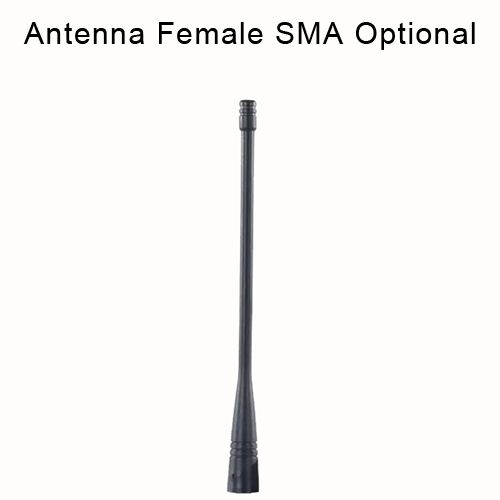

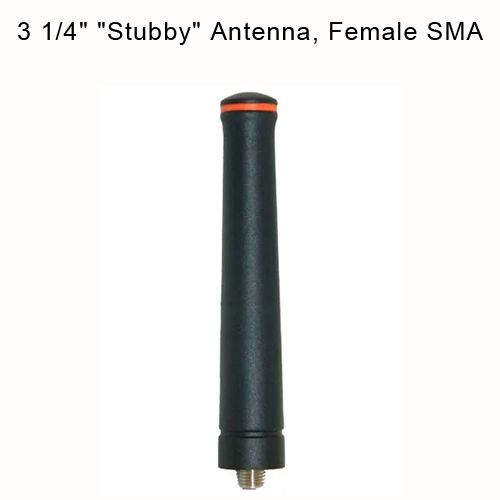

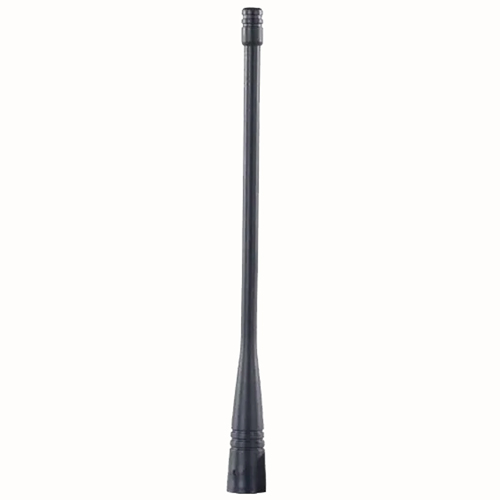

• Antenna (TSA-031/TSA-034)

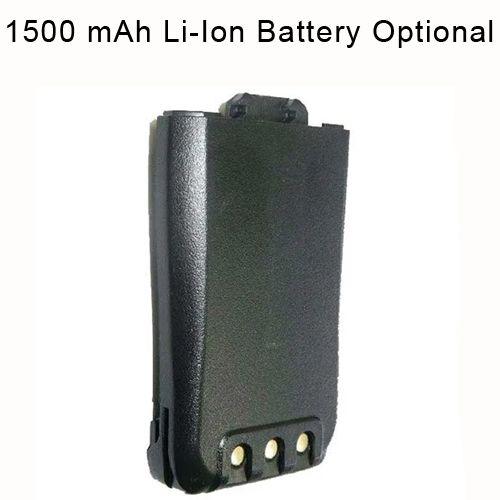

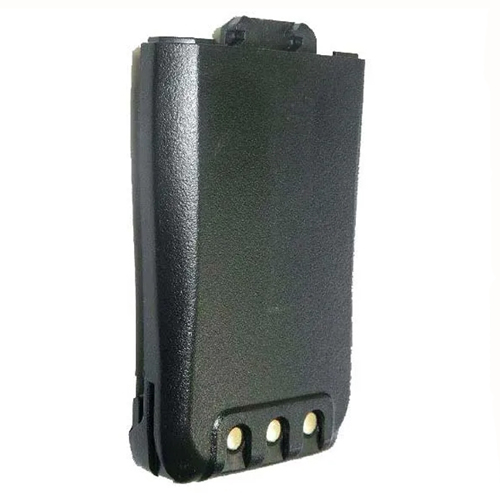

• 1500 mAh Li-Ion Battery (TSA-3150)

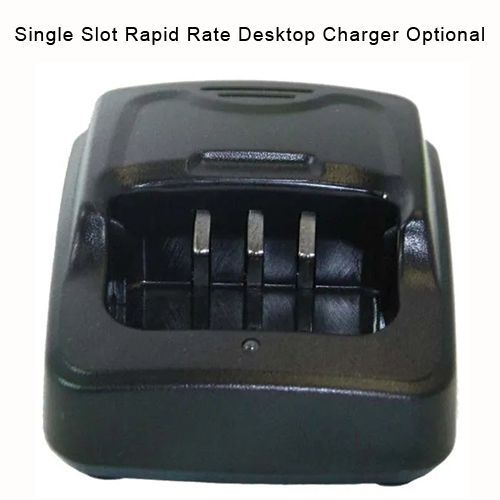

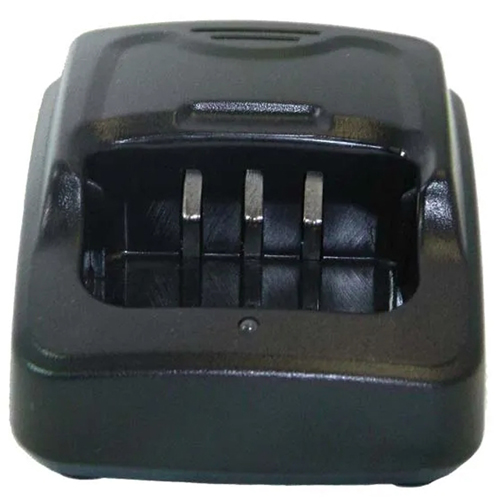

• Single Slot Rapid Rate Desktop Charger (TSA-0300)

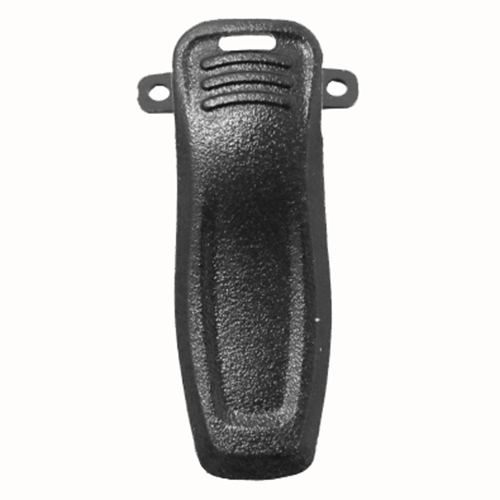

• Spring Loaded Belt Clip (TSA-30BC)

Specifications:

• Operating Voltage: 7.5 V DC
• Operating Temperature: -13° to 131° F (-25° to 55° C)
• Frequency Stability: ± 2.5 PPM
• Dimensions (H/W/D): 4.6 x 2.2 x 1.3" (116 x 56 x 34 mm)
• Channel Spacing: 12.5 kHz per channel
• PLL Stepping: 2.5/6.25 kHz
• Weight (With Battery): 7.2 oz. (203 g)
• Battery Life (Hours): 14 hr
• Battery Drain mAh: Tx 1200, Rx 300, Stby 60
• Battery Capacity: 1500 mAh Li-Ion
• Charge Time Estimate: 2-3 Hours

Available Option:

• TS-3116: VHF (136-174 MHz)
• TS-3416: UHF (400-470 MHz)

Receiver:

• Sensitivity: .25uV / .25uV
• Selectivity: 70dB / 60dB
• FM Hum and Noise: 40dB
• Audio Output Power: 700 mW
• Audio Distortion: < 5% at rated output
• Intermodulation Reject Radio: 65dB

Transmitter:

• Output Power: 5/1 W VHF, 4/1W UHF
• Spurious and Harmonic: -36dB (1GHz), -30dB (1GHz)
• FM Hum and Noise: -40dB (12.5 kHz), -45dB (25 kHz)
• Audio Distortion: <5%
• Adjacent Channel Power: -70db, -60db
