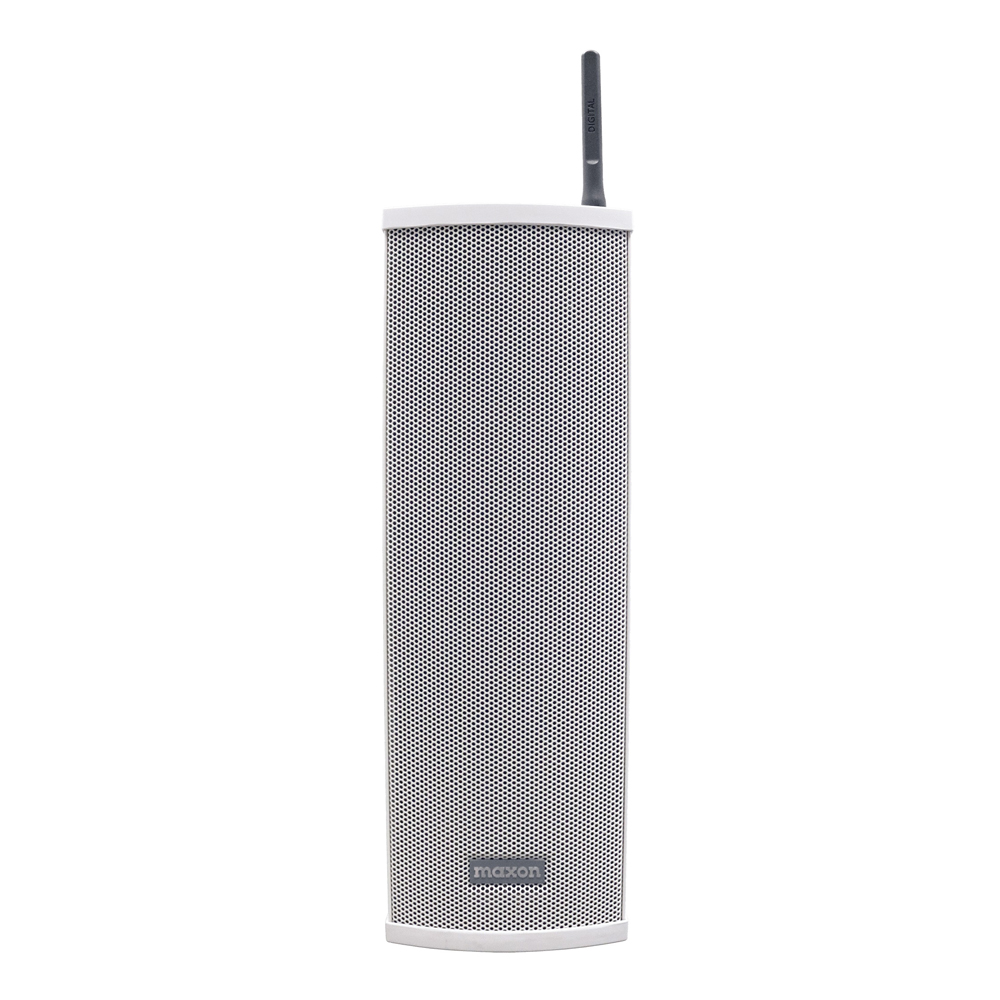

Maxon MDS-2400 20W UHF Rectangle Speaker with Wall Plug

Maxon MDS-2400 20W UHF Rectangle Speaker with Wall Plug

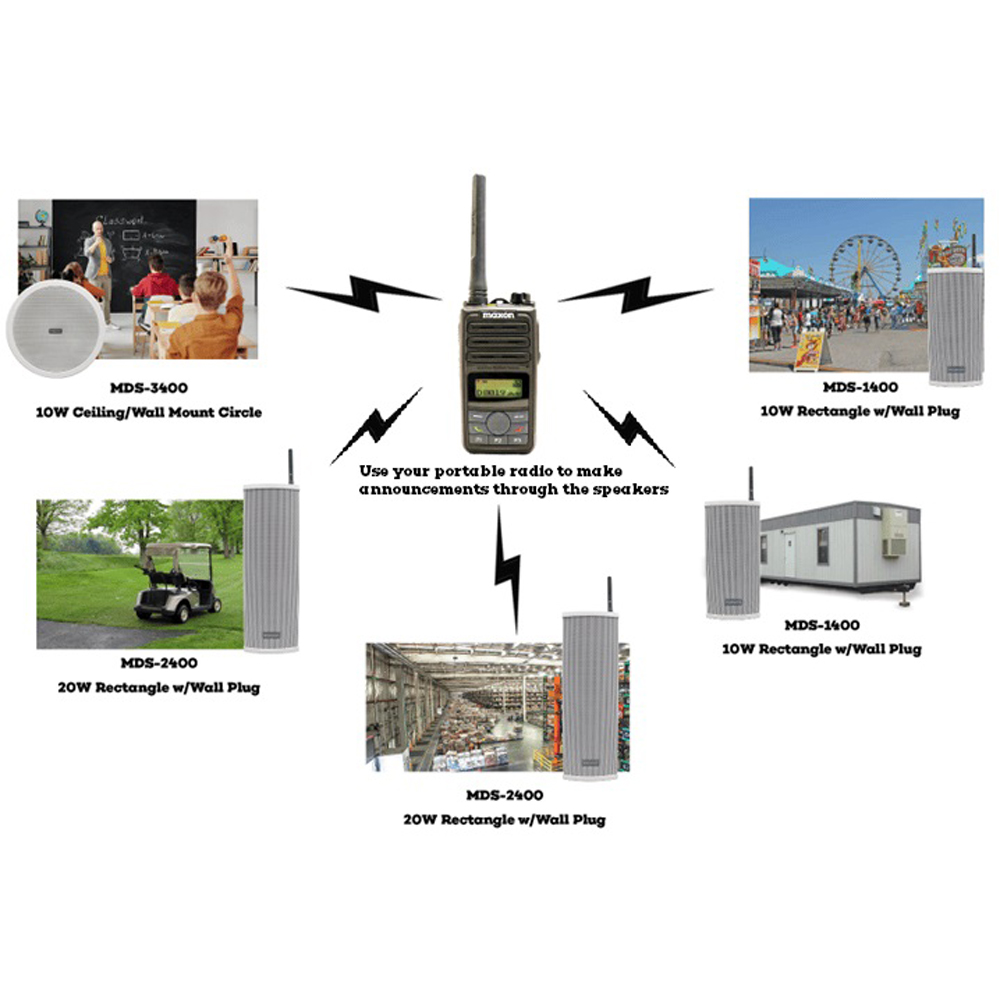

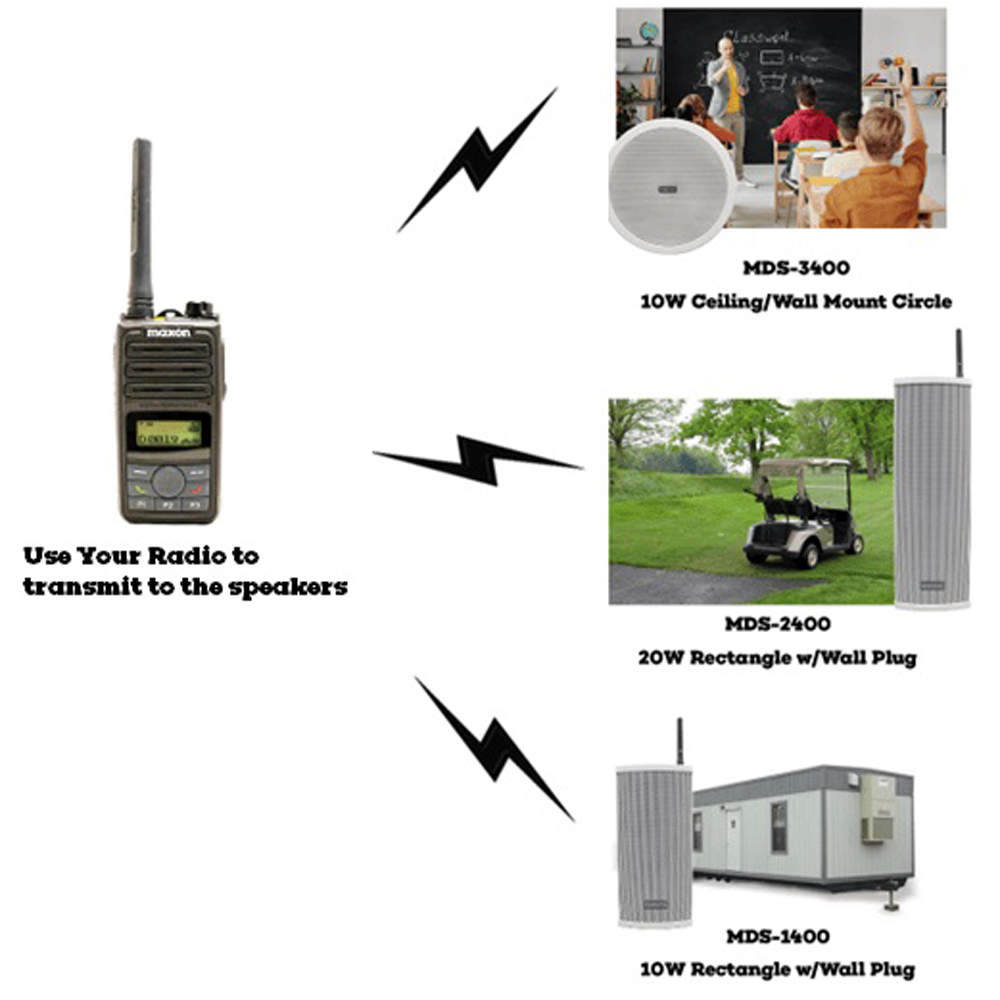

The Maxon MDS-2400 20W UHF DMR Digital Analog Radio Loudspeakers are wireless, programmable, receive only speakers designed for remote broadcasting and announcements using compatible analog or DMR Digital Tier 2 TDMA portable and mobile radios. Operating in the UHF band from 400 to 470 MHz, the system allows users to transmit audio to one speaker, selected speakers or all speakers within a building or designated area. Each system includes a speaker, a Bluetooth USB programming module for a PC, a plug in power supply that converts AC voltage to 12VDC and a nine hour backup battery for emergencies or portable use.

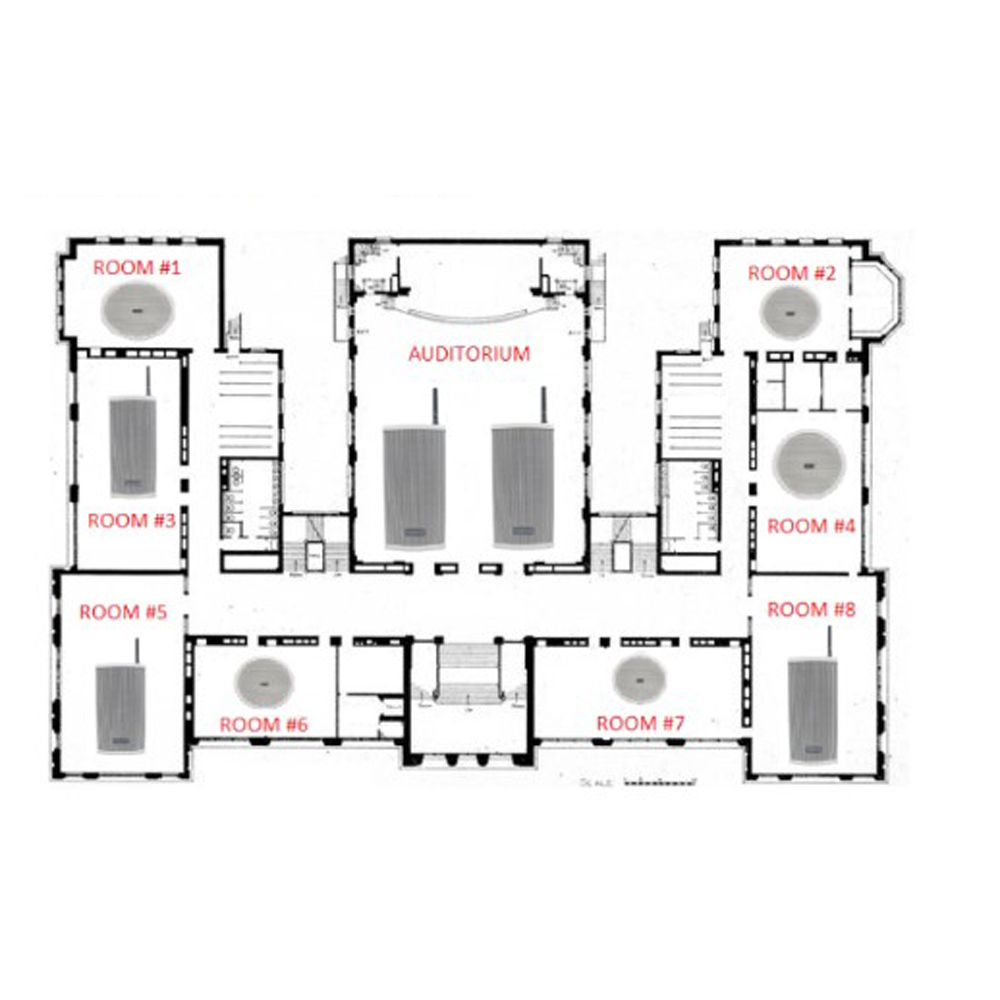

This Loudspeakers offer flexible installation options for different environments. In DMR digital mode, each speaker has a unique ID that supports individual, group or all call broadcasting and volume control. Analog setups use CTCSS or DCS codes alongside the radio frequency to distinguish speakers. The plug and play design avoids running wires through walls, making the system suitable for schools, factories, terminals, warehouses and other facilities.

Features:

• Receive-Only Wireless Radio Loudspeaker System
• Use any DMR Digital or Analog radio in 400-470 UHF band
• Unlimited # of Speakers & Portable Radios can be used together

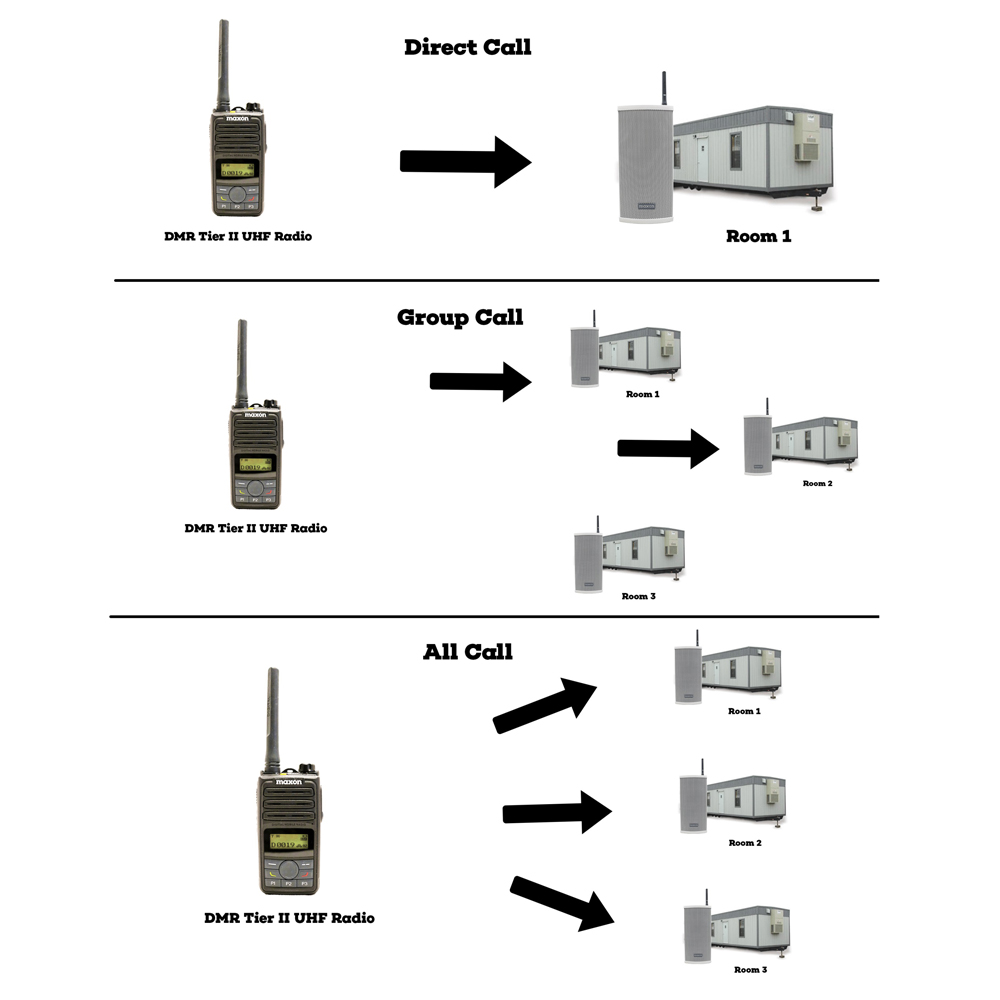

• When using multiple speakers, DMR Digital radio technology allows you to make PA Announcements to just one speaker, an "All Call" broadcast to every speaker at once, or create "Groups" to use only specific loudspeakers
• CTCSS/DCS can be used for Analog radios to access specific loudspeakers
• Send Alerts via your portable radio for Emergencies
• Program DMR / Analog / Mixed Mode per Channel w/CPS SW via Bluetooth PC Dongle (USB)
• Single Channel (Stores 32 additional Channels; Selectable via CPS SW)
• Channel Scanning (DMR/Analog/Mixed Mode)
• Control Volume with Programming Dongle or MDP Series Portable Radios
• Repeater Ready
• Backup Battery Included (12 hours) for outages or portability
• 20W mountable bookshelf size (AC 110V Wall Plug)

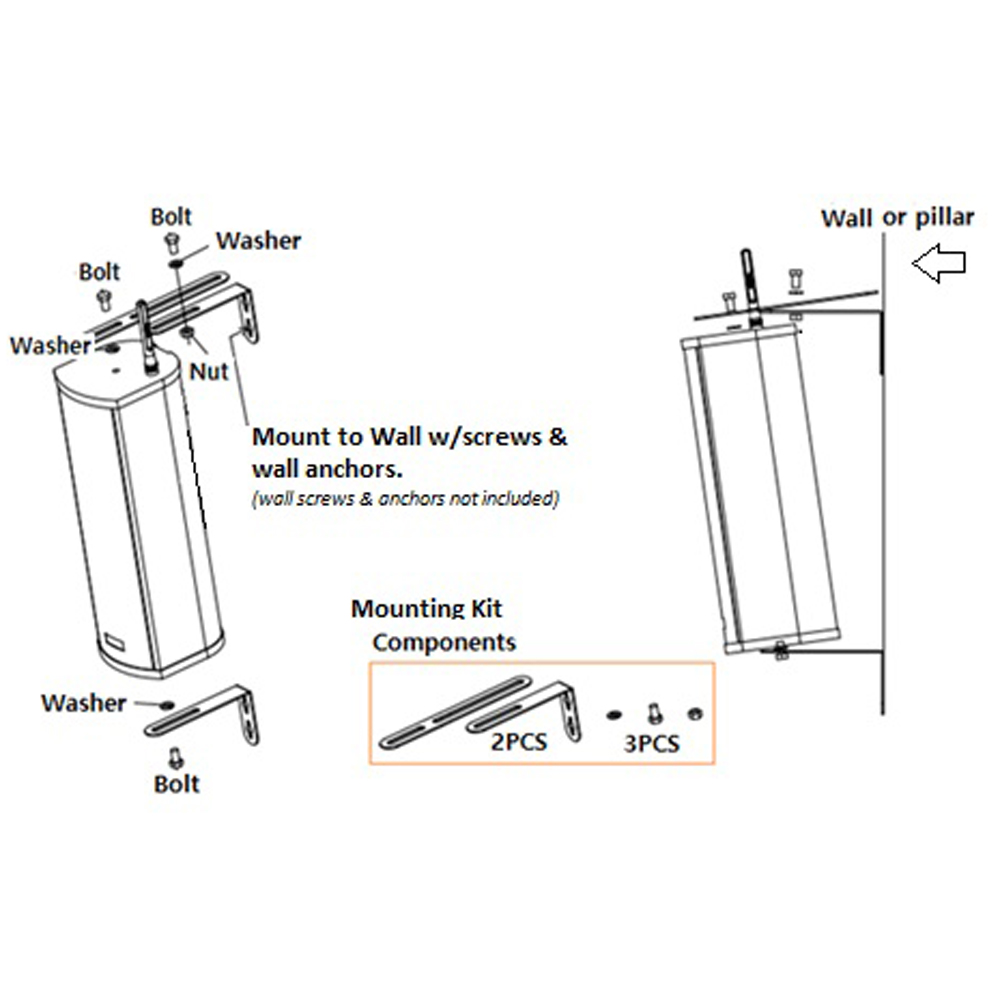

• Includes basic mounting brackets for wall or ceiling installation
• Bluetooth Dongle And Programming Software Sold Separately

Click Here To Download: Specification Sheet

Click Here To Download: User Manual
